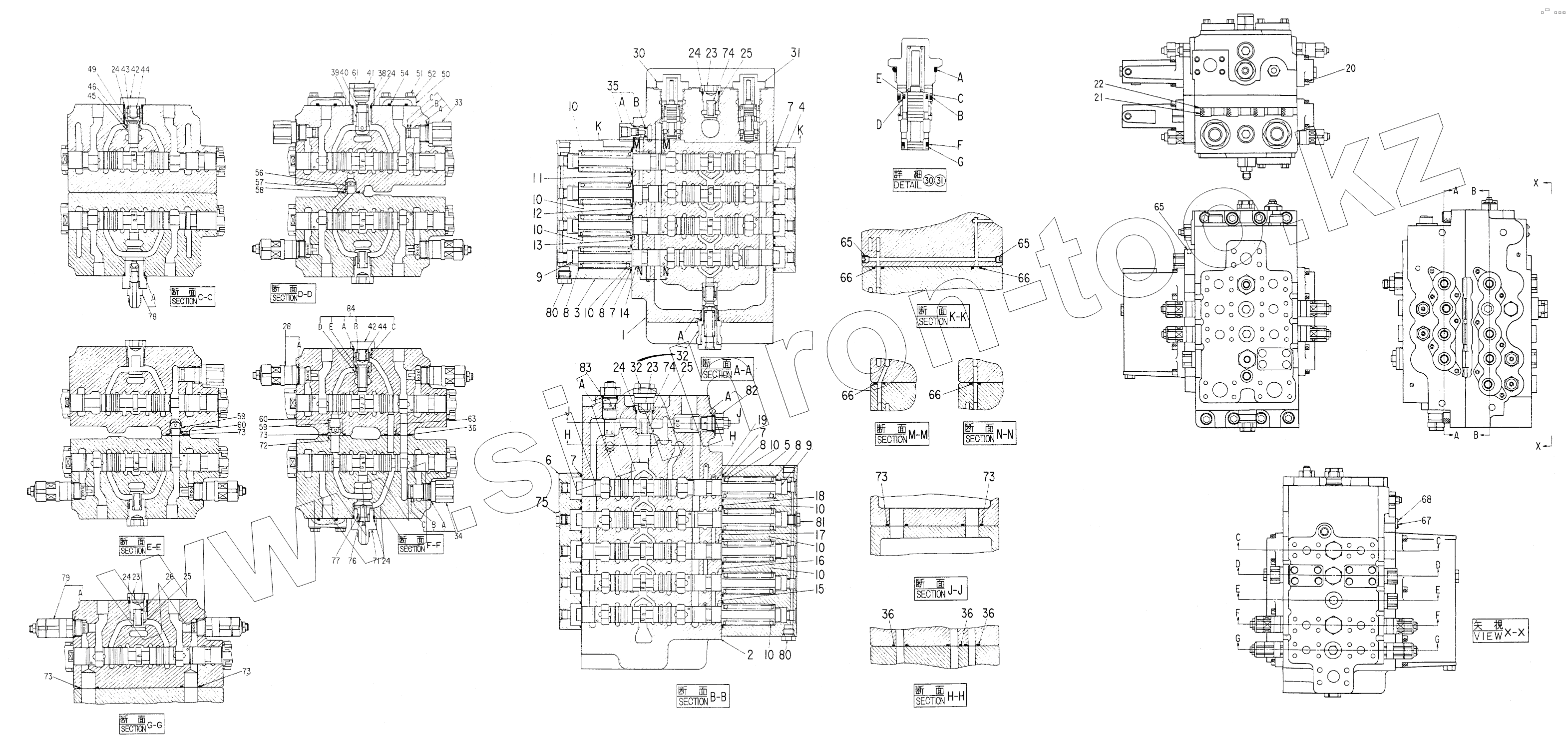

Каталог запасных частей к технике: Hitachi Компоненты EX-200. VALVE, CONTROL

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
4242649
4257232
4251808
4282906
RING
RING
O-RING
O-RING
O-RING
RING
O-RING
RING
0111715
4257233
O-RING
RING
O-RING
4257234
O-RING
O-RING
4257235
O-RING
O-RING
0111715
4257232
4257232
4257232
0111715
0125107
4237926
4250558
4237925
4250559
4237927
1
2
3
4
5
6
7
7
7
7
8
8
8
8
9
9
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
24
24
24
24
24
24
25
25
25
26
28
30
30
30
30
31
31
32
32
33
34
35
36
36
36
36
38
39
40
41
42
42
43
44
44
45
46
49
50
51
52
54
56
57
58
59
59
60
60
61
63
65
65
65
66
66
66
66
67
68
71
72
73
73
73
73
73
73
74
74
75
76
77
78
79
80
80
81
82
83
84
84
Позиция на иллюстрации Заводской номер детали Название детали
4242649 4242649 VALVE, CONTROL
4257232 4257232 O-RING
4251808 4251808 SEAL ASSY
4282906 4282906 SEAL ASSY
RING RING RING
RING RING RING
O-RING O-RING O-RING
4251808 4251808 SEAL ASSY
4282906 4282906 SEAL ASSY
O-RING O-RING O-RING
O-RING O-RING O-RING
RING RING RING
O-RING O-RING O-RING
RING RING RING
0111715 0111715 O-RING
4257233 4257233 KIT, SEAL
O-RING O-RING O-RING
RING RING RING
O-RING O-RING O-RING
4257234 4257234 КIТ, SЕАL
O-RING O-RING O-RING
O-RING O-RING O-RING
4257235 4257235 KIT, SEAL
O-RING O-RING O-RING
O-RING O-RING O-RING
0111715 0111715 O-RING
4257232 4257232 O-RING
4257232 4257232 O-RING
4257232 4257232 O-RING
0111715 0111715 O-RING
0125107 0125107 POPPET
4237926 4237926 SLEEVE
4250558 4250558 SLEEVE
4237925 4237925 POPPET
4250559 4250559 POPPET
4237927 4237927 SPRING
1 HOUSING HOUSING
2 HOUSING HOUSING
3 0309701 CAP
4 0309702 CAP
5 0309703 CAP
6 0309704 CAP
7 A810040 O-RING
8 0306003 SEAT
9 0306005 END
10 0309705 SPRING
11 SPOOL SPOOL
12 SPOOL SPOOL
13 SPOOL SPOOL
14 SPOOL SPOOL
15 SPOOL SPOOL
16 SPOOL SPOOL
17 SPOOL SPOOL
18 SPOOL SPOOL
19 SPOOL SPOOL
20 0224408 BOLT, SOCKET
21 0309602 BOLT, SOCKET
22 0309603 WASHER
23 0224411 PLUG
24 0111715 O-RING
25 0111711 POPPET
26 0224410 SPRING
28 4228353 VALVE, RELIEF
30 0309707 VALVE
30 4278304 VALVE
30 4282693 VALVE
31 0309708 VALVE
32 0309709 VАLVЕ, RЕLIЕF
33 0309710 PLUG ASSY
34 0309711 РLUG АSSY
35 0309712 PLUG ASSY
36 4226442 O-RING
38 0309713 PLUG
39 0309714 POPPET
40 0309715 SPRING
41 0309716 PLUG
42 0309717 PLUG
43 0125107 POPPET
44 0125108 SPRING
45 0309718 POPPET
46 0309719 SPRING
49 0309721 SLEEVE
50 0309733 PLATE
51 0224423 BOLT
52 А590910 WASHER, SPRING
54 0224422 O-RING
56 0309604 POPPET
57 0309605 SPRING
58 4226443 O-RING
59 0309608 POPPET
60 0309606 SPRING
61 4506424 O-RING
63 4226444 O-RING
65 94-2010 PLUG
66 4226445 O-RING
67 NAME-PLATE NAME-PLATE
68 SСRЕW SСRЕW, DRIVЕ
71 0309601 PLUG
72 0309607 SEAT
73 4226446 O-RING
74 0309728 SPRING
75 0218607 PLUG ASSY
76 0309729 POPPET
77 0224413 SPRING
78 0309730 VALVE, CHECK
79 4228354 VALVE, RELIEF
80 0309731 PLUG ASSY
81 0309732 PLUG ASSY
82 4239965 VALVE, RELIEF
83 4242176 VАLVЕ, RЕLIЕF
84 4239608 VALVE, CHECK
84 4250560 VALVE, CHECK
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
