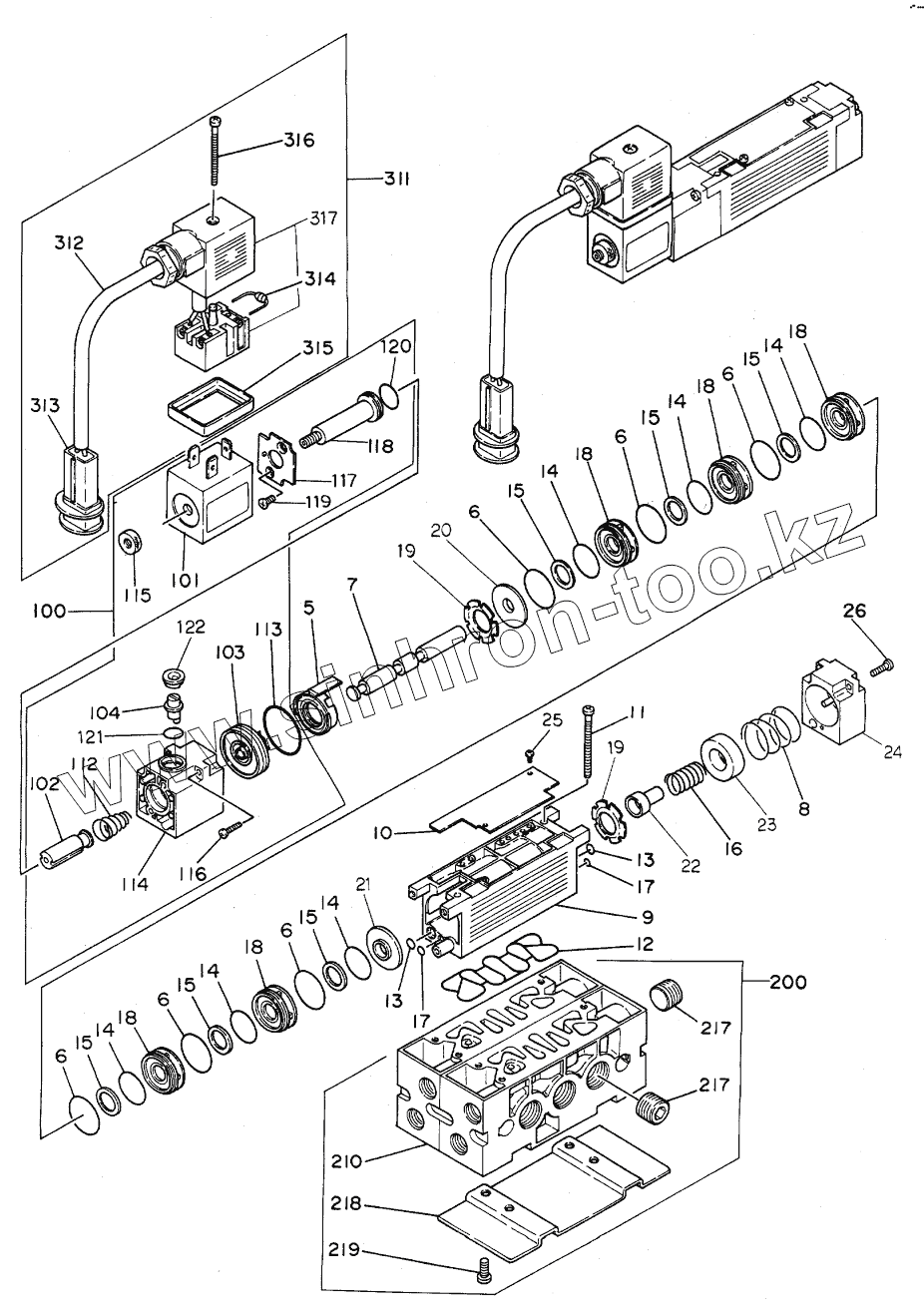

Каталог запасных частей к технике: Hitachi Компоненты EX-160WD. VALVE, SOLENOID
0266201
4172139
5
6
6
6
6
6
6
7
8
9
10
11
12
13
13
14
14
14
14
14
14
15
15
15
15
15
15
16
17
17
18
18
18
18
18
19
19
20
21
22
23
24
25
26
100
101
102
103
104
112
113
114
115
116
117
118
119
120
121
122
200
210
217
217
218
219
311
312
313
314
315
316
317
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0266201 | 0266201 | BODY ASSY | |
| 4172139 | 4172139 | VALVE, SOLENOID | |
| 5 | PLATE | PLATE | |
| 6 | O-RING | O-RING | |
| 7 | SPOOL | SPOOL | |
| 8 | SPRING | SPRING | |
| 9 | BODY | BODY | |
| 10 | PLATE | PLATE | |
| 11 | BOLT | BOLT | |
| 12 | PACKING | PACKING | |
| 13 | O-RING | O-RING | |
| 14 | O-RING | O-RING | |
| 15 | RING,T | RING, T | |
| 16 | SPRING | SPRING | |
| 17 | O-RING | O-RING | |
| 18 | COLLAR | COLLAR | |
| 19 | RING | RING | |
| 20 | RING | RING | |
| 21 | RING | RING | |
| 22 | GUIDE | GUIDE | |
| 23 | GUIDE | GUIDE | |
| 24 | COVER | COVER | |
| 25 | BOLT | BOLT | |
| 26 | BOLT | BOLT | |
| 100 | 0266202 | COIL ASSY | |
| 101 | COIL | COIL | |
| 102 | PLUNGER | PLUNGER | |
| 103 | PISTON | PISTON | |
| 104 | BUTTON | BUTTON | |
| 112 | SPRING | SPRING | |
| 113 | O-RING | O-RING | |
| 114 | COVER | COVER | |
| 115 | NUT | NUT | |
| 116 | BOLT | BOLT | |
| 117 | PLATE | PLATE | |
| 118 | SHIELD | SHIELD | |
| 119 | BOLT | BOLT | |
| 120 | O-RING | O-RING | |
| 121 | O-RING | O-RING | |
| 122 | BRG. | BRG. | |
| 200 | 0266203 | BASE ASSY | |
| 210 | BASE | BASE | |
| 217 | PLUG | PLUG | |
| 218 | BRACKET | BRACKET | |
| 219 | BOLT | BOLT | |
| 311 | 0266204 | CONNECTOR ASSY | |
| 312 | CABLE | CABLE | |
| 313 | CONNECTOR | CONNECTOR | |
| 314 | DIODE | DIODE | |
| 315 | GASKET | GASKET | |
| 316 | BOLT | BOLT | |
| 317 | CONNECTOR | CONNECTOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
