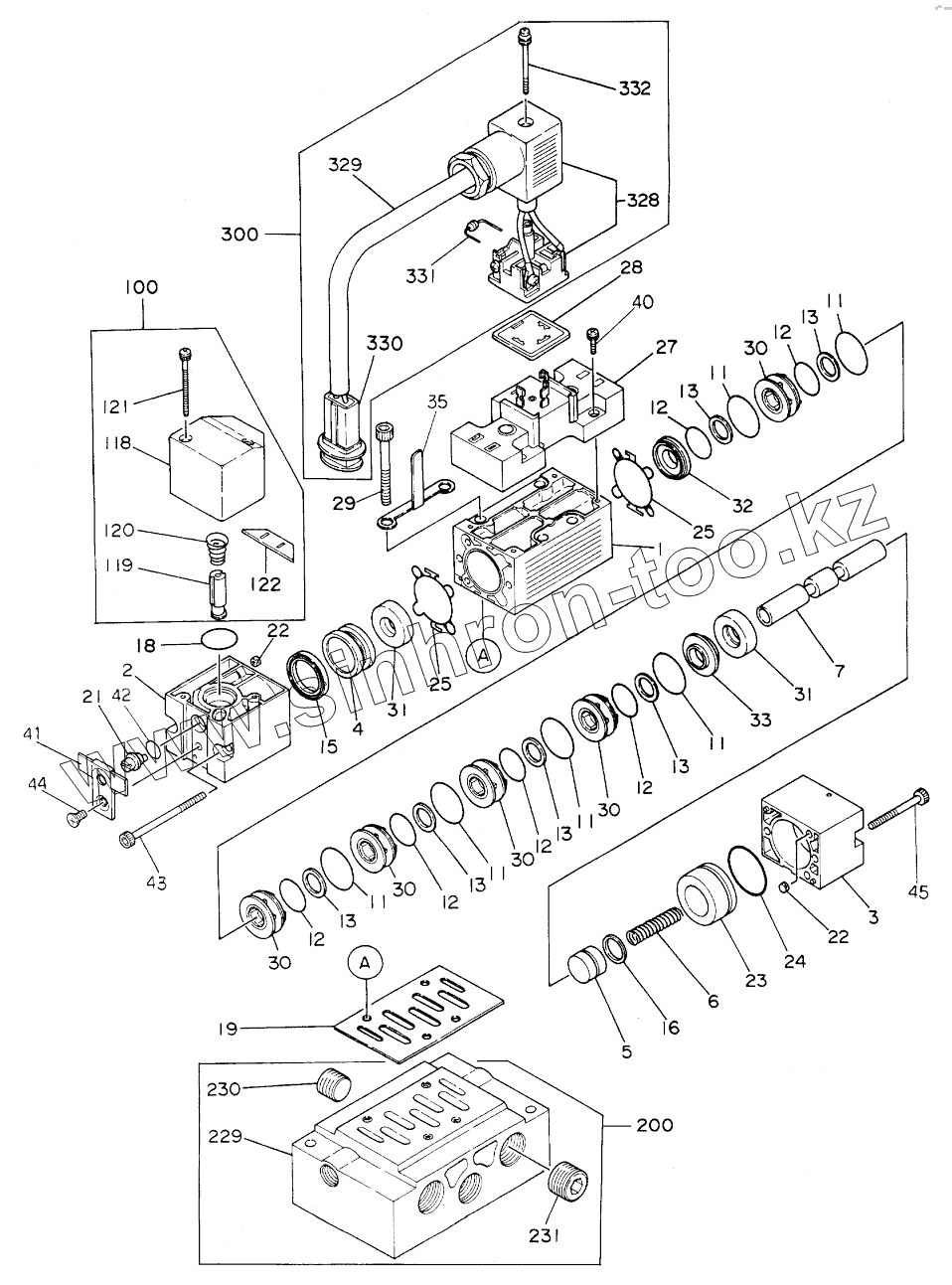

Каталог запасных частей к технике: Hitachi Компоненты EX-160WD. VALVE, SOLENOID
0266301
4151536
1
2
3
4
5
6
7
11
11
11
11
11
11
12
12
12
12
12
12
13
13
13
13
13
13
15
16
18
19
21
22
22
23
24
25
25
27
28
29
30
30
30
30
30
31
31
32
33
35
40
41
42
43
44
45
100
118
119
120
121
122
200
229
230
231
300
328
329
330
331
332
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0266301 | 0266301 | BODY ASSY | |
| 4151536 | 4151536 | VALVE, SOLENOID | |
| 1 | BODY | BODY | |
| 2 | COVER | COVER | |
| 3 | COVER | COVER | |
| 4 | PISTON | PISTON | |
| 5 | PISTON | PISTON | |
| 6 | SPRING | SPRING | |
| 7 | SPOOL | SPOOL | |
| 11 | O-RING | O-RING | |
| 12 | O-RING | O-RING | |
| 13 | RING,T | RING, T | |
| 15 | PACKING | PACKING | |
| 16 | PACKING | PACKING | |
| 18 | O-RING | O-RING | |
| 19 | SEAT | SEAT | |
| 21 | BUTTON | BUTTON | |
| 22 | FILTER | FILTER | |
| 23 | SLEEVE | SLEEVE | |
| 24 | O-RING | O-RING | |
| 25 | GASKET | GASKET | |
| 27 | PLATE | PLATE | |
| 28 | GASKET | GASKET | |
| 29 | BOLT | BOLT | |
| 30 | COLLAR | COLLAR | |
| 31 | RING | RING | |
| 32 | RING | RING | |
| 33 | RING | RING | |
| 35 | TERMINAL | TERMINAL | |
| 40 | BOLT | BOLT | |
| 41 | PLATE | PLATE | |
| 42 | O-RING | O-RING | |
| 43 | BOLT | BOLT | |
| 44 | BOLT | BOLT | |
| 45 | BOLT | BOLT | |
| 100 | 0266302 | COIL ASSY | |
| 118 | SOLENOID | SOLENOID | |
| 119 | PLUNGER | PLUNGER | |
| 120 | SPRING | SPRING | |
| 121 | BOLT | BOLT | |
| 122 | PACKING | PACKING | |
| 200 | 0266303 | BASE ASSY | |
| 229 | BASE | BASE | |
| 230 | PLUG | PLUG | |
| 231 | PLUG | PLUG | |
| 300 | 0266304 | CONNECTOR ASSY | |
| 328 | CONNECTOR | CONNECTOR | |
| 329 | CABLE | CABLE | |
| 330 | CONNECTOR | CONNECTOR | |
| 331 | DIODE | DIODE | |
| 332 | BOLT | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
