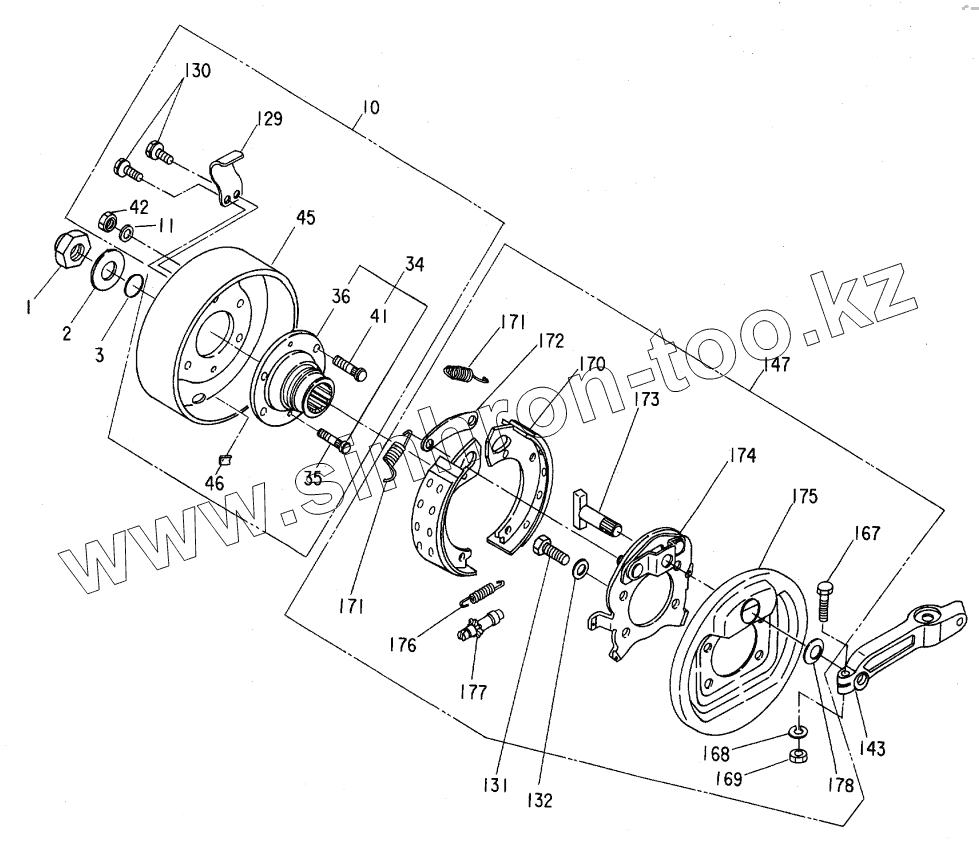

Каталог запасных частей к технике: Hitachi Компоненты EX-160WD. PARKING BRAKE
PARKINGBRAKE
1
2
3
10
11
34
35
36
41
42
45
46
46
46
46
46
46
129
130
131
132
143
147
167
168
169
170
171
171
172
173
174
175
176
177
178
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| PARKINGBRAKE | PARKINGBRAKE | PARKING BRAKE | |
| 1 | 0266503 | NUT, LOCK | |
| 2 | 0268401 | WASHER | |
| 3 | 0268402 | O-RING | |
| 10 | 0366901 | BRAKE DRUM ASSY | |
| 11 | 0326517 | WASHER, SPRING | |
| 34 | FLANGEASSY | FLANGE ASSY | |
| 35 | BOLT | BOLT | |
| 36 | FLANGE | FLANGE | |
| 41 | BOLT | BOLT | |
| 42 | 0266757 | NUT | |
| 45 | DRUM | DRUM | |
| 46 | WEIGHT5G | WEIGHT 5G | |
| 46 | WEIGHT10G | WEIGHT 10G | |
| 46 | WEIGHT15G | WEIGHT 15G | |
| 46 | WEIGHT20G | WEIGHT 20G | |
| 46 | WEIGHT25G | WEIGHT 25G | |
| 46 | WEIGHT30G | WEIGHT 30G | |
| 129 | 0366904 | COVER | |
| 130 | 0366905 | BOLT | |
| 131 | 0366902 | BOLT | |
| 132 | 0326516 | WASHER, PLANE | |
| 143 | 0366906 | LEVER | |
| 147 | 0366903 | PARKING BRAKE ASSY | |
| 167 | 0366907 | BOLT | |
| 168 | 0266645 | WASHER, SPRING | |
| 169 | 0366908 | NUT | |
| 170 | 0366909 | SHOE ASSY | |
| 171 | 0366910 | SPRING | |
| 172 | 0366911 | BRACE | |
| 173 | 0366912 | SHAFT | |
| 174 | 0366913 | PLATE | |
| 175 | 0366914 | COVER | |
| 176 | 0366915 | SPRING | |
| 177 | 0366916 | SCREW | |
| 178 | 0366917 | WASHER, PLANE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
