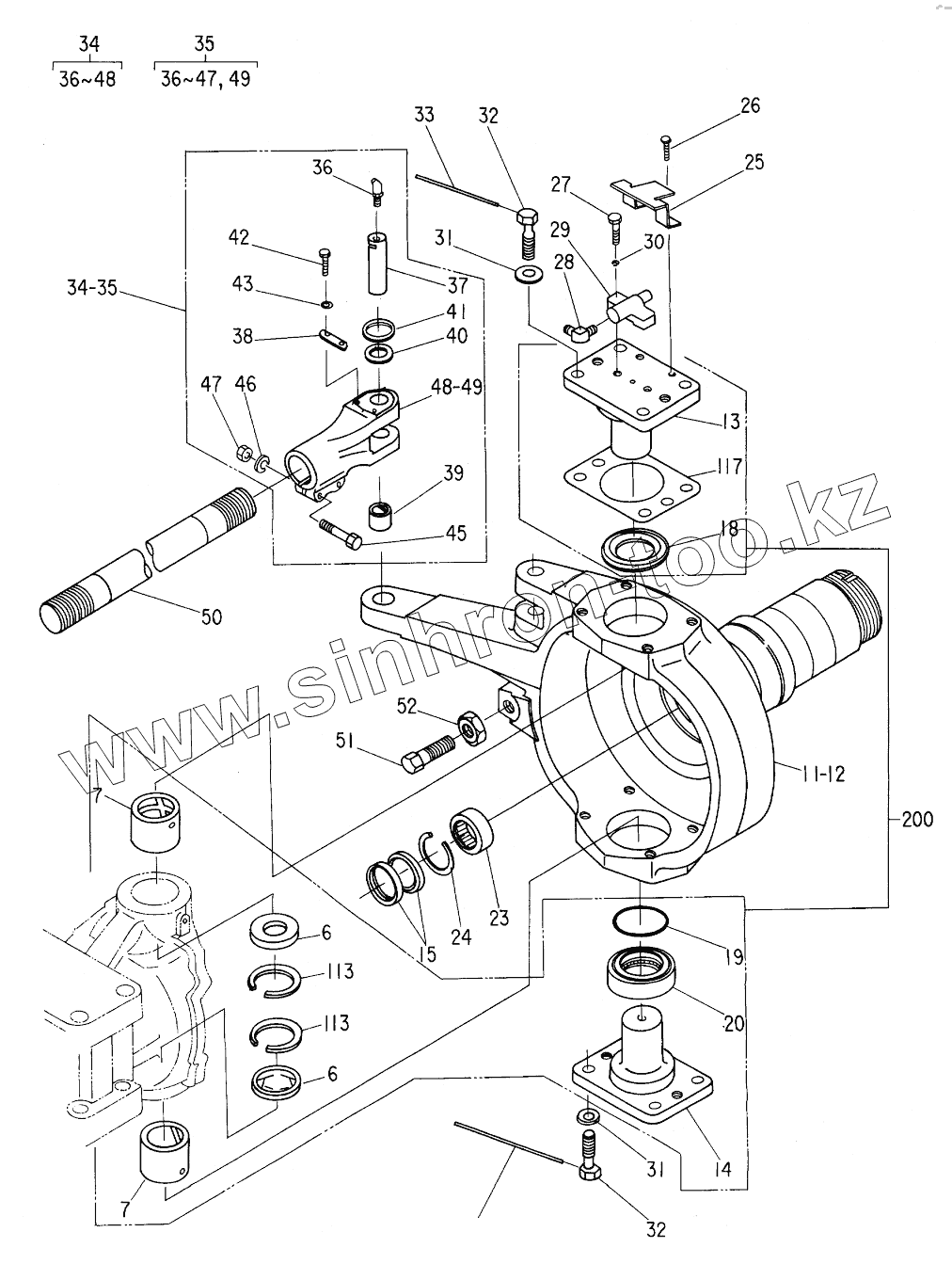

Каталог запасных частей к технике: Hitachi Компоненты EX-160WD. KNUCKLE
4240272
6
6
7
7
11
12
13
14
15
18
19
20
23
24
25
26
27
28
29
30
31
31
32
32
33
34
34
35
35
36
36
36
37
38
39
40
41
42
43
45
46
47
47
48
48
49
49
50
51
52
113
113
117
117
117
117
117
117
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4240272 | 4240272 | KNUCKLE | |
| 6 | 0362526 | PLUG | |
| 7 | BUSHING | BUSHING | |
| 11 | 0362501 | KNUCKLE, RH | |
| 12 | 0362502 | KNUCKLE, LH | |
| 13 | king-pin | KING-PIN | |
| 14 | king-pin | KING-PIN | |
| 15 | 0266403 | SEAL, OIL | |
| 18 | WASHER | WASHER | |
| 19 | 0266549 | O-RING | |
| 20 | BRG | BRG., THRUST | |
| 23 | 0266508 | BRG, NEEDLE | |
| 24 | 0266509 | RING, RETAINING | |
| 25 | 0362503 | COVER | |
| 26 | 0362504 | BOLT | |
| 27 | 0362505 | BOLT | |
| 28 | 0362525 | ELBOW | |
| 29 | 0362506 | JOINT | |
| 30 | 0362507 | WASHER, SPRING | |
| 31 | 0266529 | WASHER | |
| 32 | 0266517 | BOLT | |
| 33 | 0362508 | WIRE | |
| 34 | 0362509 | ROD ASSY, RH | |
| 35 | 0362510 | ROD ASSY, LH | |
| 36 | 0362511 | FITTING | |
| 37 | 0362512 | PIN | |
| 38 | 0362513 | PLATE, LOCK | |
| 39 | 0362514 | BUSHING | |
| 40 | 0362515 | WASHER, THRUST | |
| 41 | 0362516 | SEAL, DUST | |
| 42 | 0362517 | BOLT | |
| 43 | 0362507 | WASHER, SPRING | |
| 45 | 0362518 | BOLT | |
| 46 | 0266643 | WASHER, SPRING | |
| 47 | 0362520 | NUT | |
| 48 | 0362521 | END, ROD | |
| 49 | 0362522 | END, ROD | |
| 50 | 0266522 | ROD, TIE | |
| 51 | 0266523 | BOLT | |
| 52 | 0362523 | NUT | |
| 113 | 0362527 | RING, RETAINING | |
| 117 | SHIM-SET | SHIM-SET | |
| 117 | SHIM | SHIM | |
| 117 | SHIM | SHIM | |
| 117 | SHIM | SHIM | |
| 117 | SHIM | SHIM | |
| 117 | SHIM | SHIM | |
| 200 | 0362524 | KIT, KING-PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
