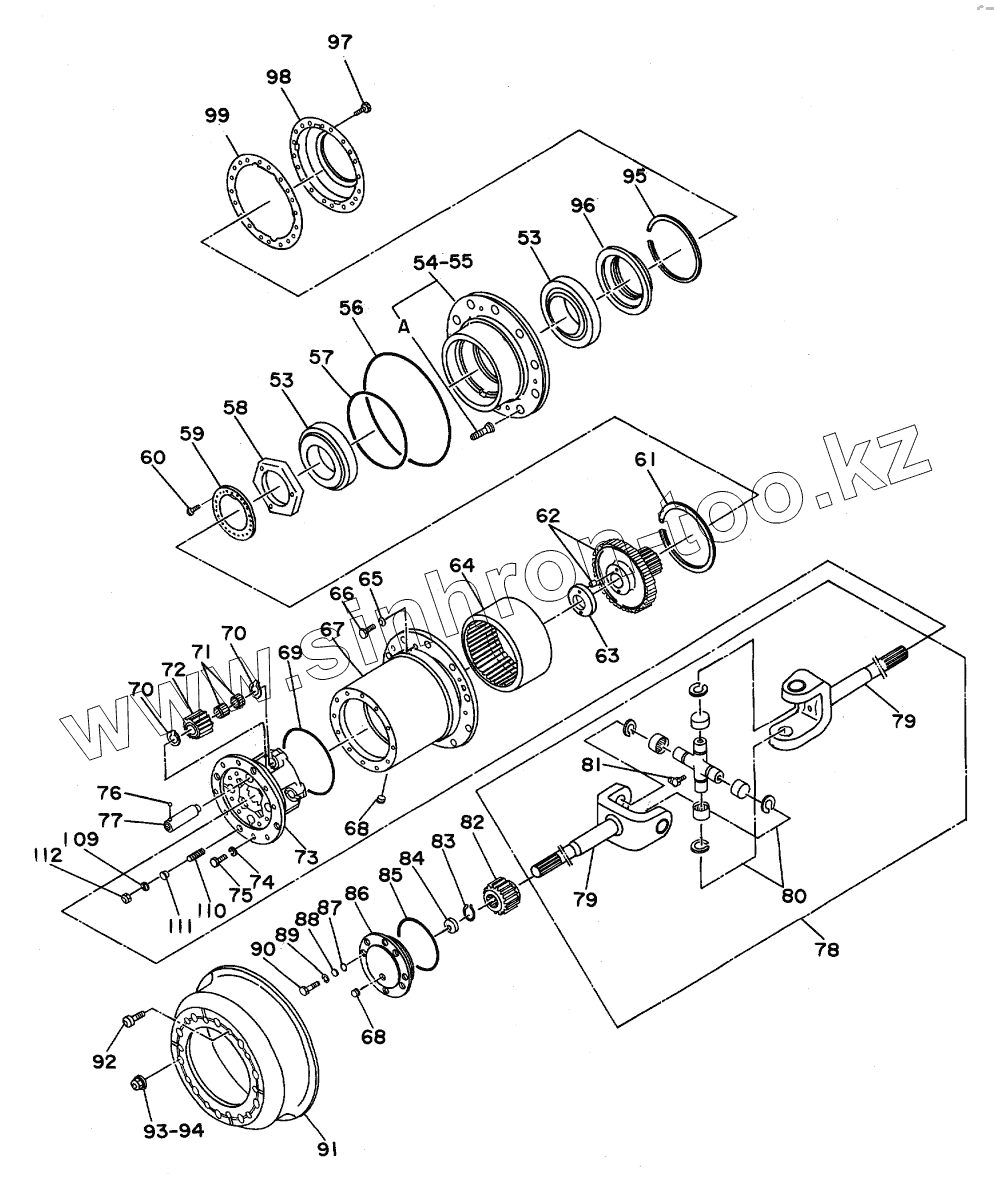

Каталог запасных частей к технике: Hitachi Компоненты EX-160WD. HUB REDUCTION (FRONT)
4240274
0266759
0266758
53
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
68
69
70
70
71
72
73
74
75
76
77
78
79
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
109
110
111
112
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4240274 | 4240274 | HUB REDUCTION | |
| 0266759 | 0266759 | WHEEL PIN, LH | |
| 0266758 | 0266758 | WHEEL PIN, RH | |
| 53 | 0266701 | BRG. | |
| 54 | 0266750 | HUB, RH | |
| 55 | 0266751 | HUB, LH | |
| 56 | 0266704 | O-RING | |
| 57 | 0266705 | O-RING | |
| 58 | 0266706 | NUT, BRG. | |
| 59 | 0266707 | WASHER, LOCK | |
| 60 | 0362701 | BOLT, SEMS | |
| 61 | 0266709 | RING, RETAINING | |
| 62 | 0362702 | GEAR, INTERNAL | |
| 63 | 0266711 | SPACER | |
| 64 | 0266712 | GEAR, INTERNAL | |
| 65 | 0362507 | WASHER, SPRING | |
| 66 | 0266713 | BOLT | |
| 67 | 0266714 | CASE, PLANETARY | |
| 68 | 0266715 | PLUG | |
| 69 | 0266716 | O-RING | |
| 70 | 0266717 | RING, THRUST | |
| 71 | 0266718 | BRG., NEEDLE | |
| 72 | 0266719 | GEAR, PLANETARY | |
| 73 | 0266752 | CASE, GEAR | |
| 74 | 0362703 | WASHER, SPRING | |
| 75 | 0266722 | BOLT | |
| 76 | 0266723 | BALL | |
| 77 | 0266724 | SHAFT | |
| 78 | 0362704 | AXLE SHAFT ASSY | |
| 79 | 0362705 | YOKE | |
| 80 | 0362706 | JOURNAL ASSY | |
| 81 | 0362511 | FITTING | |
| 82 | 0266730 | GEAR, SUN | |
| 83 | 0266731 | RING, RETAINING | |
| 84 | 0266732 | STOPPER | |
| 85 | 0266733 | O-RING | |
| 86 | 0362707 | COVER | |
| 87 | 0266735 | O-RING | |
| 88 | 0268920 | WASHER | |
| 89 | 0362507 | WASHER, SPRING | |
| 90 | 0362708 | BOLT, COVER | |
| 91 | 0266753 | DRUM, BRAKE | |
| 92 | 0362709 | BOLT, SOCKET | |
| 93 | 0266740 | WHEEL NUT | |
| 94 | 0266741 | WHEEL NUT | |
| 95 | 0266744 | RING, RETAINING | |
| 96 | 0266745 | SEAL, OIL | |
| 97 | 0362710 | BOLT, SEMS | |
| 98 | 0266754 | COVER | |
| 99 | 0266748 | PACKING | |
| 109 | 0362703 | WASHER, SPRING | |
| 110 | 0266755 | STUD | |
| 111 | 0266756 | COLLAR, TAPER | |
| 112 | 0362711 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
