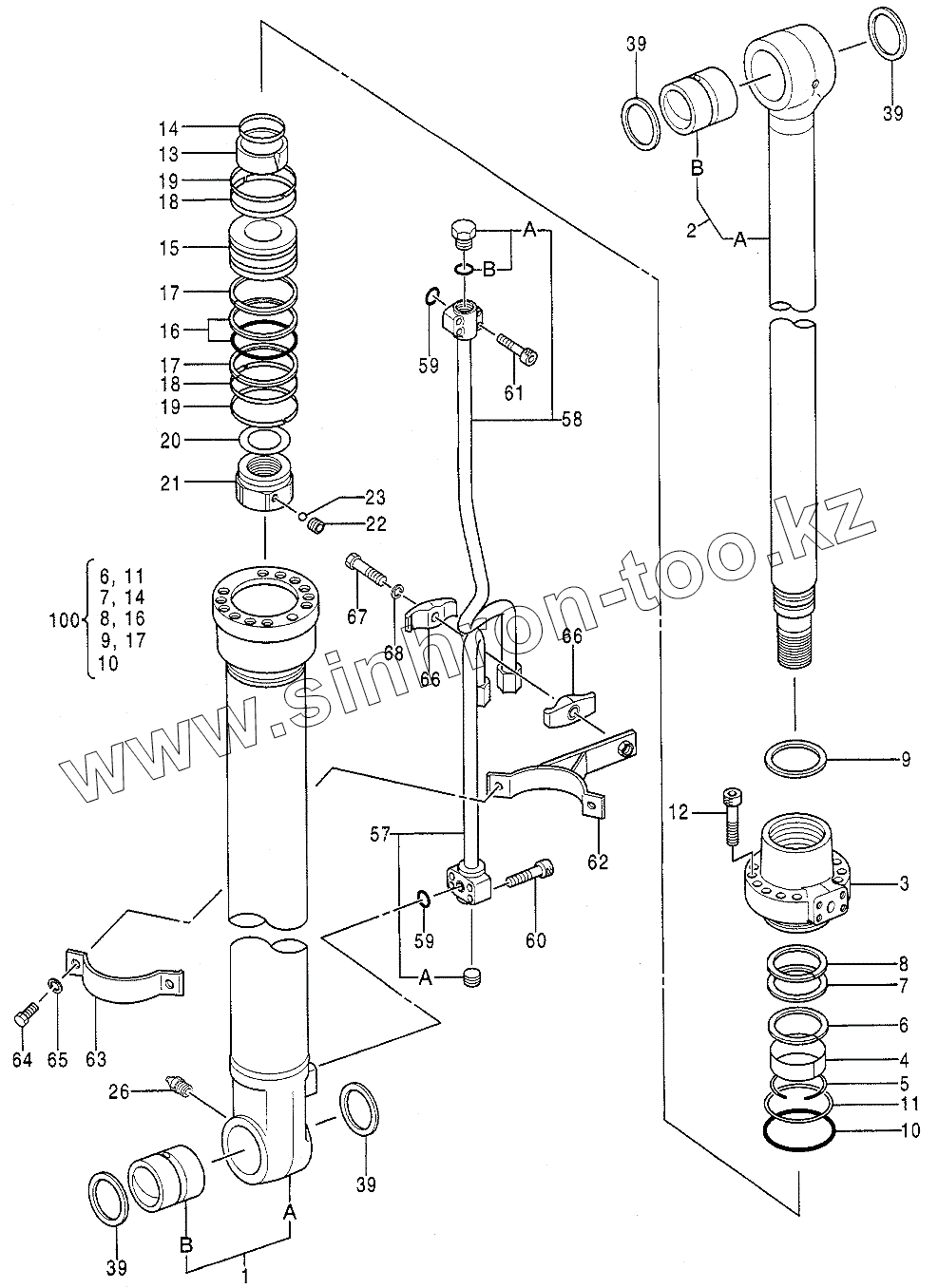

Каталог запасных частей к технике: Hitachi Компоненты EX-120-2. CYL., BOOM (L)
1
1A
1B
1B
2
2A
2B
3
4
5
6
6
7
7
8
8
9
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
26
39
39
39
39
57
57A
58
58A
58B
59
59
60
61
62
63
64
65
66
66
67
68
100
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4257643 | 4257643 | CYL., BOOM | |
| 4286457 | 4286457 | CYL. | |
| 1 | 4286458 | TUBE, CYL. ASSY | |
| 1A | 0408901 | TUBE, CYL. | |
| 1B | 0174516 | BUSHING | |
| 1B | 0408816 | BUSHING, PIN | |
| 2 | 4286456 | ROD, PISTON ASSY | |
| 2A | 0408802 | ROD, PISTON | |
| 2B | 0140808 | BUSHING | |
| 3 | 0408803 | HEAD, CYL. | |
| 4 | 0310304 | BUSHING, PIN | |
| 5 | 0271304 | RING, RETAINING | |
| 6 | 0408804 | RING | |
| 7 | 0271309 | PACKING, U-RING | |
| 8 | 0271310 | RING, BACK-UP | |
| 9 | 0271308 | RING, WIPER | |
| 9 | 0409503 | RING, WIPER | |
| 10 | А811100 | O-RING | |
| 11 | 0310506 | RING, BACK-UP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0408806 | BRG., CUSHION | |
| 14 | 0408807 | SEAL | |
| 15 | 0408808 | PISTION | |
| 16 | 0310508 | RING, SEAL | |
| 17 | 0408609 | RING, BACK-UP | |
| 18 | 0310509 | RING | |
| 19 | 0310510 | RING, SLIDE | |
| 20 | 0310514 | SHIM | |
| 21 | 0310511 | NUT | |
| 22 | 0309011 | SCREW, SET | |
| 23 | 0111707 | BALL, STEEL | |
| 26 | J75481 | FITTING, GREASE | |
| 39 | 0408810 | RING, WIPER | |
| 39 | 4084578 | SEAL, DUST | |
| 57 | 0408902 | PIPE | |
| 57A | 94-2013 | PLUG | |
| 58 | 0408903 | PIPE | |
| 58A | 4174541 | PLUG | |
| 58B | 4506418 | O-RING | |
| 59 | 4509181 | O-RING | |
| 60 | 0309019 | BOLT, SOCKET | |
| 61 | 0310310 | BOLT, SOCKET | |
| 62 | 0408814 | BAND | |
| 63 | 0310707 | BAND | |
| 64 | 408815 | BOLT | |
| 65 | 0325913 | WASHER | |
| 66 | 0310312 | HOLDER | |
| 67 | 0224115 | BOLT | |
| 68 | 0208516 | WASHER, SPRING | |
| 100 | 4266459 | KIT, SEAL | |
| 100 | 7320990 | KIT, SEAL |
