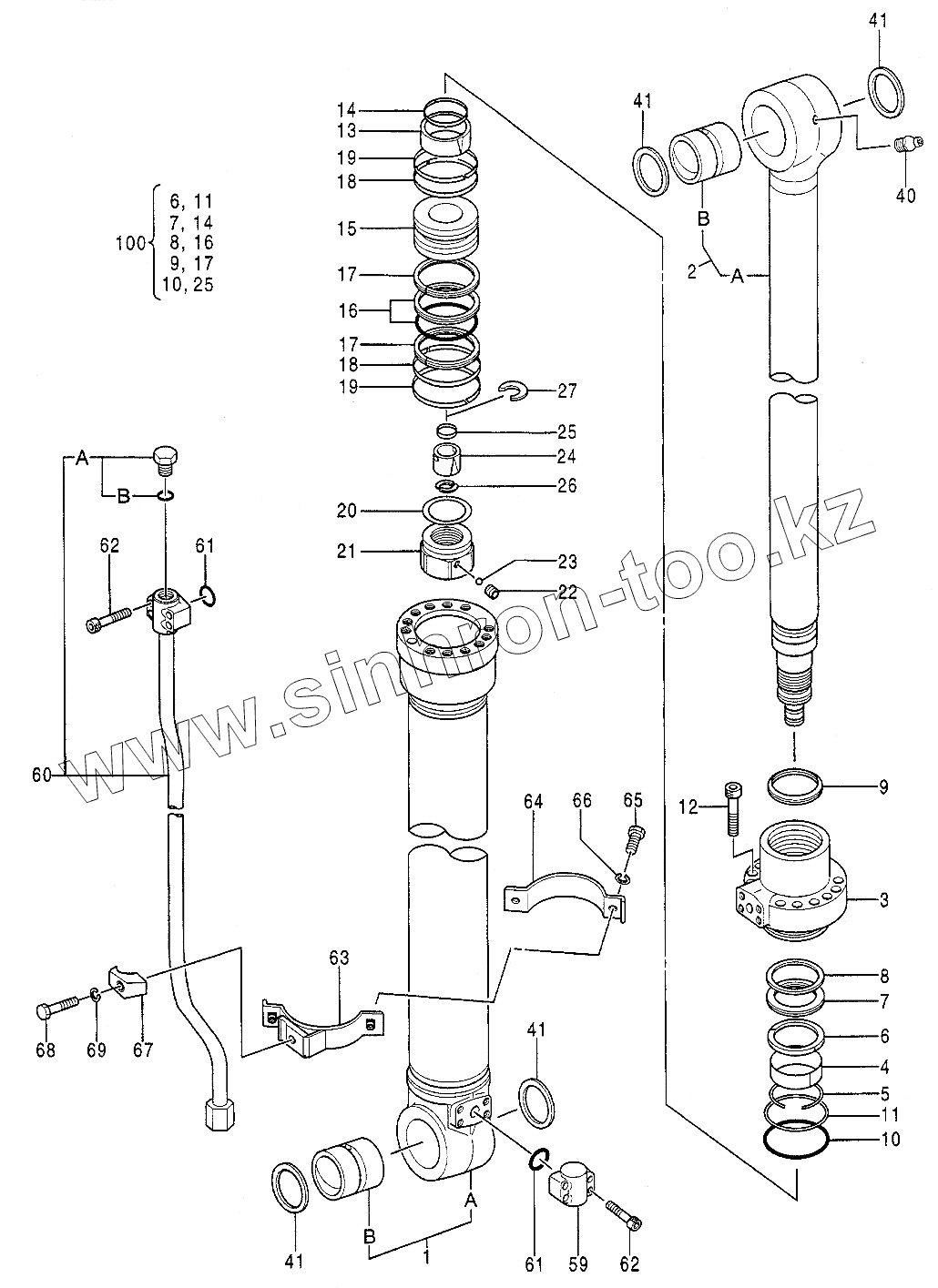

Каталог запасных частей к технике: Hitachi Компоненты EX-120-2. CYL., ARM
1
1A
1B
2
2A
2B
3
4
5
6
6
7
7
8
8
9
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
24
25
25
26
27
40
41
41
41
41
59
60
60A
60B
61
61
62
62
63
64
65
66
67
68
69
100
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4257644 | 4257644 | CYL., ARM | |
| 4286460 | 4286460 | CYL. | |
| 1 | 4286461 | TUBE, CYL. ASSY | |
| 1A | 0409001 | TUBE, CYL. | |
| 1B | 0140808 | BUSHING | |
| 2 | 4286462 | ROD, PISTON ASSY | |
| 2A | 0409002 | ROD, PISTON | |
| 2B | 0140808 | BUSHING | |
| 3 | 0409003 | HEAD, CYL. | |
| 4 | 0309304 | BUSHING | |
| 5 | 0208604 | RING, RETAINING | |
| 6 | 0409004 | RING | |
| 7 | 0208605 | PACKING, U-RING | |
| 8 | 0208606 | RING, BACK-UP | |
| 9 | 0208607 | RING WIPER | |
| 9 | 0409019 | RING, WIPER | |
| 10 | А811105 | O-RING | |
| 11 | 0298904 | RING, BACKUP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0409005 | BRG., CUSHION | |
| 14 | 0409006 | SEAL | |
| 15 | 0409007 | PISTON | |
| 16 | 0240915 | RING, SEAL ASS'Y | |
| 17 | 0409008 | RING, BACKUP | |
| 18 | 0409009 | RING | |
| 19 | 0298907 | RING, SLIDE | |
| 20 | 0409010 | SHIM | |
| 21 | 0409011 | NUT | |
| 22 | 0309011 | SCREW, SET | |
| 23 | 0111707 | BALL, STEEL | |
| 24 | 0409012 | BRG., CUSHION | |
| 25 | 0409013 | SEAL | |
| 26 | 0409014 | STOPPER | |
| 27 | 0409015 | RING | |
| 40 | 075481 | FITTING, GREASE | |
| 41 | 0408810 | RING, WIPER | |
| 41 | 4084578 | SEAL, DUST | |
| 59 | 0409016 | JOINT | |
| 60 | 0409017 | PIPE | |
| 60A | 4174542 | PLUG | |
| 60B | 4506424 | O-RING | |
| 61 | 4506430 | O-RING | |
| 62 | 0309019 | BOLT, SOCKET | |
| 63 | 0409018 | BAND | |
| 64 | 0327410 | BAND | |
| 65 | 0408815 | BOLT | |
| 66 | 0325913 | WASHER | |
| 67 | 0309021 | HOLDER | |
| 68 | 0309022 | BOLT | |
| 69 | 0208516 | WASHER, SPRING | |
| 100 | 4286463 | KIT, SEAL | |
| 100 | 4320993 | KIT, SEAL |
