Каталог запасных частей к технике: Hitachi Компоненты EX-120. VALVE, CONTROL

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
4176905
4506428
4506428
4506428
4263183
4506420
4506428
4506428
4506428
4506428
4506428
957366
1
2
3
3
3
4
4
4
5
5
5
5
6
6
6
6
7
7
7
7
7
7
7
7
8
9
9
10
10
10
11
11
13
13
14
15
16
17
18
19
19
20
20
20
20
20
20
21
21
21
21
22
23
23
23
23
23
24
24
24
24
24
25
25
25
25
25
25
26
27
27
27
27
27
27
27
28
28
28
28
28
28
28
29
29
29
29
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
32
33
34
35
36
37
38
38
38
39
41
42
43
44
45
46
47
48
49
50
51
52
61
61
62
63
64
65
66
67
68
69
69
70
70
71
71
71
71
71
71
71
71
71
76
77
81
82
83
84
91
92
93
94
95
95
95
95
95
96
96
96
96
96
97
101
101
101
101
102
102
102
102
103
103
103
103
103
103
103
103
104
104
104
104
105
105
105
105
110
110
110
111
111
113
113
113
113
114
114
115
116
116
117
118
119
120
126
126
126
126
126
126
126
126
127
128
129
130
130
130
131
131
131
131
131
132
132
132
132
132
132
133
134
134
134
134
134
135
135
135
135
136

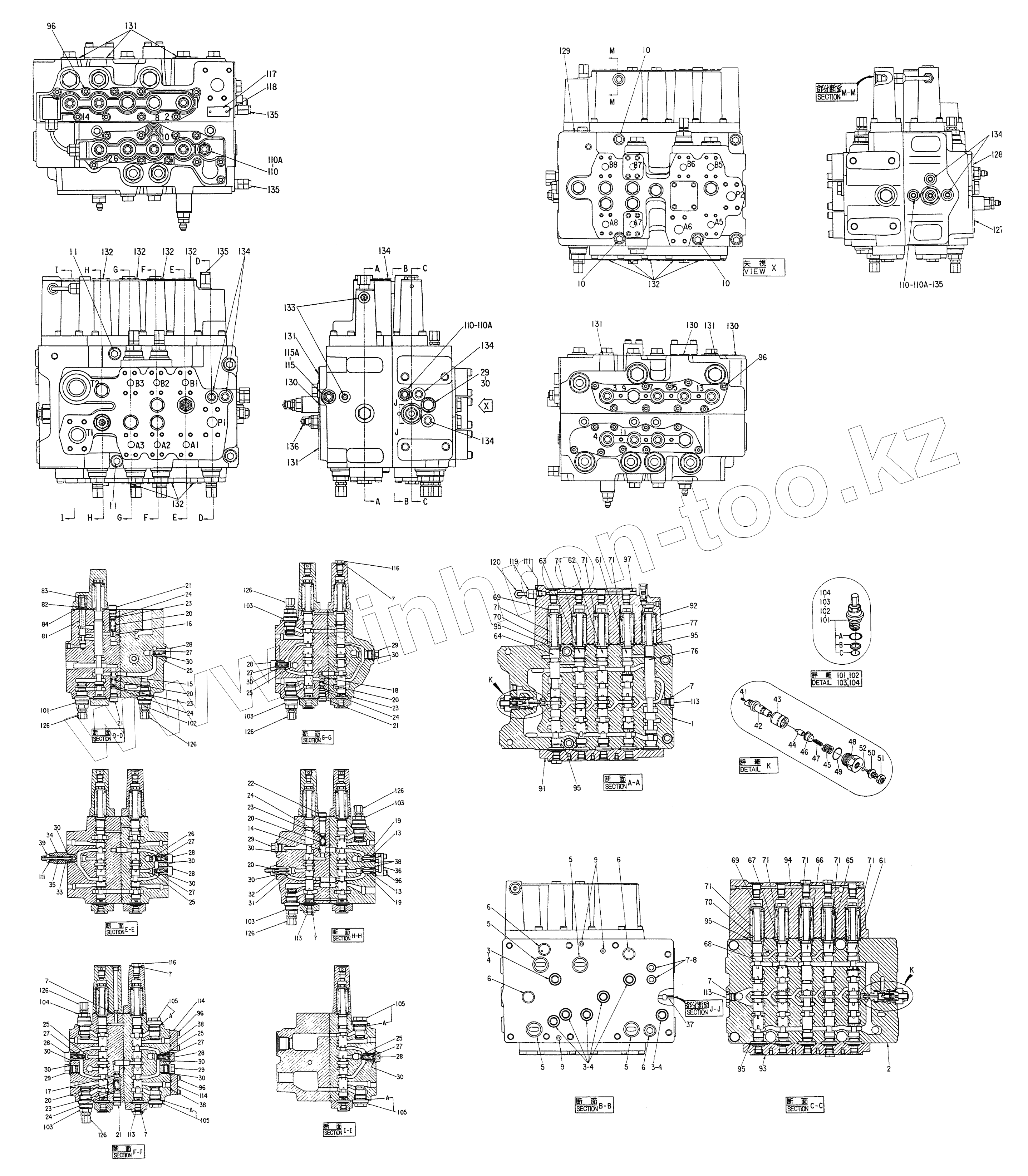

Позиция на иллюстрации Заводской номер детали Название детали
4176905 4176905 VALVE CONTROL
4506428 4506428 O-RING
4263183 4263183 RING, BACK-UP
4506420 4506420 O-RING
4506428 4506428 O-RING
4506428 4506428 O-RING
957366 957366 O-RING
1 H0USING HOUSING LOWER
2 HOUSING HOUSING
3 985099 O-RING
4 0309401 RING, BACK-UP
5 0309402 O-RING
6 4509181 O-RING
7 4509180 O-RING
8 0309403 RING, BACK-UP
9 4506407 O-RING
10 0309404 BOLT, SOCKET
11 0309405 BOLT, SOCKET
13 0309406 SPRING
14 0309407 VALVE
15 0309408 VALVE
16 0309409 VALVE
17 0309410 VALVE
18 0309411 VALVE
19 0309412 VALVE
20 0309413 SPRING
21 0309414 PLUG
22 0309415 PLUG
23 4506412 O-RING
24 0309416 RING, BACK-UP
25 0309417 VALVE
26 0309418 VALVE
27 0309419 SPRING
28 0309420 PLUG
29 0309421 PLUG
30 0309422 O-RING
31 0309423 VALVE
32 0309424 ADAPTER
33 0309425 VALVE
34 0309501 ADAPTER
35 0309427 SPRING
36 0309502 PLATE
37 EXPANDER EXPANDER
38 4506420 O-RING
39 0309429 ADAPTER
41 0309430 SCREW
42 0309431 VALVE
43 0309432 BUSHING
44 0309433 VALVE
45 0309434 SPRING
46 0309435 SEAT
47 0309436 SPRING
48 0309437 BODY
49 0209322 O-RING
50 0309438 SCREW
51 0309439 NUT
52 0309440 O-RING
61 SPOOL SPOOL
62 SPOOL SPOOL
63 SPOOL SPOOL
64 SPOOL SPOOL
65 SPOOL SPOOL
66 SPOOL SPOOL
67 SPOOL SPOOL
68 SPOOL SPOOL
69 0309441 BOLT
70 0309442 SEAT
71 0309443 SPRING
76 0309444 SPOOL
77 0309445 SPRING
81 0309446 SPOOL
82 0309447 WASHER
83 0309448 SPRING
84 0309449 O-RING
91 0309450 HOUSING
92 0309451 HOUSING
93 0309452 HOUSING
94 0309453 HOUSING
95 0309454 O-RING
96 0309455 BOLT, SOCKET
97 0309456 PLUG
101 0309457 VALVE, RELIEF
101 0357602 VALVE, RELIEF
102 0309458 VALVE, RELIEF
102 0309470 VALVE, RELIEF
103 0309459 VALVE
103 0357604 VALVE
104 0309460 VALVE
104 0357605 VALVE
105 0309461 PLUG ASS'Y
110 0309462 ADAPTER
111 957366 O-RING
113 0309463 PLUG
114 0309464 PLATE
115 0309465 ADAPTER
116 0309466 PLUG
117 NAME-PLATE NAME-PLATE
118 NAIL NAIL
119 ADAPTER PLATE, ADAPTER
120 PIPEASSY PIPE ASSY
126 TUBE TUBE
127 SHEET SHEET
128 SHEET SHEET
129 SHEET SHEET
130 SHEET SHEET
131 SHEET SHEET
132 SHEET SHEET
133 SHEET SHEET
134 SHEET SHEET
135 SHEET SHEET
136 SHEET SHEET
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
