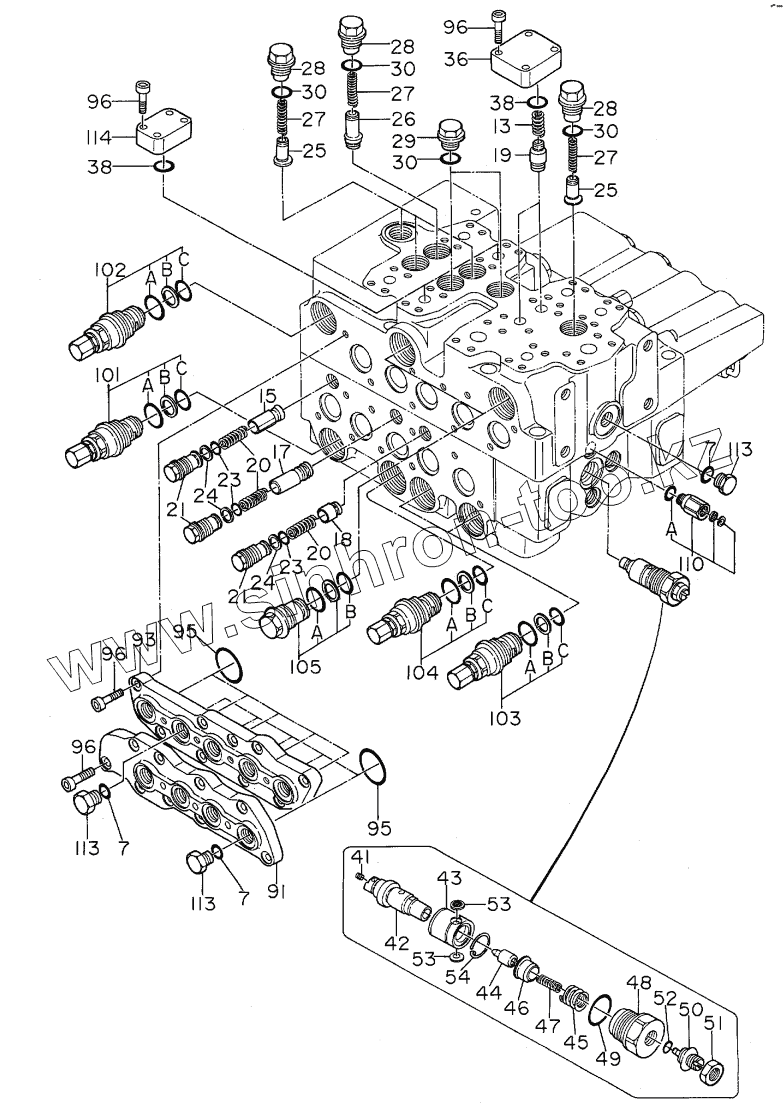

Каталог запасных частей к технике: Hitachi Компоненты EX-100WD. VALVE, CONTROL (2/5)
4506420
4191114
957366
4506420
4506428
4506420
4263183
4506428
4263183
4506428
4506420
4506428
4263183
4506420
4263183
4506428
7
7
7
13
15
17
18
19
20
20
21
21
21
21
23
23
24
24
25
25
26
27
27
27
28
28
28
29
30
30
30
30
36
38
38
41
42
43
44
45
46
47
48
49
50
51
52
53
53
54
91
93
95
95
96
96
96
96
101
101
102
102
103
103
103
103
104
104
104
104
105
110
113
113
113
114
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4506420 | 4506420 | O-RING | |
| 4191114 | 4191114 | VALVE, CONTROL | |
| 957366 | 957366 | O-RING | |
| 4506420 | 4506420 | O-RING | |
| 4506428 | 4506428 | O-RING | |
| 4506420 | 4506420 | O-RING | |
| 4263183 | 4263183 | RING, BACK-UP | |
| 4506428 | 4506428 | O-RING | |
| 4263183 | 4263183 | RING, BACK-UP | |
| 4506428 | 4506428 | O-RING | |
| 4506420 | 4506420 | O-RING | |
| 4506428 | 4506428 | O-RING | |
| 4263183 | 4263183 | RING, BACK-UP | |
| 4506420 | 4506420 | O-RING | |
| 4263183 | 4263183 | RING, BACK-UP | |
| 4506428 | 4506428 | O-RING | |
| 7 | 4509180 | O-RING | |
| 13 | 0309406 | SPRING | |
| 15 | 0309408 | VALVE | |
| 17 | 0309410 | VALVE | |
| 18 | 0309411 | VALVE | |
| 19 | 0309412 | VALVE | |
| 20 | 0309413 | SPRING | |
| 21 | 0309414 | PLUG | |
| 21 | 0357606 | PLUG | |
| 23 | 4506412 | O-RING | |
| 24 | 0309416 | RING, BACK-UP | |
| 25 | 0309417 | VALVE | |
| 26 | 0325106 | PLUG | |
| 27 | 0309419 | SPRING | |
| 28 | 0309420 | PLUG | |
| 29 | 0309421 | PLUG | |
| 30 | 0309422 | O-RING | |
| 36 | 0357601 | PLATE | |
| 38 | 4506420 | O-RING | |
| 41 | 0309430 | SCREW | |
| 42 | 0309431 | VALVE | |
| 43 | 0328503 | BUSHING | |
| 44 | 0309433 | VALVE | |
| 45 | 0309434 | SPRING | |
| 46 | 0309435 | SEAT | |
| 47 | 0309436 | SPRING | |
| 48 | 0309437 | BODY | |
| 49 | 0209322 | O-RING | |
| 50 | 0309438 | SCREW | |
| 51 | 0309439 | NUT | |
| 52 | 0309440 | O-RING | |
| 53 | 0328505 | FILTER | |
| 54 | 0328504 | RING, RETAINING | |
| 91 | 0309450 | HOUSING | |
| 93 | 0309452 | HOUSING | |
| 95 | 0309454 | O-RING | |
| 96 | 0309455 | BOLT, SOCKET | |
| 101 | 0309457 | VALVE, RELIEF | |
| 101 | 0357602 | VALVE, RELIEF | |
| 102 | 0309470 | VALVE, RELIEF | |
| 102 | 0309458 | VALVE, RELIEF | |
| 103 | 4265364 | VALVE, RELIEF | |
| 103 | 0309459 | VALVE | |
| 103 | 0357604 | VALVE | |
| 103 | 4274626 | VALVE, RELIEF | |
| 104 | 4265365 | VALVE, RELIEF | |
| 104 | 4254180 | VALVE, RELIEF | |
| 104 | 0357605 | VALVE | |
| 104 | 0309460 | VALVE | |
| 105 | 0309461 | PLUG ASS'Y | |
| 110 | 0328506 | ADAPTER | |
| 113 | 0309463 | PLUG | |
| 114 | 0309464 | PLATE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
