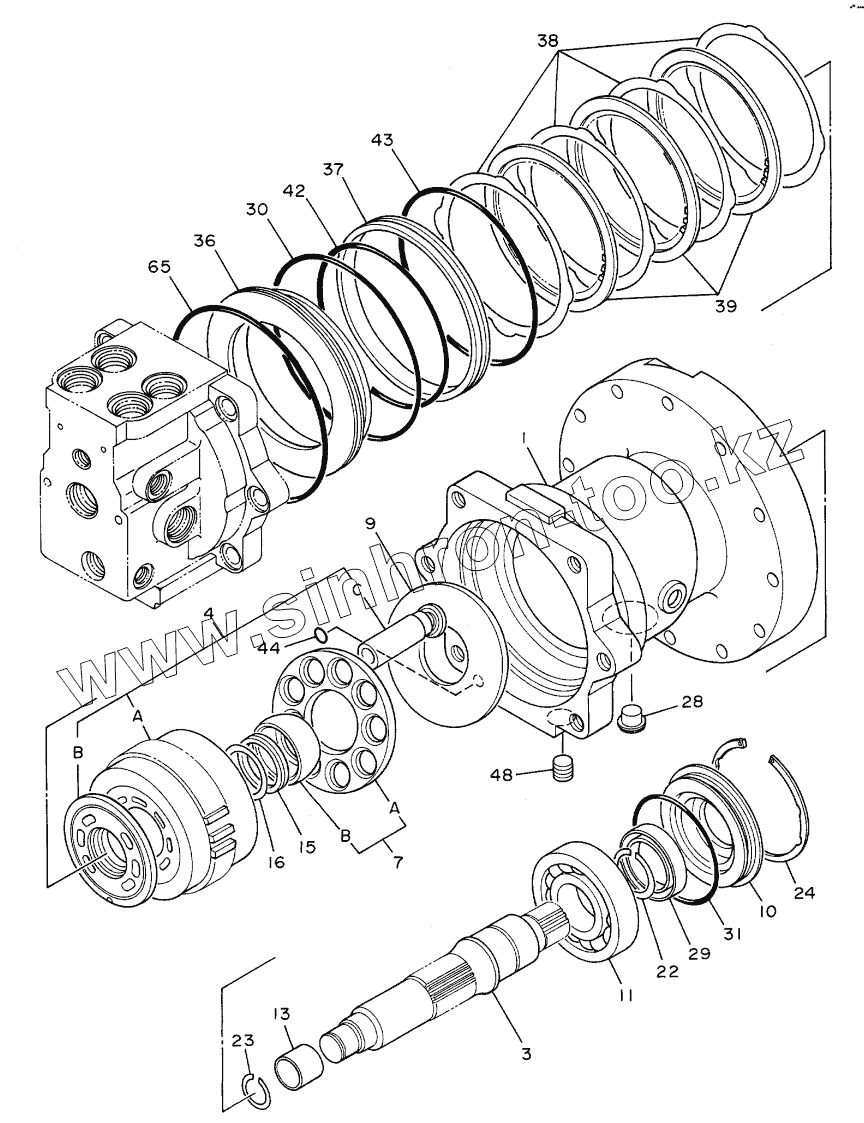

Каталог запасных частей к технике: Hitachi Компоненты EX-100WD. MOTOR, OIL (1/2)
PLATE
4199024
HOLDER
PISTON
PLATE
BLOCK
1
3
4
7
9
10
11
13
15
16
22
23
24
28
29
30
31
36
37
38
39
42
43
44
48
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| PLATE | PLATE | PLATE | |
| 4199024 | 4199024 | MOTOR, OIL | |
| HOLDER | HOLDER | HOLDER | |
| PISTON | PISTON | PISTON | |
| PLATE | PLATE | PLATE | |
| BLOCK | BLOCK | JUNCTION BLOCK | |
| 1 | 0311301 | CASE | |
| 3 | 0311303 | SHAFT | |
| 4 | 0311304 | BLOCK, CYL. ASSY | |
| 7 | 0311305 | PLATE ASSY | |
| 9 | 0311306 | PLATE, THRUST | |
| 10 | 0311307 | CASE | |
| 11 | 0311308 | BRG., BALL | |
| 13 | 0311309 | RACE, INNER | |
| 15 | 0311311 | SPRING | |
| 16 | 0311312 | SEAT, SPRING | |
| 22 | 959499 | RING, RETAINING | |
| 23 | 0311316 | RING, RETAINING | |
| 24 | 0311317 | RING DETAINING | |
| 28 | PLUG | PLUG | |
| 29 | 0251311 | SEAL, OIL | |
| 30 | 0311320 | O-RING | |
| 31 | A811100 | O-RING | |
| 36 | 0311321 | PISTON | |
| 37 | 0311322 | COLLAR | |
| 38 | 0311323 | PLATE, FRICTION | |
| 39 | 0311324 | PLATE, DISK | |
| 42 | 0224924 | O-RING | |
| 43 | 0310017 | O-RING | |
| 44 | 4506408 | O-RING | |
| 48 | 94-2011 | PLUG | |
| 65 | 0311338 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
