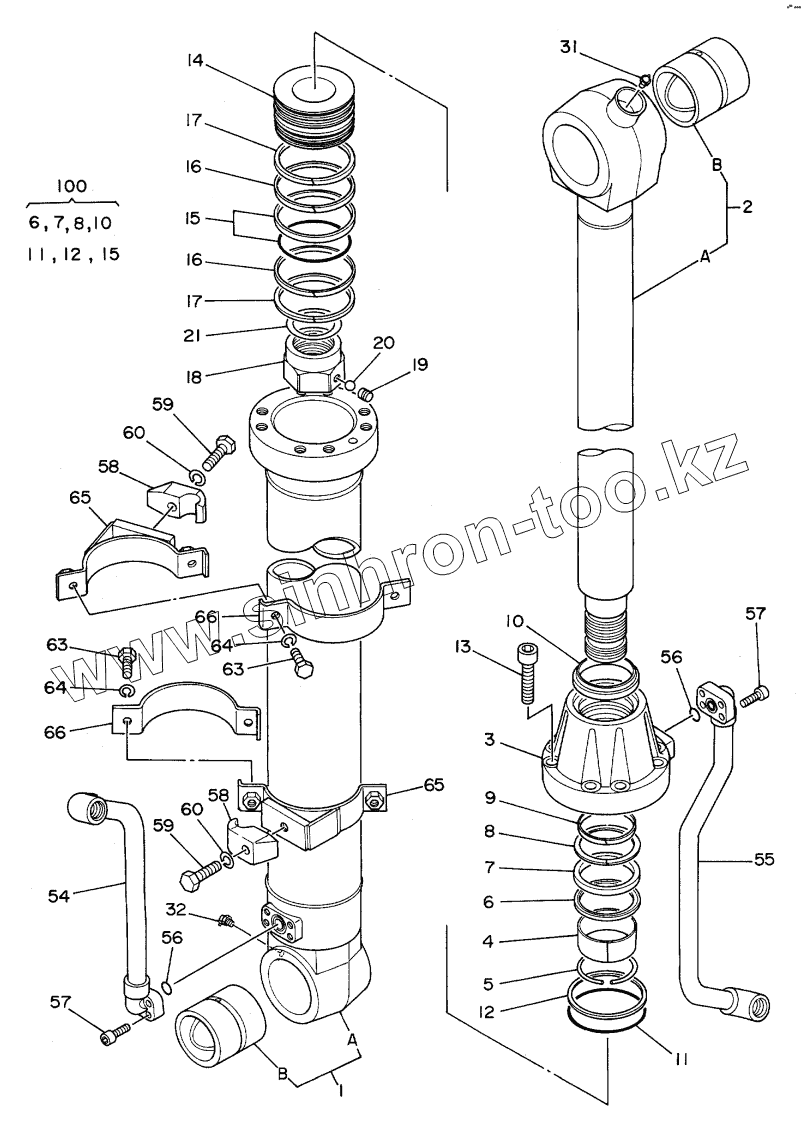

Каталог запасных частей к технике: Hitachi Компоненты EX-100WD. CYL., BUCKET
4206336
4187909
0174403
0310602
0310601
0310513
1
2
3
4
5
6
6
7
7
8
8
9
10
10
11
11
12
12
13
14
15
15
16
16
17
17
18
19
20
21
31
32
54
55
56
56
57
57
58
58
59
59
60
60
63
63
64
64
65
65
66
66
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4206336 | 4206336 | CYL.PIPELESS | |
| 4187909 | 4187909 | CYL., BUCKET | |
| 0174403 | 0174403 | BUSHING | |
| 0310602 | 0310602 | ROD, PISTON | |
| 0310601 | 0310601 | TUBE, CYL. | |
| 0310513 | 0310513 | BUSHING, PIN | |
| 1 | 4227371 | TUBE, CYL. | |
| 2 | 4227372 | ROD, PISTON | |
| 3 | 0310603 | HEAD, CYL. | |
| 4 | 0310604 | BUSHING | |
| 5 | 4510494 | RING, RETAINING | |
| 6 | 0225613 | RING | |
| 7 | 0225611 | PACKING, U-RING | |
| 8 | 0225612 | RING, BACK-UP | |
| 9 | 0310605 | RING | |
| 10 | 0225610 | RING, WIPER | |
| 11 | A811090 | O-RING | |
| 12 | 0310606 | RING, BACK-UP | |
| 13 | 0163406 | BOLT, SOCKET | |
| 14 | 0310607 | PISTON | |
| 15 | 0310608 | RING, SEAL | |
| 16 | 0310609 | RING | |
| 17 | 0310610 | RING, SLIDE | |
| 18 | 0310611 | NUT | |
| 19 | 0310612 | SCREW, SET | |
| 20 | 0111818 | BALL, STEEL | |
| 21 | 0310613 | SHIM | |
| 31 | J75481 | FITTING, GREASE | |
| 32 | J75581 | FITTING, GREASE | |
| 54 | 0310614 | PIPE | |
| 55 | 0310615 | PIPE | |
| 56 | 4509181 | O-RING | |
| 57 | M340825 | BOLT, SOCKET | |
| 58 | 0310616 | HOLDER | |
| 59 | 0310617 | BOLT | |
| 60 | 0208516 | WASHER, SPRING | |
| 63 | 0178820 | BOLT | |
| 64 | A590910 | WASHER, SPRING | |
| 65 | 0310618 | BAND ASSY | |
| 66 | 0310619 | BAND | |
| 100 | 4206345 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
