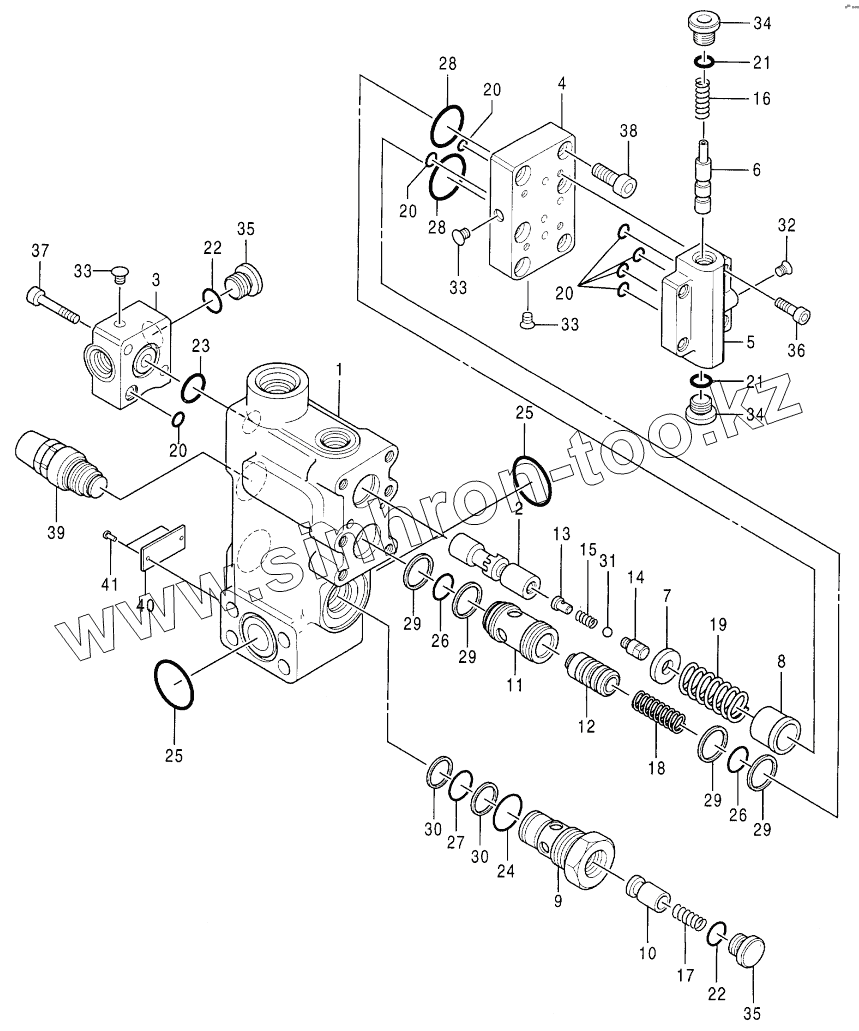

Каталог запасных частей к технике: Hitachi Компоненты EX-100-2. VALVE, HOLDING D94/02-
4345286
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
21
21
22
22
23
24
25
25
26
26
27
28
28
29
29
29
29
30
30
31
32
33
33
33
34
34
35
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4345286 | 4345286 | VALVE, HOLDING | |
| 1 | BODY | BODY | |
| 2 | SPOOL | SPOOL | |
| 3 | COVER | COVER | |
| 4 | COVER | COVER | |
| 5 | BODY | BODY | |
| 6 | SPOOL | SPOOL | |
| 7 | 0620301 | SEAT, SPRING | |
| 8 | 0620302 | PIECE, DISTANT | |
| 9 | GUIDE | GUIDE | |
| 10 | PLUNGER | PLUNGER | |
| 11 | BUSHING | BUSHING | |
| 12 | PISTON | PISTON | |
| 13 | SЕАТ | SЕАТ | |
| 14 | PLUG | PLUG | |
| 15 | SPRING | SPRING | |
| 16 | 0620303 | SPRING | |
| 17 | 0498503 | SPRING | |
| 18 | 0620304 | SPRING | |
| 19 | 0620305 | SPRING | |
| 20 | 4506407 | O-RING | |
| 21 | 957366 | O-RING | |
| 22 | 4509180 | O-RING | |
| 23 | 4506420 | O-RING | |
| 24 | 4506424 | O-RING | |
| 25 | А811030 | O-RING | |
| 26 | 0294414 | O-RING | |
| 27 | 0230906 | O-R-ING | |
| 28 | 0264107 | O-RING | |
| 29 | 0620306 | RING, BACK-UP | |
| 30 | 0230908 | RING, BACK-UP | |
| 31 | BALL | BALL | |
| 32 | PLUG | PLUG | |
| 33 | PLUG | PLUG | |
| 34 | 0215221 | PLUG | |
| 35 | 0253702 | PLUG | |
| 36 | 0620307 | BOLT, SOCKET | |
| 37 | 0620308 | BOLT, SOCKET | |
| 38 | 0627910 | BOLT, SOCKET | |
| 39 | 4324747 | VALVE, RELIEF | |
| 40 | 0408308 | NAME-PLATE | |
| 41 | 0242006 | SCREW, DRIVE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
