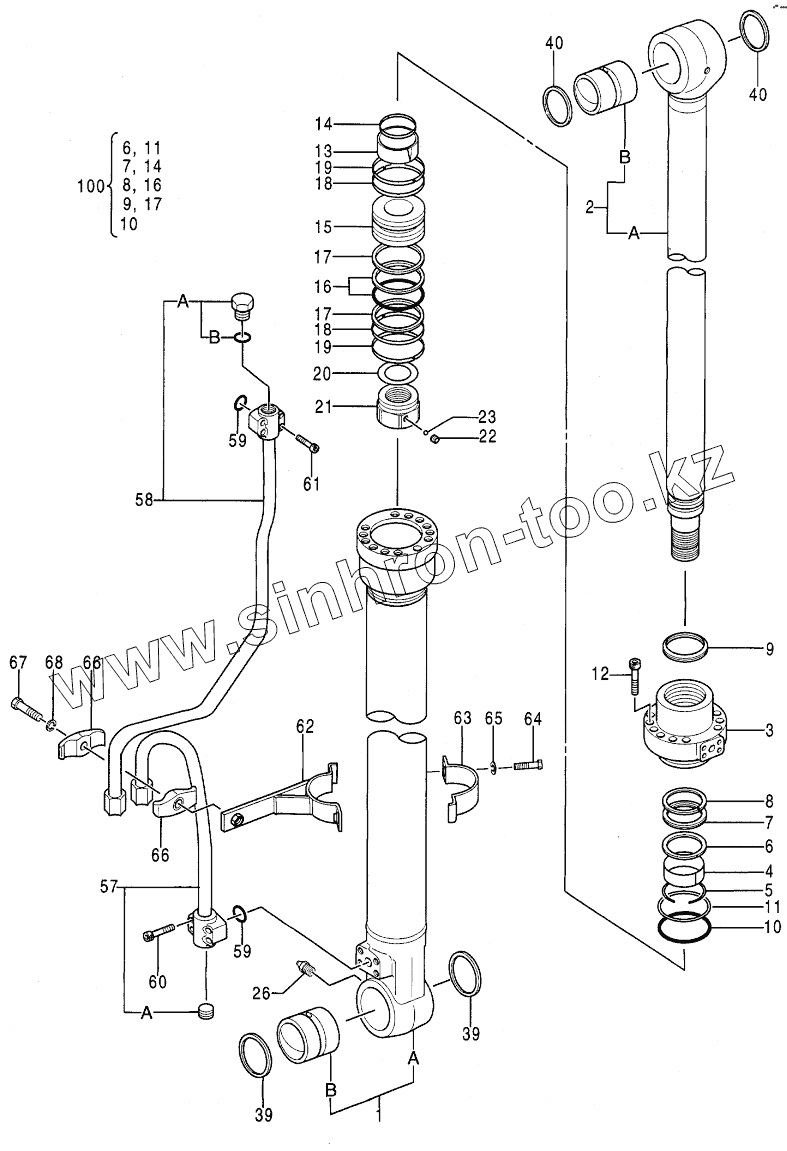

Каталог запасных частей к технике: Hitachi Компоненты EX-100-2. CYL., ВООМ (R) 30001-
4286740
94-2013
4174541
4506418
4257931
0174403
0409402
0408816
0409401
0174516
1
2
3
4
5
6
6
7
7
8
8
9
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
26
39
39
39
40
40
40
57
58
59
59
60
61
62
63
64
65
66
66
67
68
100
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4286740 | 4286740 | CYL. | |
| 94-2013 | 94-2013 | PLUG | |
| 4174541 | 4174541 | PLUG | |
| 4506418 | 4506418 | O-RING | |
| 4257931 | 4257931 | CYL., BOOM | |
| 0174403 | 0174403 | BUSHING | |
| 0409402 | 0409402 | ROD, PISTON | |
| 0408816 | 0408816 | BUSHING, PIN | |
| 0409401 | 0409401 | TUBE, CYL. | |
| 0174516 | 0174516 | BUSHING | |
| 1 | 4286741 | TUBE, CYL. ASSY | |
| 2 | 4286742 | ROD, PISTON ASSY | |
| 3 | 0409403 | HEAD, CYL. | |
| 4 | 0310304 | BUSHING, PIN | |
| 5 | 0271304 | RING, RETAINING | |
| 6 | 0408804 | RING | |
| 7 | 0271309 | PACKING, U-RING | |
| 8 | 0271310 | RING, BACK-UP | |
| 9 | 0271308 | RING, WIPER | |
| 9 | 0409503 | RING, WIPER | |
| 10 | А811090 | O-RING | |
| 11 | 0310606 | RING, BACK-UP | |
| 12 | 0408805 | BOLT, SOCKET | |
| 13 | 0408806 | BRG., CUSHION | |
| 14 | 0408807 | SEAL | |
| 15 | 0409106 | PISTON | |
| 16 | 0310608 | RING, SEAL | |
| 17 | 0409107 | RING, BUCK-UP | |
| 18 | 0310609 | RING | |
| 19 | 0310610 | RING, SLIDE | |
| 20 | 0326007 | SHIM | |
| 21 | 0409108 | NUT | |
| 22 | 0310612 | SCREW, SET | |
| 23 | 0111818 | BALL, STEEL | |
| 26 | J75481 | FITTING, GREASE | |
| 39 | 0408810 | RING, WIPER | |
| 39 | 4084578 | SEAL, DUST | |
| 40 | 0409112 | RING, WIPER | |
| 40 | 4065687 | SEAL, DUST | |
| 57 | 0408811 | PIPE | |
| 58 | 0409404 | PIPE | |
| 59 | 4509181 | O-RING | |
| 60 | 0309019 | BOLT, SOCKET | |
| 61 | 0310310 | BOLT, SOCKET | |
| 62 | 0409405 | BAND | |
| 63 | 0310619 | BAND | |
| 64 | 0408815 | BOLT | |
| 65 | 0325913 | WASHER | |
| 66 | 0310312 | HOLDER | |
| 67 | 0224115 | BOLT | |
| 68 | 0208516 | WASHER, SPRING | |
| 100 | 4286743 | KIT, SEAL | |
| 100 | 4320996 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
