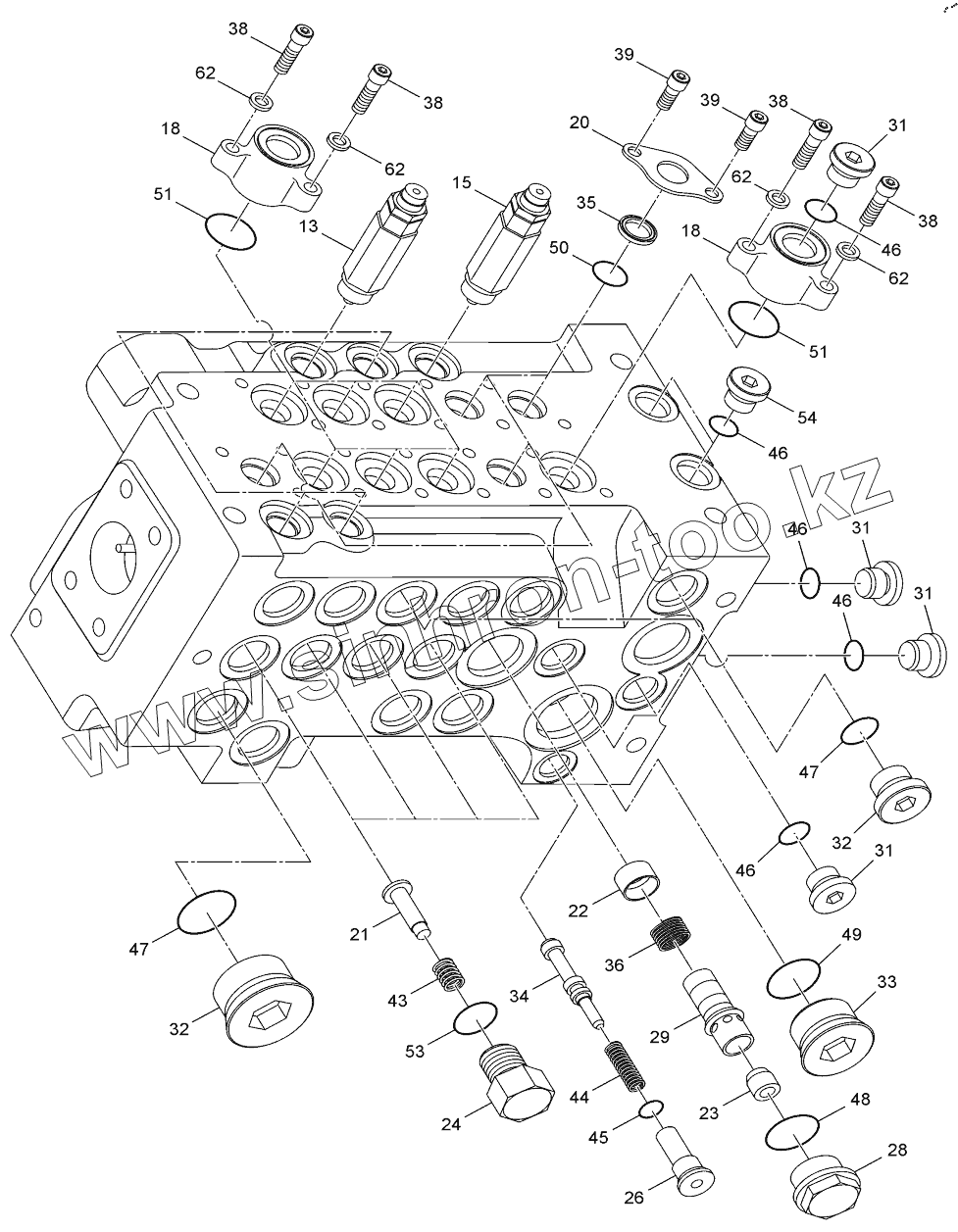

Каталог запасных частей к технике: Hitachi EX-70. VALVE CONTROL
13
15
18
18
20
21
22
23
24
26
28
29
31
31
31
31
32
32
33
34
35
36
38
38
38
38
39
39
43
44
45
46
46
46
46
46
47
47
48
49
50
51
51
53
54
62
62
62
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | HOUSING, BLOCK P1/P2 | HOUSING, BLOCK P1/P2 | |
| 2 | SPOOL ASS'Y, ARM2 | SPOOL ASS'Y, ARM2 | |
| 3 | SPOOL ASS'Y, BOOM1 | SPOOL ASS'Y, BOOM1 | |
| 4 | SPOOL ASS'Y, BUCKET | SPOOL ASS'Y, BUCKET | |
| 5 | SPOOL ASS'Y DOZER | SPOOL ASS'Y DOZER | |
| 6 | SPOOL ASS'Y, TRAVEL | SPOOL ASS'Y, TRAVEL | |
| 7 | SPOOL ASS'Y ARM 1 | SPOOL ASS'Y ARM 1 | |
| 8 | SPOOL ASS'Y BOOM2 | SPOOL ASS'Y BOOM2 | |
| 9 | SPOOL ASS'Y SWING | SPOOL ASS'Y SWING | |
| 10 | SPOOL ASS'Y TRAVEL | SPOOL ASS'Y TRAVEL | |
| 11 | SPOOL ASS'Y, ST TRAVEL | SPOOL ASS'Y, ST TRAVEL | |
| 12 | SPOOL ASS'Y, OPTION2 | SPOOL ASS'Y, OPTION2 | |
| 13 | ТЕ22589 | ORV ASS'Y | |
| 14 | ТЕ22992 | HOLDING VALVE KIT | |
| 15 | ТЕ22991 | ORV ASS'Y | |
| 16 | ТЕ22988 | MRV ASS'Y | |
| 17 | ТЕ25576 | CAP, PILOT | |
| 18 | ТЕ25577 | CAP, PILOT | |
| 19 | ТЕ25578 | CAP, RETURN | |
| 20 | PLATE, SEAL | PLATE, SEAL | |
| 21 | ТЕ25579 | POPPET, LOAD CHECK | |
| 22 | ТЕ25580 | POPPET, LOAD CHECK | |
| 23 | ТЕ25581 | POPPET, LOAD CHECK | |
| 24 | ТЕ25582 | PLUG, LOAD CHECK | |
| 25 | ТЕ25583 | PLUG, LOAD CHECK | |
| 26 | ТЕ25584 | PLUG, PF 1/4 | |
| 27 | ТЕ25585 | PLUG, LOAD CHECK | |
| 28 | ТЕ25586 | PLUG, LOAD CHECK | |
| 29 | SLEEVE, ARM2 | SLEEVE, ARM2 | |
| 30 | ORIFICE, SIGNAL | ORIFICE, SIGNAL | |
| 31 | ТЕ25587 | PLUG | |
| 32 | ТЕ25588 | PLUG | |
| 33 | ТЕ25589 | PLUG, PF 1 | |
| 34 | SPOOL, TS | SPOOL, TS | |
| 35 | DUST SEAL | DUST SEAL | |
| 36 | ТЕ25590 | SPRING, LOAD CHECK | |
| 37 | ТЕ25591 | SPRING, LOAD CHECK | |
| 38 | BOLT | BOLT | |
| 39 | BOLT | BOLT | |
| 40 | SET, SCREW | SET, SCREW | |
| 41 | NPT, 1/16 | NPT, 1/16 | |
| 42 | BACK UP RING | BACK UP RING | |
| 43 | SPRING, LOAD CHECK | SPRING, LOAD CHECK | |
| 44 | SPRING, TS SIGNAL | SPRING, TS SIGNAL | |
| 45 | O-RING | O-RING | |
| 46 | O-RING | O-RING | |
| 47 | O-RING | O-RING | |
| 48 | O-RING | O-RING | |
| 49 | O-RING | O-RING | |
| 50 | O-RING | O-RING | |
| 51 | O-RING | O-RING | |
| 52 | WASHER | WASHER | |
| 53 | O-RING | O-RING | |
| 54 | ТЕ25592 | PLUG, PF | |
| 55 | O-RING | O-RING | |
| 56 | O-RING | O-RING | |
| 57 | O-RING | O-RING | |
| 58 | O-RING | O-RING | |
| 59 | O-RING | O-RING | |
| 60 | PLUG, ORV | PLUG, ORV | |
| 6-1 | DUST SEAL | DUST SEAL | |
| 13-1 | O-RING | O-RING | |
| 16-1 | O-RING | O-RING | |
| 16-2 | BACKUP RING | BACKUP RING | |
| 16-3 | O-RING | O-RING | |
| 62 | ТЕ25568 | SEAL KIT | |
| ТЕ26579 | ТЕ26579 | DUST SEAL | |
| ТЕ26580 | ТЕ26580 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
