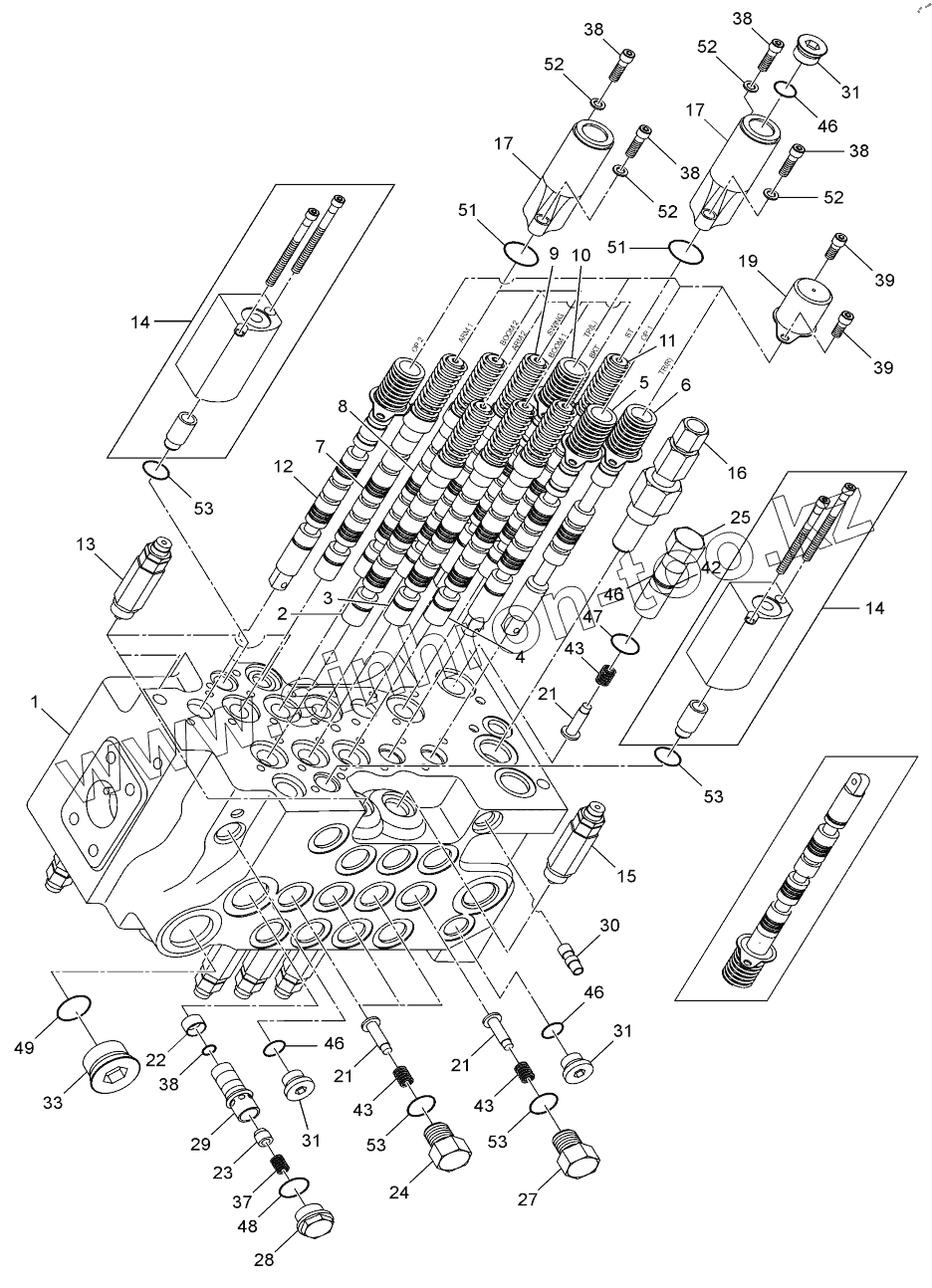

Каталог запасных частей к технике: Hitachi EX-70. VALVE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
19
21
21
21
22
23
24
25
27
28
29
30
31
31
31
33
37
38
38
38
38
38
39
39
42
43
43
43
46
46
46
46
47
48
49
51
51
52
52
52
52
53
53
53
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | HOUSING, BLOCK P1/P2 | HOUSING, BLOCK P1/P2 | |
| 2 | SPOOL ASS'Y, ARM2 | SPOOL ASS'Y, ARM2 | |
| 3 | SPOOL ASS'Y, BOOM1 | SPOOL ASS'Y, BOOM1 | |
| 4 | SPOOL ASS'Y, BUCKET | SPOOL ASS'Y, BUCKET | |
| 5 | SPOOL ASS'Y DOZER | SPOOL ASS'Y DOZER | |
| 6 | SPOOL ASS'Y, TRAVEL | SPOOL ASS'Y, TRAVEL | |
| 7 | SPOOL ASS'Y ARM 1 | SPOOL ASS'Y ARM 1 | |
| 8 | SPOOL ASS'Y BOOM2 | SPOOL ASS'Y BOOM2 | |
| 9 | SPOOL ASS'Y SWING | SPOOL ASS'Y SWING | |
| 10 | SPOOL ASS'Y TRAVEL | SPOOL ASS'Y TRAVEL | |
| 11 | SPOOL ASS'Y, ST TRAVEL | SPOOL ASS'Y, ST TRAVEL | |
| 12 | SPOOL ASS'Y, OPTION2 | SPOOL ASS'Y, OPTION2 | |
| 13 | ТЕ22589 | ORV ASS'Y | |
| 14 | ТЕ22992 | HOLDING VALVE KIT | |
| 15 | ТЕ22991 | ORV ASS'Y | |
| 16 | ТЕ22988 | MRV ASS'Y | |
| 17 | ТЕ25576 | CAP, PILOT | |
| 18 | ТЕ25577 | CAP, PILOT | |
| 19 | ТЕ25578 | CAP, RETURN | |
| 20 | PLATE, SEAL | PLATE, SEAL | |
| 21 | ТЕ25579 | POPPET, LOAD CHECK | |
| 22 | ТЕ25580 | POPPET, LOAD CHECK | |
| 23 | ТЕ25581 | POPPET, LOAD CHECK | |
| 24 | ТЕ25582 | PLUG, LOAD CHECK | |
| 25 | ТЕ25583 | PLUG, LOAD CHECK | |
| 26 | ТЕ25584 | PLUG, PF 1/4 | |
| 27 | ТЕ25585 | PLUG, LOAD CHECK | |
| 28 | ТЕ25586 | PLUG, LOAD CHECK | |
| 29 | SLEEVE, ARM2 | SLEEVE, ARM2 | |
| 30 | ORIFICE, SIGNAL | ORIFICE, SIGNAL | |
| 31 | ТЕ25587 | PLUG | |
| 32 | ТЕ25588 | PLUG | |
| 33 | ТЕ25589 | PLUG, PF 1 | |
| 34 | SPOOL, TS | SPOOL, TS | |
| 35 | DUST SEAL | DUST SEAL | |
| 36 | ТЕ25590 | SPRING, LOAD CHECK | |
| 37 | ТЕ25591 | SPRING, LOAD CHECK | |
| 38 | BOLT | BOLT | |
| 39 | BOLT | BOLT | |
| 40 | SET, SCREW | SET, SCREW | |
| 41 | NPT, 1/16 | NPT, 1/16 | |
| 42 | BACK UP RING | BACK UP RING | |
| 43 | SPRING, LOAD CHECK | SPRING, LOAD CHECK | |
| 44 | SPRING, TS SIGNAL | SPRING, TS SIGNAL | |
| 45 | O-RING | O-RING | |
| 46 | O-RING | O-RING | |
| 47 | O-RING | O-RING | |
| 48 | O-RING | O-RING | |
| 49 | O-RING | O-RING | |
| 50 | O-RING | O-RING | |
| 51 | O-RING | O-RING | |
| 52 | WASHER | WASHER | |
| 53 | O-RING | O-RING | |
| 54 | ТЕ25592 | PLUG, PF | |
| 55 | O-RING | O-RING | |
| 56 | O-RING | O-RING | |
| 57 | O-RING | O-RING | |
| 58 | O-RING | O-RING | |
| 59 | O-RING | O-RING | |
| 60 | PLUG, ORV | PLUG, ORV | |
| 6-1 | DUST SEAL | DUST SEAL | |
| 13-1 | O-RING | O-RING | |
| 16-1 | O-RING | O-RING | |
| 16-2 | BACKUP RING | BACKUP RING | |
| 16-3 | O-RING | O-RING | |
| 62 | ТЕ25568 | SEAL KIT | |
| ТЕ26579 | ТЕ26579 | DUST SEAL | |
| ТЕ26580 | ТЕ26580 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
