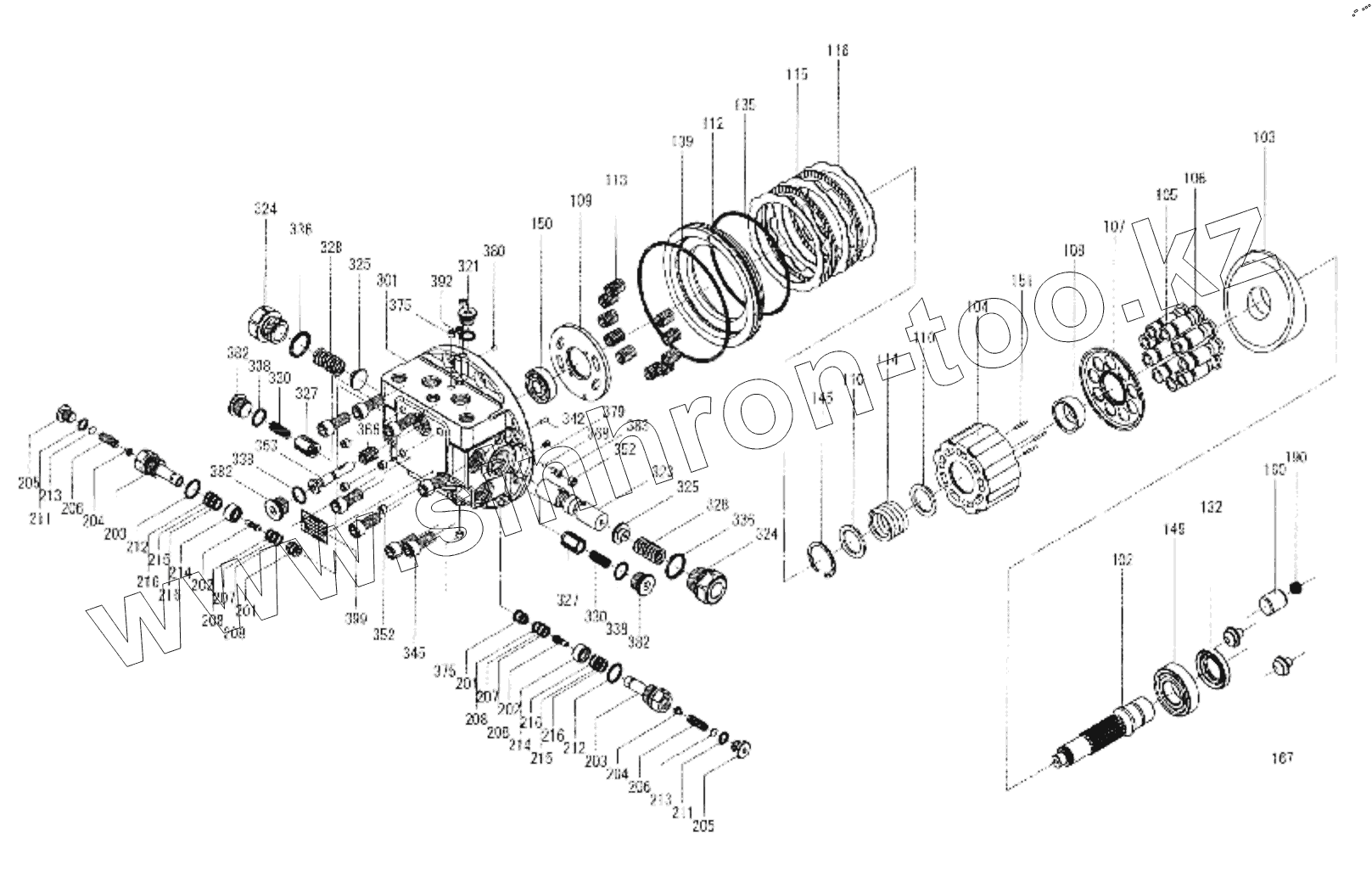

Каталог запасных частей к технике: Hitachi EX-70. TRAVEL MOTOR ASSEMBLY
105
106
102
103
107
109
109
110
110
112
113
114
115
116
132
135
139
145
149
150
151
160
167
190
201
201
202
202
203
203
204
204
205
205
206
207
207
208
208
208
208
211
212
212
213
214
214
215
215
215
216
216
216
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| ТЕ26344 | ТЕ26344 | HYDRAULIC MOTOR | |
| ТЕ22102 | ТЕ22102 | CYLINDER & PISTON KIT | |
| 0-1 | ТЕ22093 | PISTON KIT | |
| 0-1А | ТЕ22094 | PISTON ASSEMBLY | |
| 105 | ТВ20170/105 | PISTON | |
| 106 | ТВ20170/106 | SHOE | |
| 0-2 | ТВ20170/104 | CYLINDER BLOCK | |
| 102 | ТВ20170/102 | SHAFT | |
| 103 | ТВ20533/103 | SWASH PLATE | |
| 107 | ТВ20533/107 | RETAINER PLATE | |
| 108 | ТВ20533/108 | THRUST BALL | |
| 109 | ТВ20170/109 | TIMING PLATE | |
| 110 | ТВ20170/110 | WASHER | |
| 112 | ТВ20170/112 | PISTON | |
| 113 | ТВ20170/113 | SPRING | |
| 114 | ТВ20170/114 | SPRING | |
| 115 | ТВ20170/115 | FRICTION PLATE | |
| 116 | ТВ20170/116 | MATING PLATE | |
| 132 | ТВ20170/132 | OIL SEAL | |
| 135 | ТВ20170/135 | O-RING | |
| 139 | ТВ20170/139 | O-RING | |
| 145 | ТВ20170/145 | SNAP RING FOR HOLE | |
| 149 | ТВ20170/149 | BALL BEARING | |
| 150 | ТВ20170/150 | BALL BEARING | |
| 151 | ТВ20170/151 | ROLLER | |
| 160 | ТВ20533/160 | PISTON | |
| 167 | ТВ20533/167 | PIVOT | |
| 190 | ТВ20170/190 | SPRING PIN | |
| ТЕ26345 | ТЕ26345 | RELIEF VALVE ASSEMBLY | |
| 201 | ТВ20170/201 | VALVE SEAT | |
| 202 | ТВ20170/202 | VALVE | |
| 203 | ТВ20170/203 | SLEEVE | |
| 204 | ТВ20170/204 | COLLAR | |
| 205 | ТВ20170/205 | PLUG | |
| 206 | ТВ20170/206 | SPRING | |
| 207 | ТВ20170/207 | O-RING | |
| 208 | ТВ20170/208 | BACK UP-RING | |
| 211 | ТВ20170/211 | O-RING | |
| 212 | ТВ20170/212 | O-RING | |
| 213 | ТВ20170/213 | SHIM | |
| 214 | ТВ20170/214 | PISTON | |
| 215 | ТВ20170/215 | O-RING | |
| 216 | ТВ20170/216 | BACK UP RING |
