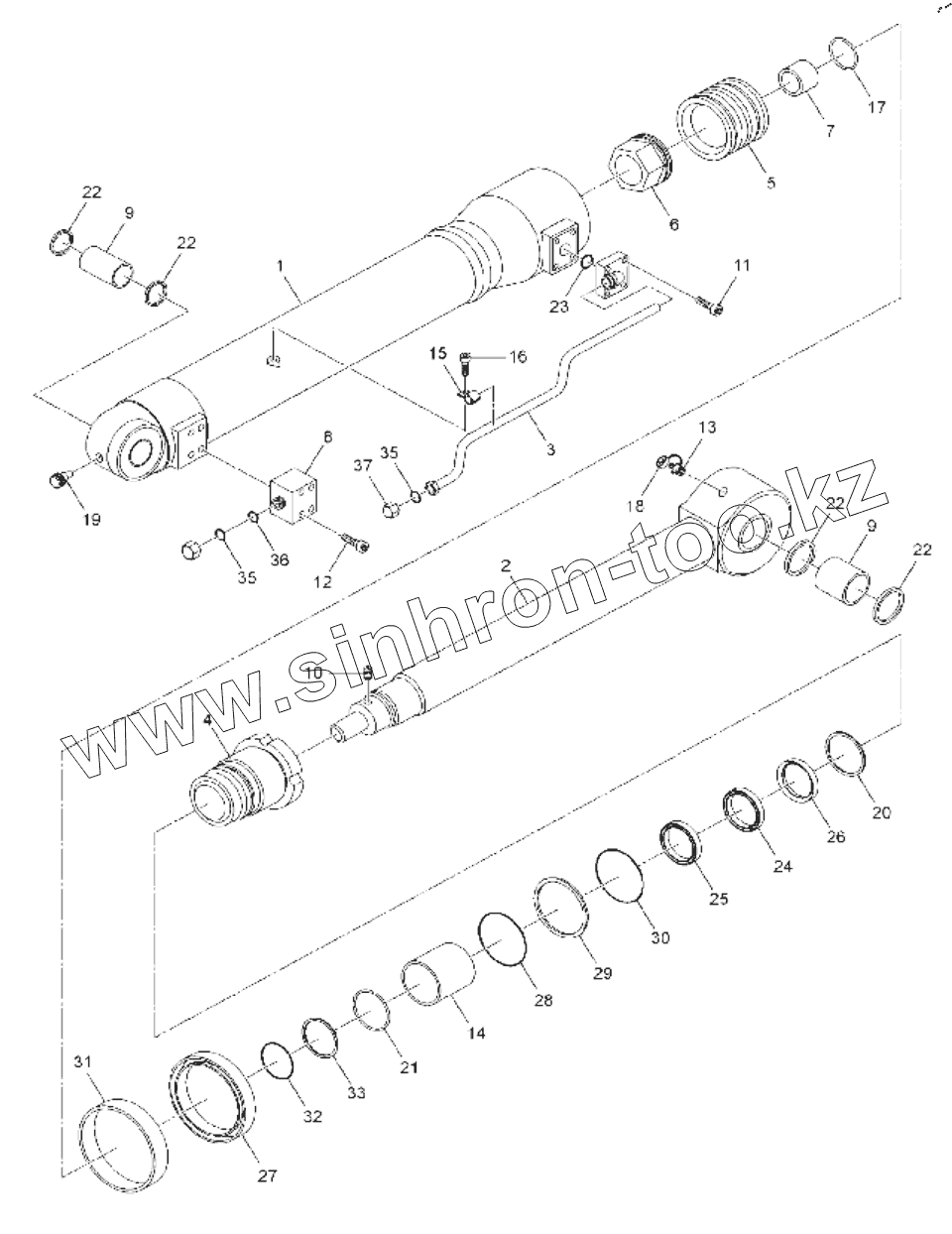

Каталог запасных частей к технике: Hitachi EX-70. CYLINDER ARM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
35
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| TD21738 | TD21738 | CYLINDER, ARM | |
| 1 | TD05901/1 | TUBE S/A | |
| 2 | TD05901/2 | PISTON ROD S/A | |
| 3 | TD21738/3 | PIPE S/A | |
| 4 | TD05901/4 | H E COVER | |
| 5 | TD05901/5 | PISTON | |
| 6 | TD05900/6 | PISTON ROD NUT | |
| 7 | TD05901/7 | C.E.CUSHION BUSH | |
| 8 | TD21738/06 | PORT | |
| 9 | TD21200/10 | BUSH | |
| 10 | TD05901/10 | SLOTTED GRUB SCREW | |
| 11 | TD21200/17 | CAP SCREW HEX. SOC. HD | |
| 12 | TD21200/16 | CAP SCREW | |
| 13 | TD20762/5 | GREASE NIPPLE | |
| 14 | ТС20160/12 | BIMETAL BUSH | |
| 15 | TD05901/15 | CLAMP | |
| 16 | TD05901/16 | HEX SOC HD SCREW | |
| 17 | TD05901/17 | CH. ALLOY STEEL BALL | |
| 18 | TD20762/19 | G.N.PRTN CAP | |
| 19 | TD21738/19 | PROTECTION CAP | |
| 20 | TD21200/13 | SNAP RING | |
| 21 | TD05901/20 | SNAP RING | |
| 22 | TD21200/31 | WIPER DUST SEAL | |
| 23 | TD21200/34 | O-RING | |
| 24 | TD21200/29 | ROD SEAL | |
| 25 | TD05901/26 | ROD SEAL | |
| 26 | TD05901/27 | WIPER | |
| 27 | TD21204/27 | PISTON SEAL | |
| 28 | TD21200/35 | O-RING | |
| 29 | TD21200/38 | BACK UP RING | |
| 30 | ТС01578/33 | O-RING | |
| 31 | TD05901/32 | PISTON BEARING | |
| 32 | ТС01399/28 | O-RING | |
| 33 | ТС01399/27 | BACKUP RING | |
| 34 | BACKUP RING | BACKUP RING | |
| 35 | TD21738/35 | O-RING | |
| 36 | TD21738/36 | O-RING | |
| 37 | TD21738/12 | PROTECTION CAP | |
| 38 | ТЕ23700 | SEAL KIT CYLINDER, ARM |
