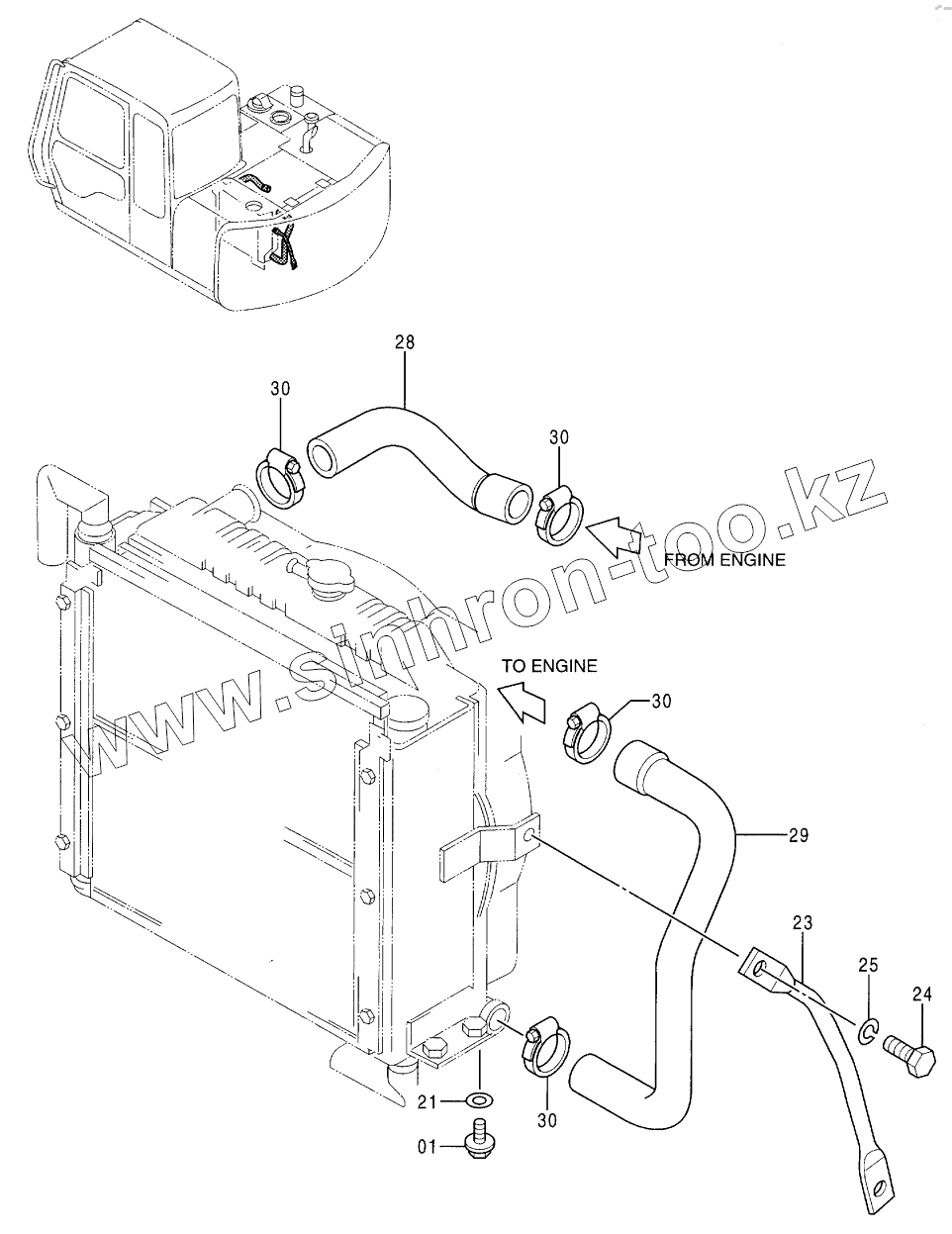

Каталог запасных частей к технике: Hitachi EX-60-3. RADIATOR SUPPORT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME COUNTER WEIGHT ENGINE RADIATOR RADIATOR SUPPORT RESERVE TANK AIR CLEANER MUFFLER FUEL PIPINGS FUEL TANK FUEL DOUBLE FILTER <OPTION> PUMP DEVICE SWING DEVICE OIL TANK OIL COOLER PIPINGS OIL COOLER PIPINGS OIL COOLER PIPINGS MAIN PIPINGS MAIN PIPINGS MAIN PIPINGS MAIN PIPINGS ENGINE CONTROL MOTOR ENGINE CONTROL CABLE ENGINE CONTROL LEVER <OPTION> CONTROL LEVER CONTROL LEVER CONTROL LEVER TRAVEL LEVER CABLE LEVER LOCK PILOT PIPINGS (STD)(EU) PILOT PIPINGS (N.EUROPE) PILOT PIPINGS PILOT PIPINGS PILOT PIPINGS (STD)(EU) PILOT PIPINGS (N.EUROPE) PILOT PIPINGS (STD) PILOT PIPINGS (EU)(N.EUROPE) PILOT PIPINGS (STD) PILOT PIPINGS (EU)(N.EUROPE) PILOT PIPINGS (STD) PILOT PIPINGS (EU)(N.EUROPE) ACCUMULATOR (EU)(N.EUROPE) SHOCKLESS PARTS <LC TRACK> CONSOLE (R) CONSOLE (L)(STD) CONSOLE (L)(EU)(N.EUROPE) SWITCH BOX GAUGE PANEL (STD) GAUGE PANEL (EU)(N.EUROPE) RADIO ELECTRIC PARTS ELECTRIC PARTS (STD) ELECTRIC PARTS (EU) ELECTRIC PARTS (N.EUROPE) ELECTRIC PARTS ELECTRIC PARTS (STD) ELECTRIC PARTS (EU) ELECTRIC PARTS (N.EUROPE) ELECTRIC PARTS (STD)(EU) ELECTRIC PARTS (N.EUROPE) ELECTRIC PARTS WINDOW WASHER <OPTION> CAR HEATER CAR HEATER PARTS HEATER PIPINGS CAB GROUP CAB GROUP REARVIEW MIRROR <OPTION> CAB CAB CAB (STD) CAB (EU) CAB CAB CAB CAB SUNVISOR (N.EUROPE) REAR COVER (INSIDE OF CAB) FLOOR PARTS SEAT (STD) SEAT (EU)(N.EUROPE) (040001-040718) SEAT (EU)(N.EUROPE) (040719-) SEAT STAND (STD) SEAT STAND (EU)(N.EUROPE) (040001-040718) SEAT STAND (EU)(N.EUROPE) (040719-) SEAT BELT COVER COVER COVER COVER COVER (STD) COVER (EU)(N.EUROPE) COVER DOOR LOCK DOOR LOCK TRACK FRAME <STD. TRACK> TRACK FRAME <LC TRACK> SWING BEARING TRAVEL DEVICE FRONT IDLER ADJUSTER UPPER ROLLER LOWER ROLLER TRACK-LINK (450G)<STD. TRACK> TRACK-LINK (450G)<LC TRACK> CENTER JOINT <STD. TRACK> CENTER JOINT <WITH BLADE> TRAVEL PIPINGS <STD. TRACK> TRAVEL PIPINGS <LC TRACK> TRAVEL PIPINGS COVER BOOM STD. ARM (1.62M) BUCKET (0.25) FRONT PIPINGS FRONT PIPINGS CYLINDER COVER (EU)(N.EUROPE) LUBRICATE PIPINGS OFFSET BOOM OFFSET BOOM CONTROL PEDAL (BREAKER & CRUSHER)<OFFSET BOOM> MAIN PIPINGS <OFFSET BOOM> FRONT PIPINGS <OFFSET BOOM> FRONT PIPINGS <OFFSET BOOM> FRONT PIPINGS <OFFSET BOOM> BLADE BLADE CONTROL LEVER BLADE PIPINGS (UPPERSTRUCTURE) BLADE PIPINGS (UNDERCARRIAGE) BOOM <SHORT REACH> ARM <SHORT REACH> BUCKET (0.25)<SHORT REACH> BUCKET (0.3)<SHORT REACH> PROTECTOR FRONT PIPINGS <SHORT REACH> BOOM <SUPER SHORT REACH> ARM <SUPER SHORT REACH> BUCKET (0.3)<SUPER SHORT REACH> FRONT PIPINGS <SUPER SHORT REACH> COUNTER WEIGHT <VIBRATOR> PUMP DEVICE <VIBRATOR> OIL TANK <VIBRATOR> MAIN PIPINGS <VIBRATOR> MAIN PIPINGS <VIBRATOR> MAIN PIPINGS <VIBRATOR> CONTROL LEVER <VIBRATOR> PILOT PIPINGS <VIBRATOR> ELECTRIC PARTS <VIBRATOR> ELECTRIC PARTS <VIBRATOR> COVER <VIBRATOR> BOOM <VIBRATOR> STD. ARM (1.62M) <VIBRATOR> STD. ARM (2.12M) <VIBRATOR> FRONT PIPINGS (STD ARM) <VIBRATOR> FRONT PIPINGS (STD ARM) <VIBRATOR> FRONT PIPINGS (LONG ARM) <VIBRATOR> FRONT PIPINGS (LONG ARM) <VIBRATOR> SLOW-RETURN VALVE PARTS ADJUSTER (RUBBER CRAWLER) RUBBER CRAWLER <STD. TRACK> RUBBER CRAWLER <LC TRACK> AIR CONDITIONER AIR CONDITIONER AIR-CON. UNIT AIR-CON. CONTROLLER HOT & COOL BOX TRACK-LINK (600G)<STD. TRACK> TRACK-LINK (500A)<STD. TRACK> TRACK-LINK (700A)<STD. TRACK> TRACK-LINK (450F)<STD. TRACK> TRACK-LINK (450GP)(RUBBER PAD)<STD. TRACK> LONG ARM (2.12M) FRONT PIPINGS (LONG ARM) BUCKET (0.1) BUCKET (0.2) BUCKET (0.3) BUCKET (0.2) 25S TYPE BUCKET (0.25) 25S TYPE BUCKET (0.3) 25S TYPE SLOPE-FINISHING BLADE HOSE RUPTURE VALVE PIPINGS (BOOM) HOSE RUPTURE VALVE PIPINGS (BOOM) HOSE RUPTURE VALVE PIPINGS (BOOM) MAIN PIPINGS FOR BREAKER & CRUSHER FRONT PIPINGS FOR BREAKER & CRUSHER PIPINGS FOR NPK BREAKER & CRUSHER PIPINGS FOR OKADA / FURUKAWA BREAKER PIPINGS FOR OKADA / FURUKAWA BREAKER & CRUSHER TOOLS SPARE PARTS NAME-PLATE (ENGLISH)(STD)

1

21

23

24

25

28

29

30

30

30

30

Позиция на иллюстрации	Заводской номер детали		Название детали
1	J011230		BOLT, SEMS
21	J222012		WASHER
23	4270964		STAY
24	J901430		BOLT
25	A590914		WASHER, SPRING
28	2031142		H0SE WATER
29	2031911		HOSE WATER
30	4505385		CLAMP, HOSE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
