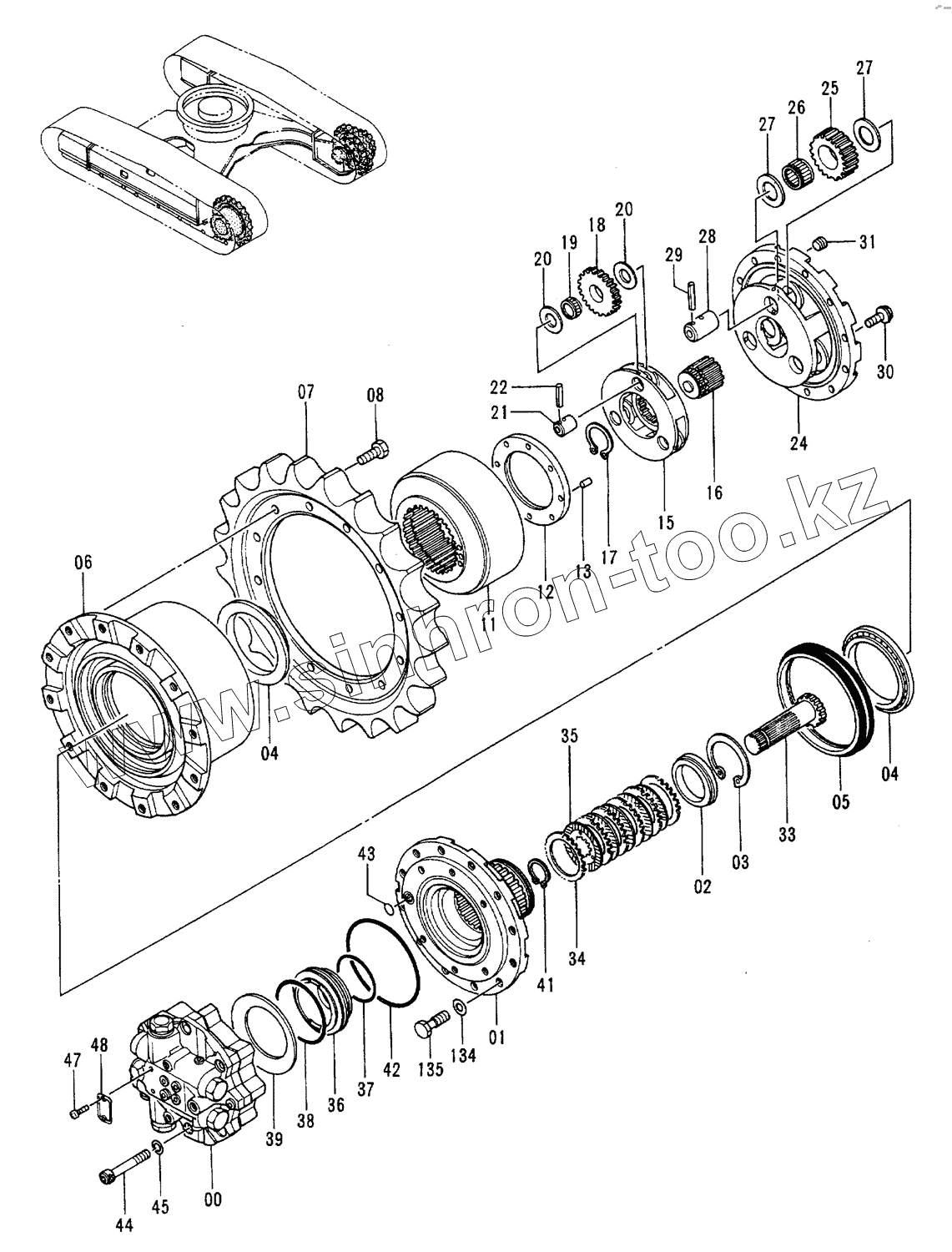

Каталог запасных частей к технике: Hitachi EX-60-2. Travel Device
00-48
00
01
02
03
04
04
05
06
07
08
11
12
13
15
16
17
18
19
20
20
21
22
24
25
26
27
27
28
29
30
31
33
34
34
35
35
36
37
38
39
41
42
43
44
45
47
48
134
135
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4272297 | 4272297 | PACKING | |
| 00-48 | 9111033 | TRAVEL DEVICE ASS’Y | |
| 00 | 9099449 | MOTOR OIL | |
| 01 | 1016273 | HOUSING | |
| 02 | 4192640 | SPACER | |
| 03 | 991728 | RING, RETAINING | |
| 04 | 4192639 | BRG. ROL. | |
| 05 | 4082631 | SEAL GROUP | |
| 06 | 1016274 | DRUM | |
| 07 | 1012495 | SPROCKET | |
| 08 | J931635 | BOLT | |
| 11 | 2031521 | GEAR RING | |
| 12 | 3036163 | NUT | |
| 13 | 4148012 | PIN, KNOCK | |
| 15 | 2031497 | CARRIER | |
| 16 | 3054866 | GEAR SUN | |
| 17 | 991345 | RING | |
| 18 | 3054865 | GEAR PLANETARY | |
| 19 | 4271103 | BRG. NEEDLE | |
| 20 | 4271349 | PLATE THRUST | |
| 21 | 4271101 | PIN | |
| 22 | 4169566 | PIN, SPRING | |
| 24 | 1016275 | CARRIER | |
| 25 | 3054864 | GEAR PLANETARY | |
| 26 | 4183108 | BRG. NEEDLE | |
| 27 | 4269294 | PLATE THRUST | |
| 28 | 4271102 | PIN | |
| 29 | 4169567 | PIN, SPRING | |
| 30 | J011230 | BOLT, SEMS | |
| 31 | 4245797 | PLUG | |
| 33 | 2031498 | SHAFT PROP. | |
| 34 | 3036164 | PLATE | |
| 34 | 3064191 | PLATE | |
| 35 | 3036165 | PLATE FRICTION | |
| 35 | 3064192 | PLATE FRICTION | |
| 36 | 3036166 | PISTON | |
| 37 | 4150683 | D-RING | |
| 38 | 4150684 | D-RING | |
| 39 | 3017067 | SPRING, DISC | |
| 41 | 929231 | RING | |
| 42 | 4154877 | O-RING | |
| 43 | 4506418 | O-RING | |
| 44 | 4192042 | BOLT, SOCKET | |
| 45 | A590914 | WASHER, SPRING | |
| 47 | M492564 | SCREW, DRIVE | |
| 48 | 3061377 | NAME-PLATE | |
| 134 | 3222016 | WASHER | |
| 135 | 4248606 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
