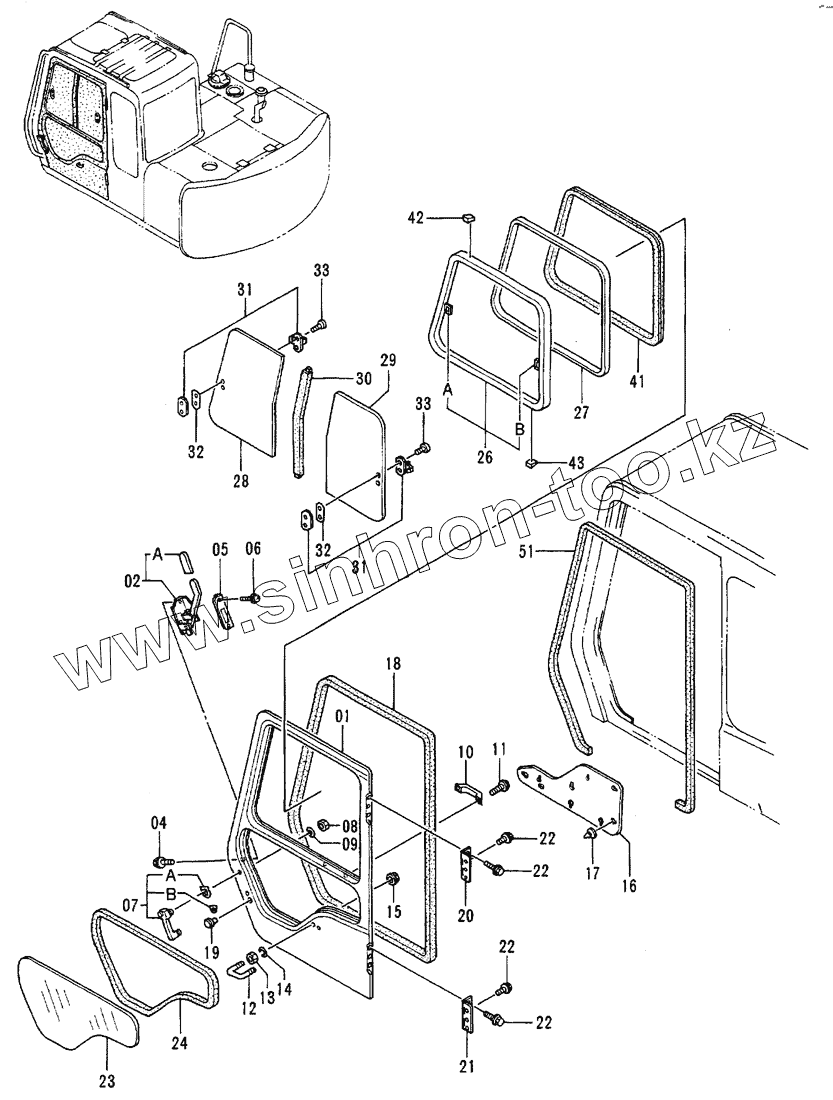

Каталог запасных частей к технике: Hitachi EX-60-2. Cab (5)
01-43
01-43
01
02
02A
04
04
04
05
06
07
07A
07B
08
08
09
10
11
12
13
13
14
15
15
16
16
17
17
18
19
20
21
22
22
22
22
23
24
26-33
26
26A
26B
27
28
29
30
31
31
32
32
33
33
41
42
43
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01-43 | 4315457 | CAB DOOR ASS’Y | |
| 01-43 | 4289511 | CAB DOOR ASSY | |
| 01 | 4295575 | DOOR | |
| 02 | 4295576 | LOCK | |
| 02A | 4295577 | COVER | |
| 04 | J460616 | SCREW, SEMS | |
| 04 | 4317501 | SCREW SEMS | |
| 04 | 4320168 | BOLT, SEMS | |
| 05 | 4295585 | COVER | |
| 06 | J460516 | SCREW SEMS | |
| 07 | 4295581 | HANDLE, OUTER | |
| 07A | 4323455 | PACKING, NYLON | |
| 07B | 4323456 | PACKING, NYLON | |
| 08 | M500807 | NUT | |
| 08 | 4321892 | NUT | |
| 09 | A590908 | WASHER, SPRING | |
| 10 | 4204579 | HANDLE | |
| 11 | J460616 | SCREW, SEMS | |
| 12 | 4295586 | BOLT, U | |
| 13 | J950010 | NUT | |
| 13 | 4295662 | NUT | |
| 14 | А590110 | WASHER, PLANE | |
| 15 | 4295662 | NUT | |
| 15 | 4317502 | NUT | |
| 16 | 4307548 | TRIM PAD | |
| 16 | 4295730 | TRIM, PAD | |
| 17 | 4204607 | CLIP | |
| 17 | 4320147 | CLIP | |
| 18 | 4295587 | WEATHER-STRIP | |
| 19 | 4295588 | LOCK | |
| 20 | 4295589 | HINGE, DOOR | |
| 21 | 4295590 | HINGE, DOOR | |
| 22 | 4295578 | BOLT, SEMS | |
| 23 | 4289512 | GLASS | |
| 24 | 4289513 | RUBBER, Z | |
| 26-33 | 4289514 | SASH, DOOR ASSY | |
| 26 | 4295591 | SASH | |
| 26A | 4295592 | CATCH | |
| 26B | 4147893 | CATCH | |
| 27 | 4295606 | GLASS-RUN | |
| 28 | 4289516 | GLASS | |
| 29 | 4289515 | GLASS | |
| 30 | 4295609 | RUBBER | |
| 31 | 4295610 | LOCK | |
| 32 | 4295611 | SPACER | |
| 33 | 4219753 | SCREW | |
| 41 | 4295612 | RUBBER | |
| 42 | 4204567 | SPACER | |
| 43 | 4147896 | SPACER | |
| 51 | 4295613 | RUBBER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
