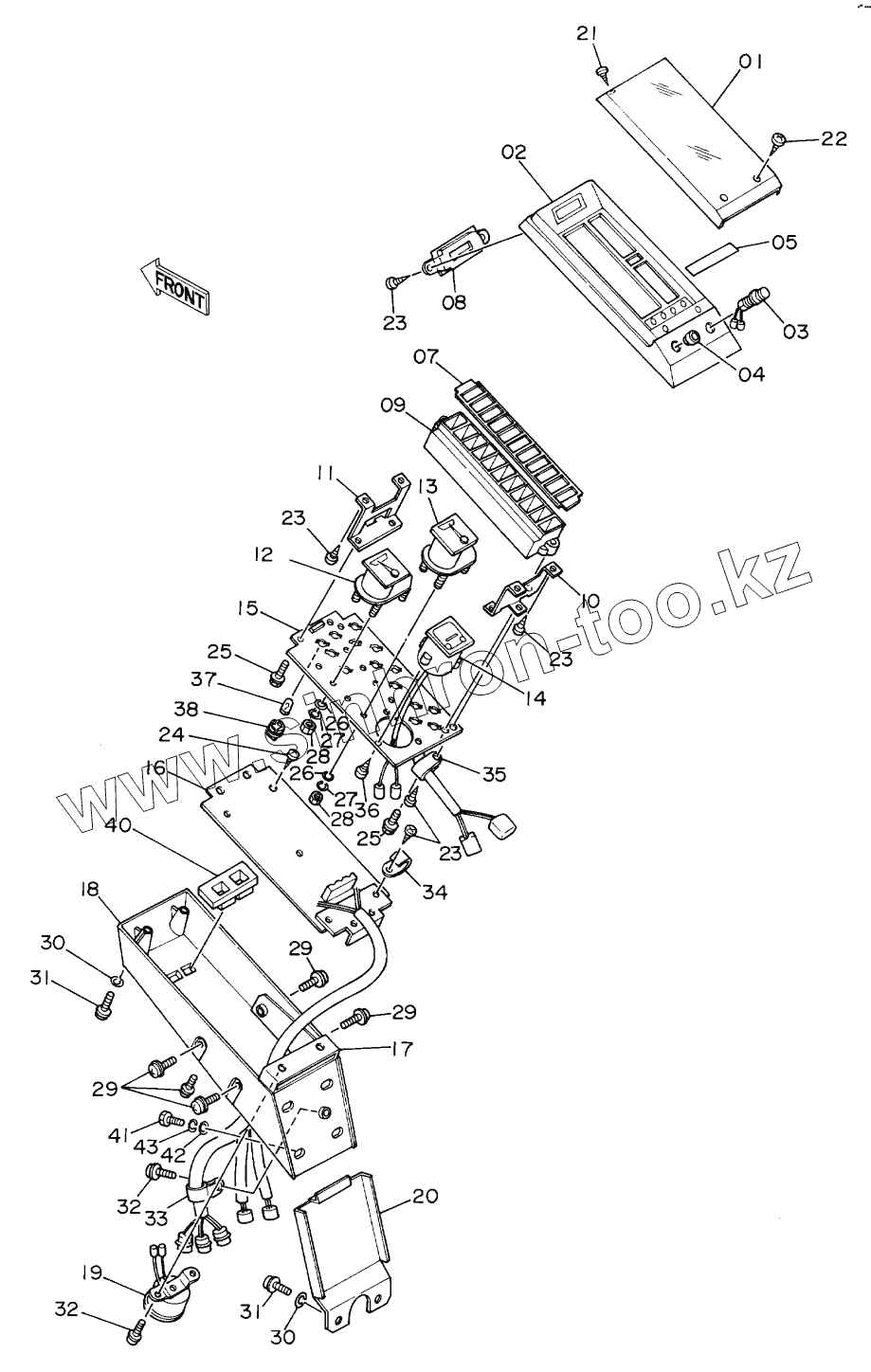

Каталог запасных частей к технике: Hitachi EX-60. GAUGE PANEL
4198552
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
23
23
23
23
24
25
25
26
26
27
27
28
28
29
29
29
30
30
31
31
32
32
33
34
35
36
37
38
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4198552 | 4198552 | PANEL, GAUGE ASSY | |
| 1 | 4208843 | COVER | |
| 2 | 4208844 | HOUSING, UPPER | |
| 3 | 4208845 | SWITCH BUZZER CANCEL | |
| 4 | 4210973 | CAP | |
| 5 | 4210974 | MASK | |
| 7 | 4210976 | LENS, WARNING | |
| 8 | 4210977 | MASK | |
| 9 | 4208851 | HOUSING, LAMP | |
| 10 | 4208852 | BRACKET | |
| 11 | 4208853 | BRACKET | |
| 12 | 4208854 | METER, TEMP. | |
| 13 | 4208855 | METER, FUEL | |
| 14 | 4208856 | METER, HOUR | |
| 15 | 4210975 | BOARD, METER | |
| 16 | 4210978 | BOARD, CONTROL | |
| 17 | 4208859 | BRACKET | |
| 18 | HOUSING | HOUSING | |
| 18 | 4208860 | HOUSING, LOWER | |
| 19 | 4208861 | BUZZER | |
| 20 | 4208862 | COVER | |
| 21 | 4208864 | SCREW, TAPPING | |
| 21 | 4208863 | SCREW, TAPPING | |
| 22 | 4208864 | SCREW, TAPPING | |
| 23 | 4208865 | SCREW, TAPPING | |
| 24 | 4208866 | SCREW, TAPPING | |
| 25 | 4208867 | SCREW | |
| 26 | 4208868 | WASHER | |
| 27 | A590903 | WASHER, SPRING | |
| 28 | M500303 | NUT | |
| 29 | 4208870 | SCREW | |
| 30 | 4208871 | WASHER | |
| 31 | 4208872 | SCREW | |
| 32 | 4208873 | SCREW | |
| 33 | 4208874 | CLIP | |
| 34 | 4213161 | CLIP | |
| 35 | 4210979 | CLIP | |
| 36 | 4208877 | SCREW, TAPPING | |
| 37 | 4208878 | BULB | |
| 38 | 4208879 | SOCKET, BULB | |
| 40 | 4252141 | COVER | |
| 41 | J900820 | BOLT | |
| 42 | A590108 | WASHER, PLANE | |
| 43 | A590908 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
