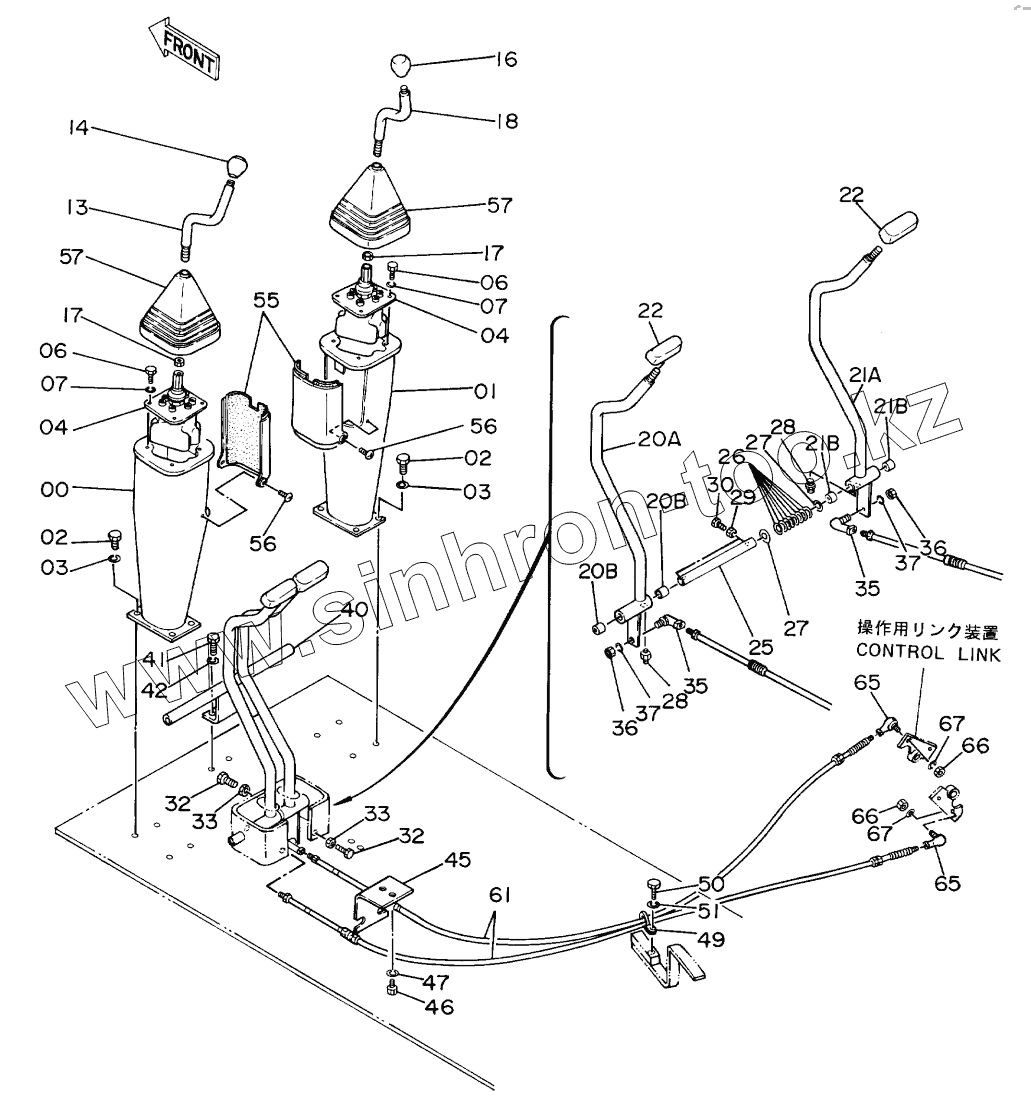

Каталог запасных частей к технике: Hitachi EX-60. CONTROL LEVER
00
01
02
02
03
03
04
04
04
06
06
07
07
13
14
14
14
16
17
17
18
20A
20B
20B
21A
21B
21B
22
22
25
26
27
27
28
28
29
30
32
32
33
33
35
35
36
36
37
37
40
41
42
45
46
47
49
50
51
55
56
56
57
57
61
65
65
66
66
67
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 6008402 | STAND | |
| 01 | 6008401 | STAND | |
| 02 | J901025 | BOLT | |
| 03 | A590910 | WASHER, SPRING | |
| 04 | 9071984 | VALVE, PILOT | |
| 04 | 9107499 | VALVE, PILOT | |
| 06 | J900616 | BOLT | |
| 07 | A590906 | WASHER, SPRING | |
| 13 | 7018130 | LEVER | |
| 14 | 4117703 | GRIP | |
| 14 | 4181088 | GRIP | |
| 14 | 4269020 | GRIP | |
| 16 | 4117704 | GRIP | |
| 17 | J950014 | NUT | |
| 18 | 7018206 | LEVER | |
| 20A-B | 9078733 | LEVER | |
| 20A | 8039499 | LEVER | |
| 20B | 4063692 | BRG., NEEDLE | |
| 21A-B | 9078732 | LEVER | |
| 21A | 8039500 | LEVER | |
| 21B | 4063692 | BRG., NEEDLE | |
| 22 | 4122423 | GRIP | |
| 25 | 4201336 | PIN | |
| 26 | 4081592 | SHIM 0.4 | |
| 27 | A590120 | WASHER | |
| 28 | J75481 | FITTING, GREASE | |
| 29 | J950010 | NUT | |
| 30 | J901030 | BOLT | |
| 32 | J901235 | BOLT | |
| 33 | J950012 | NUT | |
| 35 | 4056018 | JOINT, BALL | |
| 36 | M500807 | NUT | |
| 37 | A590908 | WASHER, SPRING | |
| 40 | 9719420 | STAY | |
| 41 | J901025 | BOLT | |
| 42 | A590910 | WASHER, SPRING | |
| 45 | 4211091 | BRACKET | |
| 46 | J901220 | BOLT | |
| 47 | A590912 | WASHER, SPRING | |
| 49 | 4192018 | CLIP | |
| 50 | J901220 | BOLT | |
| 51 | A590912 | WASHER, SPRING | |
| 55 | 7019096 | COVER | |
| 56 | J850510 | SCREW | |
| 57 | 2025150 | BOOT | |
| 61 | 4201495 | CABLE, CONTROL | |
| 65 | 4056018 | JOINT, BALL | |
| 66 | M500807 | NUT | |
| 67 | A590908 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
