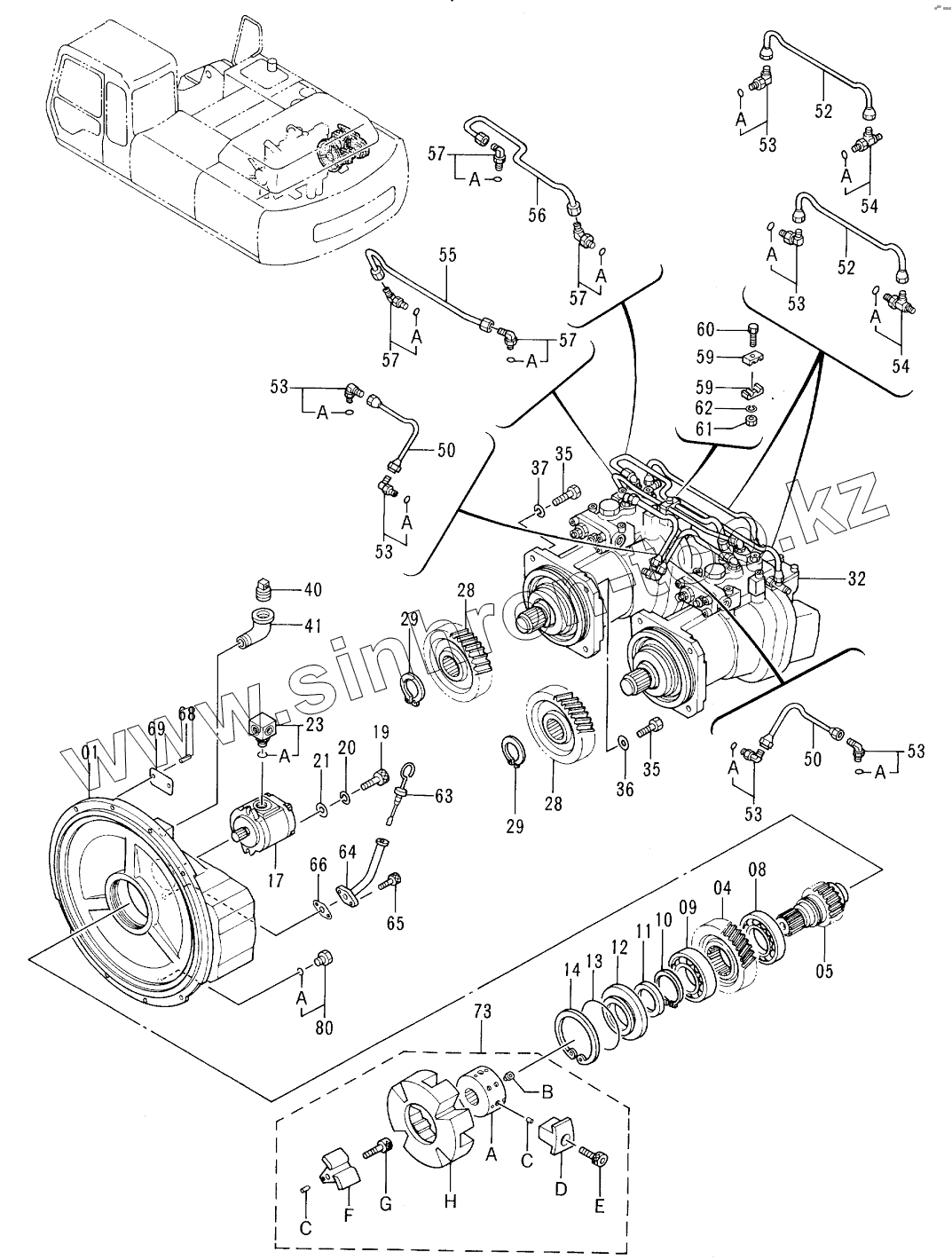

Каталог запасных частей к технике: Hitachi EX-300-2. PUMP DEVICE
1
4
5
8
9
10
11
12
13
14
17
19
20
21
23
23A
28
28
29
29
32
35
35
36
37
40
41
50
50
52
52
53
53
53
53
53
53
53A
53A
53A
53A
53A
53A
54
54
54A
54A
55
56
57
57
57
57
57A
57A
57A
57A
59
59
60
61
62
63
64
65
66
68
69
73
73A
73B
73C
73C
73D
73E
73F
73G
73H
80
80A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9121942 | 9121942 | PUMP, DOUBLE ASS'Y | |
| 1 | 1019268 | CASING, GEAR | |
| 4 | 3035852 | GEAR, CENTER | |
| 5 | 3038090 | SHAFT, CENTER | |
| 8 | 4023596 | BRG., BALL | |
| 9 | 4198787 | BRG., BALL | |
| 10 | 4191219 | RING, RETAINING | |
| 11 | 4179833 | SEAL, OIL | |
| 12 | 3033593 | COVER, T.MISSION | |
| 13 | 4179834 | O-RING | |
| 14 | 991733 | RING, RETAINING | |
| 17 | 4181700 | PUMP, GEAR | |
| 19 | M341028 | BOLT, SOCKET | |
| 20 | 984054 | WASHER, SPRING | |
| 21 | A590110 | WASHER, PLANE | |
| 23 | 4191974 | ADAPTER | |
| 23A | 4506418 | O-RING | |
| 28 | 3035853 | GEAR, DRIVE | |
| 29 | 991345 | RING | |
| 32 | 9121943 | PUMP, SINGLE | |
| 35 | M211645 | BOLT | |
| 36 | 4126090 | WASHER, SEAL | |
| 37 | A590916 | WASHER, SPRING | |
| 40 | 4234782 | PLUG | |
| 41 | 94-0649 | ELBOW | |
| 50 | 4192946 | PIPE | |
| 52 | 4192947 | PIPE | |
| 53 | 4179837 | FITTING, PIPE | |
| 53A | 957366 | O-RING | |
| 54 | 4203485 | FITTING, PIPE | |
| 54A | 957366 | O-RING | |
| 55 | 3036249 | PIPE | |
| 56 | 3036486 | PIPE | |
| 57 | 4118499 | FITTING, PIPE | |
| 57A | 957366 | O-RING | |
| 59 | 4179843 | CLAMP | |
| 60 | J900828 | BOLT | |
| 61 | M500807 | NUT | |
| 62 | A590908 | WASHER, SPRING | |
| 63 | 4242263 | GAUGE, LEVEL | |
| 64 | 4242262 | PIPE, GUIDE | |
| 65 | M340816 | BOLT, SOCKET | |
| 66 | 4243160 | PACKING | |
| 68 | M492564 | SCREW, DRIVE | |
| 69 | 3065861 | NAME-PLATE | |
| 73 | 4191663 | COUPLING ASSY | |
| 73A | 4216945 | HUB | |
| 73B | 4183170 | SCREW, SET | |
| 73C | 4101345 | PIN, SPRING | |
| 73D | 4216947 | INSERT | |
| 73E | 4216949 | BOLT, SOCKET | |
| 73F | 4216946 | INSERT | |
| 73G | 4216948 | BOLT, SOCKET | |
| 73H | 4216944 | COUPLING | |
| 80 | 9089486 | PLUG | |
| 80A | 4509180 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
