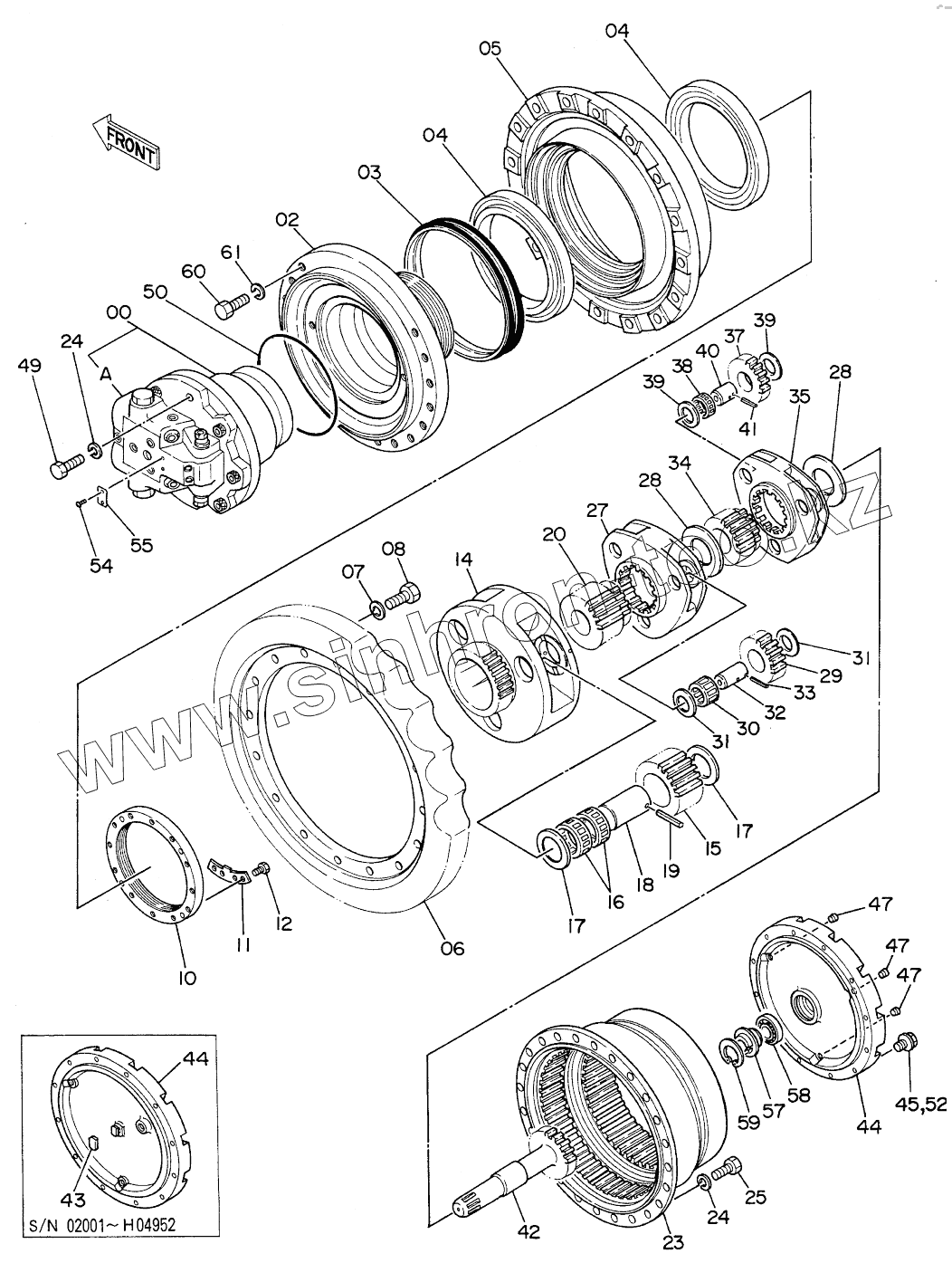

Каталог запасных частей к технике: Hitachi EX-300. TRAVEL DEVICE
9096486
9069550
9082178
9071903
9069422
9082057
2
3
4
4
5
6
7
8
10
11
12
14
15
16
17
17
17
17
18
19
20
23
24
24
25
27
28
28
29
30
31
31
32
33
34
35
37
38
39
39
40
41
42
43
44
44
44
44
44
44
44
44
45
47
47
47
47
47
47
47
47
47
49
50
52
52
54
55
57
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9096486 | 9096486 | TRAVEL DEVICE ASSY | |
| 9069550 | 9069550 | TRAVEL DEVICE ASSY | |
| 9082178 | 9082178 | VALVE, BRAKE | |
| 9071903 | 9071903 | VALVE, BRAKE | |
| 9069422 | 9069422 | MOTOR, OIL | |
| 9082057 | 9082057 | MOTOR, OIL | |
| 2 | 1010465 | HOUSING | |
| 3 | 4066695 | SЕАL, GRОUР | |
| 4 | 4192975 | ВRG., RОL. | |
| 5 | 1010466 | DRUM | |
| 6 | 1010467 | SPROCKET | |
| 7 | А590920 | WASHER, SPRING | |
| 8 | J932060 | BOLT | |
| 10 | 3036256 | NUТ | |
| 11 | 4192974 | РLАТЕ, LОСК | |
| 12 | J901225 | BOLT | |
| 14 | 1010468 | CARRIER | |
| 15 | 3036257 | GEAR, PLANETARY | |
| 16 | 4192976 | BRG., NEEDLE | |
| 17 | 4201913 | PLATE, THRUST | |
| 17 | 4219595 | PLATE, THRUST | |
| 18 | 4192978 | PIN | |
| 19 | 4192021 | РIN, SРRING | |
| 20 | 3036258 | GEAR, SUN | |
| 23 | 1010473 | GEAR, RING | |
| 24 | А590916 | WASHER, SPRING | |
| 25 | J931645 | BOLT | |
| 27 | 1010475 | CARRIER | |
| 28 | 4192979 | SPACER | |
| 29 | 3036264 | GEAR, PLANETARY | |
| 30 | 4190117 | BRG., NEEDLE | |
| 31 | 4192982 | PLATE, THRUST | |
| 32 | 4144558 | PIN | |
| 33 | 4144525 | PIN, SPRING | |
| 34 | 3036266 | GEAR, SUN | |
| 35 | 1010474 | CARRIER | |
| 37 | 3036265 | GEAR, PLANETARY | |
| 38 | 4108021 | BRG., NEEDLE | |
| 39 | 4192983 | PLATE, THRUST | |
| 40 | 4192977 | PIN | |
| 41 | 4192020 | PIN, SPRING | |
| 42 | 2023188 | SHAFT, PROP. | |
| 43 | 4204756 | CAP | |
| 44 | 2024646 | COVER | |
| 44 | 2028461 | COVER | |
| 44 | 2031913 | COVER | |
| 44 | 2031912 | COVER | |
| 45 | А590912 | WASHER, SPRING | |
| 47 | 94-2013 | PLUG | |
| 47 | 94-2013 | PLUG | |
| 47 | 4245797 | PLUG | |
| 49 | J931685 | BOLT | |
| 50 | 4193063 | O-RING | |
| 52 | M221228 | BOLT | |
| 52 | J011230 | BOLT, SEMS | |
| 54 | M492564 | SCREW, DRIVE | |
| 55 | 3053559 | NAME-PLATE | |
| 57 | 4278011 | PIN, ST0PPER | |
| 57 | 4277474 | РIN, SТОРРЕR | |
| 58 | 4278168 | ВRG., ВАLL | |
| 59 | 930451 | RING, RETAINING | |
| 60 | J932080 | BOLT | |
| 61 | A590920 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
