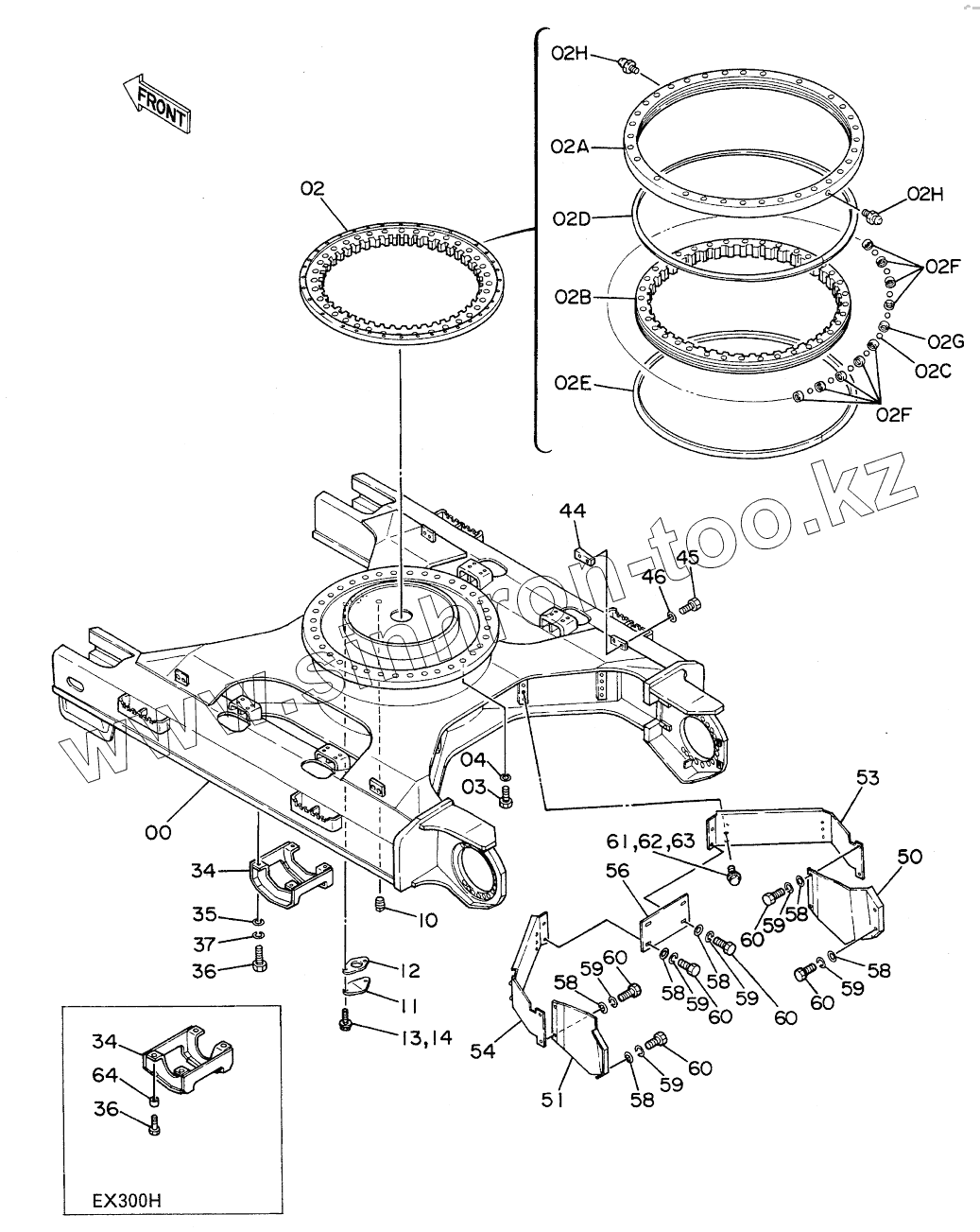

Каталог запасных частей к технике: Hitachi EX-300. TRACK FRAME (STD. TRACK)
00
02
02
02A
02B
02C
02D
02E
02F
02F
02G
02H
02H
03
04
10
11
12
13
13
14
34
34
34
34
34
34
35
36
36
36
36
37
44
45
46
50
51
53
54
56
58
58
58
58
58
58
59
59
59
59
59
59
60
60
60
60
60
60
61
61
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 5002006 | FRAME, TRACK | |
| 02 | 7017407 | BRG., SWINGCIRCL ASSY | |
| 02 | 9098980 | BRG., SWINGCIRCL ASSY | |
| 02A | RACE | RACE | |
| 02B | RACE | RACE | |
| 02C | 4143666 | BALL | |
| 02D | 4194493 | SEAL | |
| 02E | 4194494 | SEAL | |
| 02F | 4134900 | SUPPORT | |
| 02G | 4134901 | SUPPORT | |
| 02H | J75481 | FITTING, GREASE | |
| 03 | M122480 | BOLT | |
| 04 | А590924 | WASHER, SPRING | |
| 10 | J75284 | PLUG | |
| 11 | 4013896 | COVER | |
| 12 | 4510901 | PACKING | |
| 13 | J901020 | BOLT | |
| 13 | J011020 | BOLT, SEMS | |
| 14 | А590910 | WASHER, SPRING | |
| 34 | 8037301 | GUARD | |
| 34 | 8043895 | GUARD | |
| 34 | 8049433 | GUARD | |
| 35 | 4018545 | WASHER | |
| 36 | J932050 | BOLT | |
| 36 | 4265552 | BOLT | |
| 37 | А590920 | WASHER, SPRING | |
| 44 | 4213169 | BLOCK | |
| 45 | J931850 | BOLT | |
| 46 | А590918 | WASHER, SPRING | |
| 50 | 3037494 | COVER | |
| 51 | 3037499 | COVER | |
| 53 | 7017869 | COVER | |
| 54 | 7017870 | COVER | |
| 56 | 4198450 | COVER | |
| 58 | 449490 | WASHER | |
| 59 | А590912 | WASHER, SPRING | |
| 60 | J901225 | BOLT | |
| 61 | J901270 | BOLT | |
| 61 | J031270 | BOLT, SEMS | |
| 62 | 449490 | WASHER | |
| 63 | А590912 | WASHER, SPRING | |
| 64 | 4265608 | SРАСЕR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
