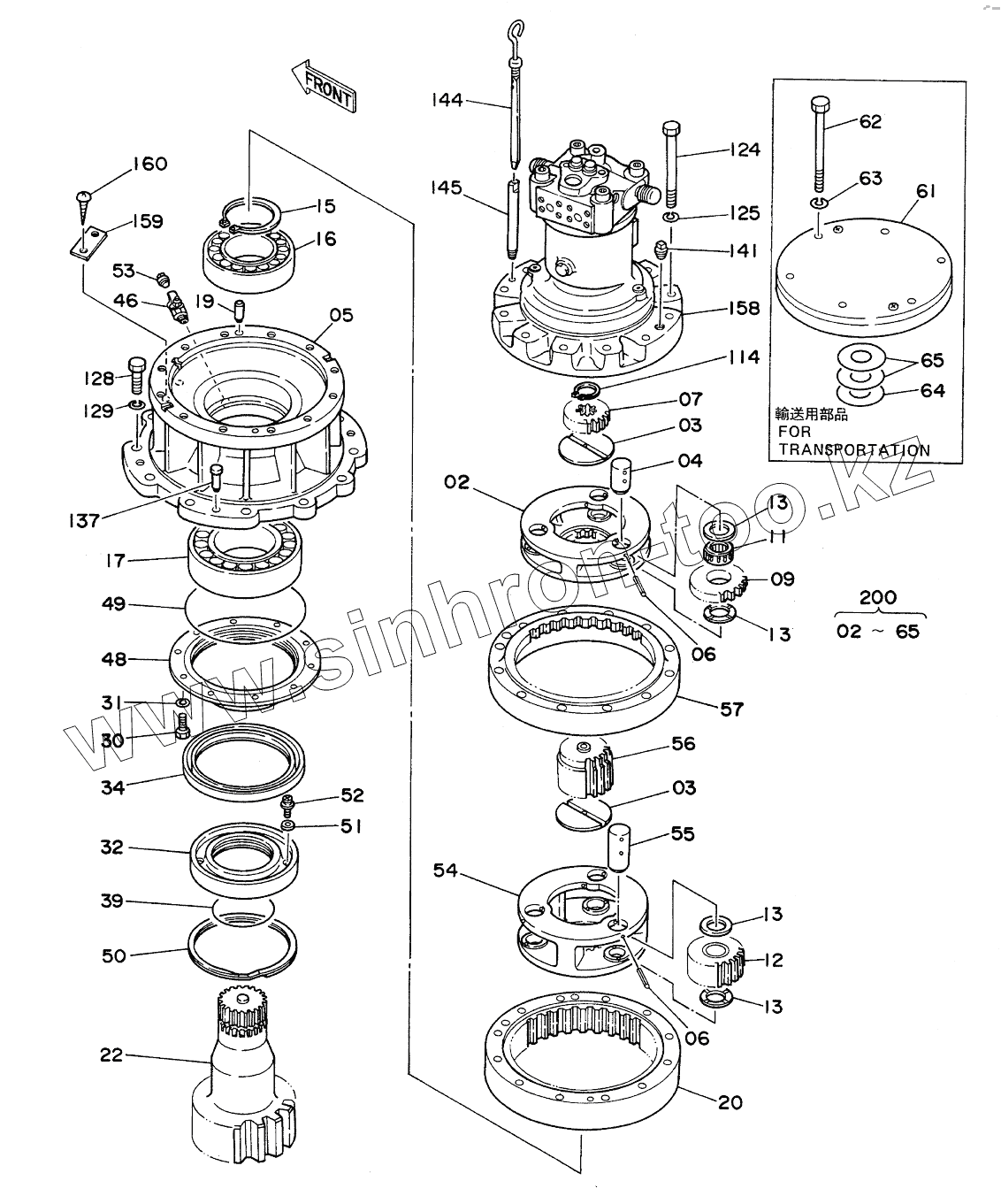

Каталог запасных частей к технике: Hitachi EX-300. SWING DEVICE
2
2
3
3
4
5
6
6
7
9
11
12
13
13
13
13
15
16
17
17
19
20
22
22
30
31
32
34
34
39
46
48
49
50
51
52
53
54
54
55
55
56
57
61
62
63
64
65
65
114
124
124
124
125
128
129
137
141
144
144
145
145
158
158
159
160
200
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 2023371 | CARRIER | |
| 3 | 4194454 | PLATE, THRUST | |
| 4 | 4187588 | PIN | |
| 5 | 1010618 | HOUSING | |
| 6 | 986954 | РIN, SРRING | |
| 7 | 3036571 | GEAR, SUN | |
| 9 | 3036572 | GEAR, PLANETARY | |
| 11 | 4187318 | BRG., NEEDLE | |
| 12 | 9726338 | GEAR, PLANETARY | |
| 13 | 4187591 | PLATE, THRUST | |
| 15 | 991354 | RING, RЕТАINING | |
| 16 | 4176247 | ВRG., SРООL | |
| 17 | 4019558 | BRG., ROL. | |
| 17 | 4305425 | ВRG., SРН.RОL. | |
| 19 | J401640 | PIN, KNOCK | |
| 20 | 2023381 | GEAR, INTERNAL | |
| 22 | 2023369 | SHAFT, PROP. | |
| 22 | 2034610 | SHAFT, PROP. | |
| 30 | J901235 | BOLT | |
| 31 | А590912 | WASHER, SPRING | |
| 32 | 2024789 | SLEEVE | |
| 34 | 4187681 | SEAL, OIL | |
| 34 | 4250326 | SEAL, OIL | |
| 39 | А811140 | О-RING | |
| 46 | 4194712 | COCK | |
| 48 | 3039026 | COVER | |
| 49 | 4204138 | O-RING | |
| 50 | 4206425 | RING, RETAINING | |
| 51 | 4204644 | MAGNET | |
| 52 | 4204645 | SCREW | |
| 53 | 94-2024 | PLUG | |
| 54 | 2033936 | CARRIER | |
| 54 | 2024993 | CARRIER | |
| 55 | 4207808 | PIN | |
| 55 | 4244694 | РIN | |
| 56 | 3039518 | GEAR, SUN | |
| 57 | 2024994 | GEAR, INTERNAL | |
| 61 | 8043498 | COVER | |
| 62 | J902015 | BOLT | |
| 63 | A590920 | WASHER, SPRING | |
| 64 | 4232537 | SHIM 0.5 | |
| 65 | 4232696 | SHIM 1.0 | |
| 114 | 959499 | RING, RETAINING | |
| 124 | J912016 | BOLT | |
| 124 | J912017 | BOLT | |
| 124 | J912013 | BOLT | |
| 125 | A590920 | WASHER, SPRING | |
| 128 | J932270 | BOLT | |
| 129 | A590922 | WASHER, SPRING | |
| 137 | 4080398 | PIN, KNOCK | |
| 141 | 94-2025 | PLUG | |
| 144 | 3035979 | GAUGE, LEVEL | |
| 144 | 3043290 | GAUGE, LEVEL | |
| 145 | 4191879 | PIPE | |
| 145 | 4229787 | PIPE | |
| 158 | 4197829 | MOTOR, OIL | |
| 158 | 4224993 | MOTOR, OIL | |
| 159 | 3053093 | NAME-PLATE | |
| 160 | M492564 | SCREW, DRIVE | |
| 200 | 9083736 | SWING DEVICE | |
| 200 | 9097706 | SWING DEVICE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
