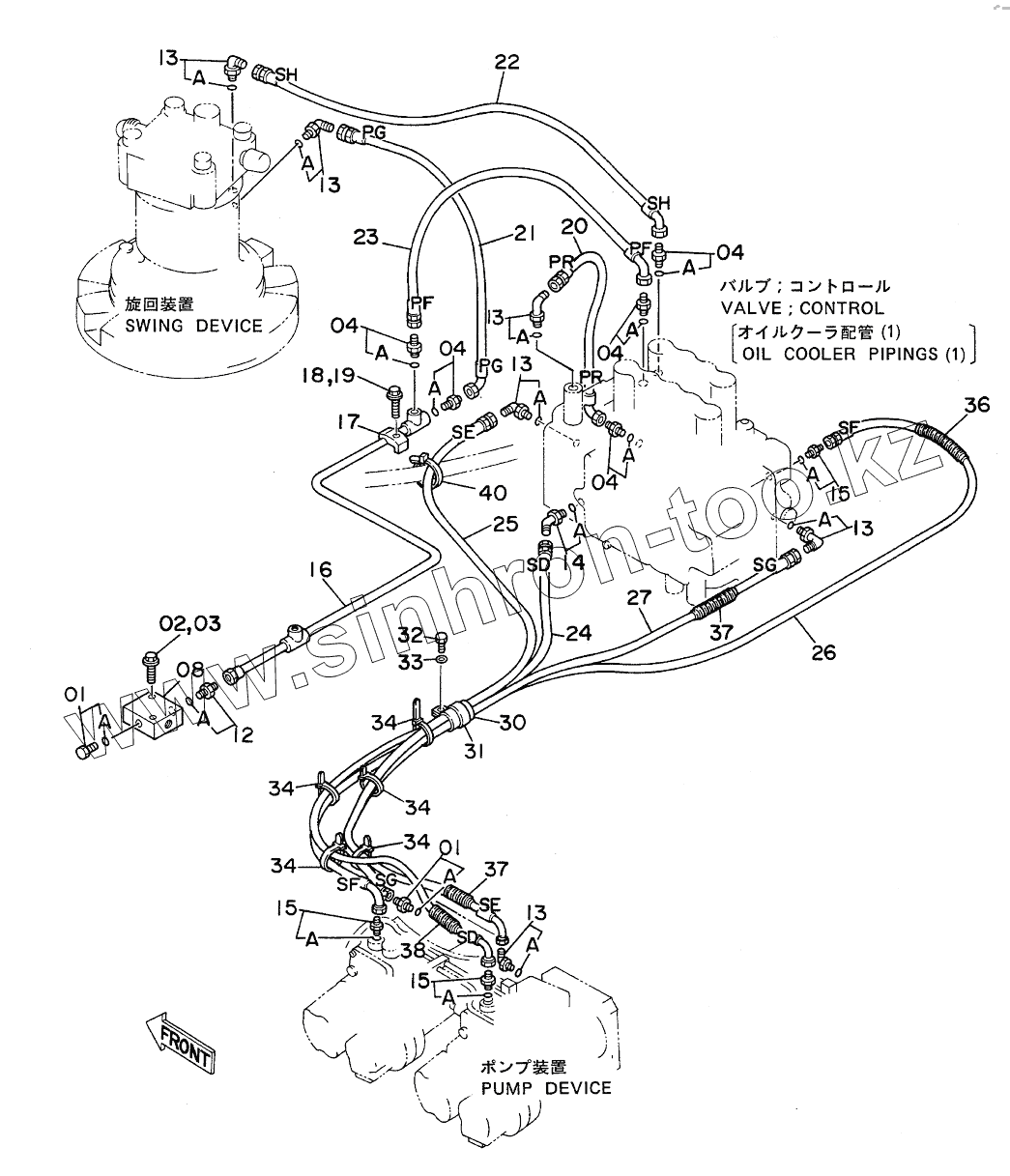

Каталог запасных частей к технике: Hitachi EX-300. PILOT PIPINGS (2) <DX>
01
01
01A
01A
02
02
02
03
04
04
04
04
04
04A
04A
04A
04A
04A
08
12
12A
13
13
13
13
13
13
13A
13A
13A
13A
13A
13A
14
14A
15
15
15
15A
15A
15A
16
17
18
18
19
20
21
21
22
23
24
25
26
27
30
31
32
33
34
34
34
34
34
36
37
37
38
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4093624 | PLUG | |
| 01A | 957366 | O-RING | |
| 02 | J901060 | BOLT | |
| 02 | J011060 | BOLT SEMS | |
| 02 | J021060 | BOLT, SEMS | |
| 03 | A590910 | WASHER, SPRING | |
| 04 | 4200465 | ADAPTER, S | |
| 04A | 957366 | O-RING | |
| 08 | 9072360 | VALVE, CHECK | |
| 12 | 4200466 | ADAPTER, S | |
| 12A | 4509180 | O-RING | |
| 13 | 4154670 | ELBOW, S | |
| 13A | 957366 | O-RING | |
| 14 | 4200472 | ELBOW, S | |
| 14A | 957366 | O-RING | |
| 15 | 4200467 | ADAPTER, S | |
| 15A | 957366 | O-RING | |
| 16 | 9727403 | PIPE | |
| 17 | 4190124 | СLАМР, РIРЕ | |
| 18 | J901245 | BOLT | |
| 18 | J011245 | BOLT, SEMS | |
| 19 | А590912 | WASHER, SPRING | |
| 20 | 4207960 | HOSE, NYLON | |
| 21 | 4207926 | HOSE, NYLON | |
| 21 | 4235282 | HOSE, NYLON | |
| 22 | 4207934 | HOSE, NYLON | |
| 23 | 4207925 | HOSE, NYLON | |
| 24 | 4207930 | HOSE | |
| 25 | 4207931 | HOSE, NYLON | |
| 26 | 4207932 | HOSE | |
| 27 | 4207933 | HOSE, NYLON | |
| 30 | 4219918 | BUSHING, RUBBER | |
| 31 | 4190265 | CLIP (50) | |
| 32 | J901020 | BOLT | |
| 33 | А590910 | WASHER, SPRING | |
| 34 | 4055311 | CLIP, BAND | |
| 36 | 4188522 | TUBE | |
| 37 | 4192593 | TUBE | |
| 38 | 4188520 | TUBE | |
| 40 | 4121859 | CLIP, BAND |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
