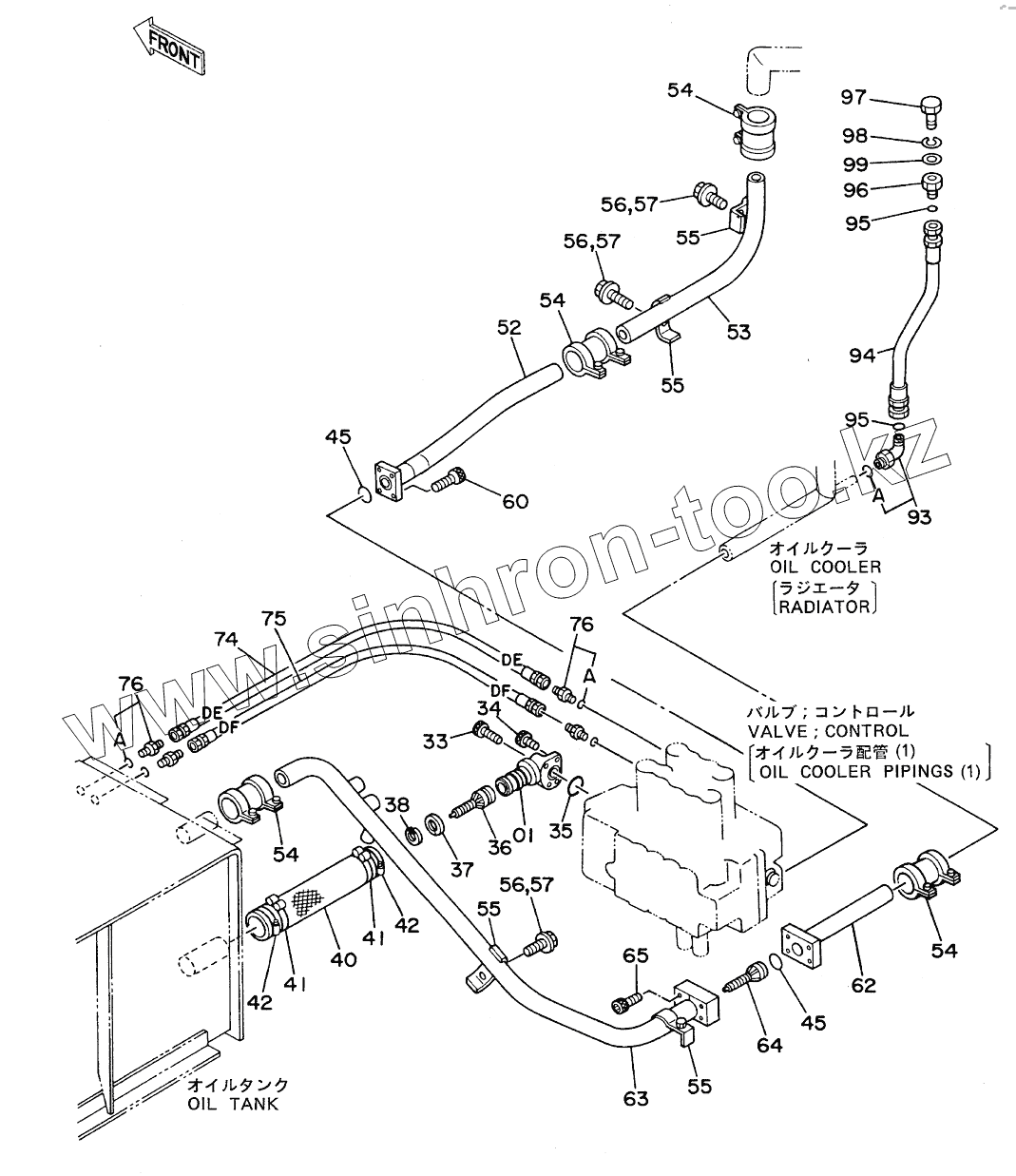

Каталог запасных частей к технике: Hitachi EX-300. OIL COOLER PIPINGS (2)
01
33
34
35
36
37
38
40
41
41
41
41
42
42
45
45
52
53
54
54
54
54
55
55
55
55
56
56
56
56
56
57
57
57
60
62
63
64
65
74
75
76
76
76A
76A
93
93A
94
95
95
96
97
98
99
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 2021682 | MANIFOLD | |
| 33 | M341060 | BOLT, SOCKET | |
| 34 | M341022 | BOLT, SOCKET | |
| 35 | A811040 | O-RING | |
| 36 | 4188627 | VALVE | |
| 37 | 4188628 | RING | |
| 38 | 991721 | RING, RETAINING | |
| 40 | 4197725 | HOSE, RUBBER | |
| 41 | 4156850 | CLAMP, HOSE | |
| 41 | 4263764 | CLAMP, HOSE | |
| 42 | 4504491 | CLAMP, HOSE | |
| 45 | A811045 | O-RING | |
| 52 | 8040250 | PIPE, RETURN | |
| 53 | 4213352 | PIPE, RETURN | |
| 54 | 4067834 | COUPLING | |
| 55 | 4053697 | CLAMP, PIPE | |
| 56 | J901270 | BOLT | |
| 56 | J011270 | BOLT, SEMS | |
| 57 | А590912 | WASHER, SPRING | |
| 60 | M341036 | BOLT, SOCKET | |
| 62 | 9728168 | PIPE, RETURN | |
| 63 | 7018515 | PIPE, RETURN | |
| 64 | 4204745 | VALVE | |
| 65 | M341265 | BOLT, SOCKET | |
| 74 | 4207953 | HOSE, NYLON | |
| 75 | 4207952 | HOSE, NYLON | |
| 76 | 4200465 | ADAPTER, S | |
| 76A | 957366 | O-RING | |
| 93 | 4157562 | ELBOW, S | |
| 93A | 4506424 | O-RING | |
| 94 | 4210310 | HOSE | |
| 95 | 4187308 | O-RING | |
| 96 | 4204882 | PLUG | |
| 97 | J901230 | BOLT | |
| 98 | А590912 | WASHER, SPRING | |
| 99 | A590112 | WASHER, PLANE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
