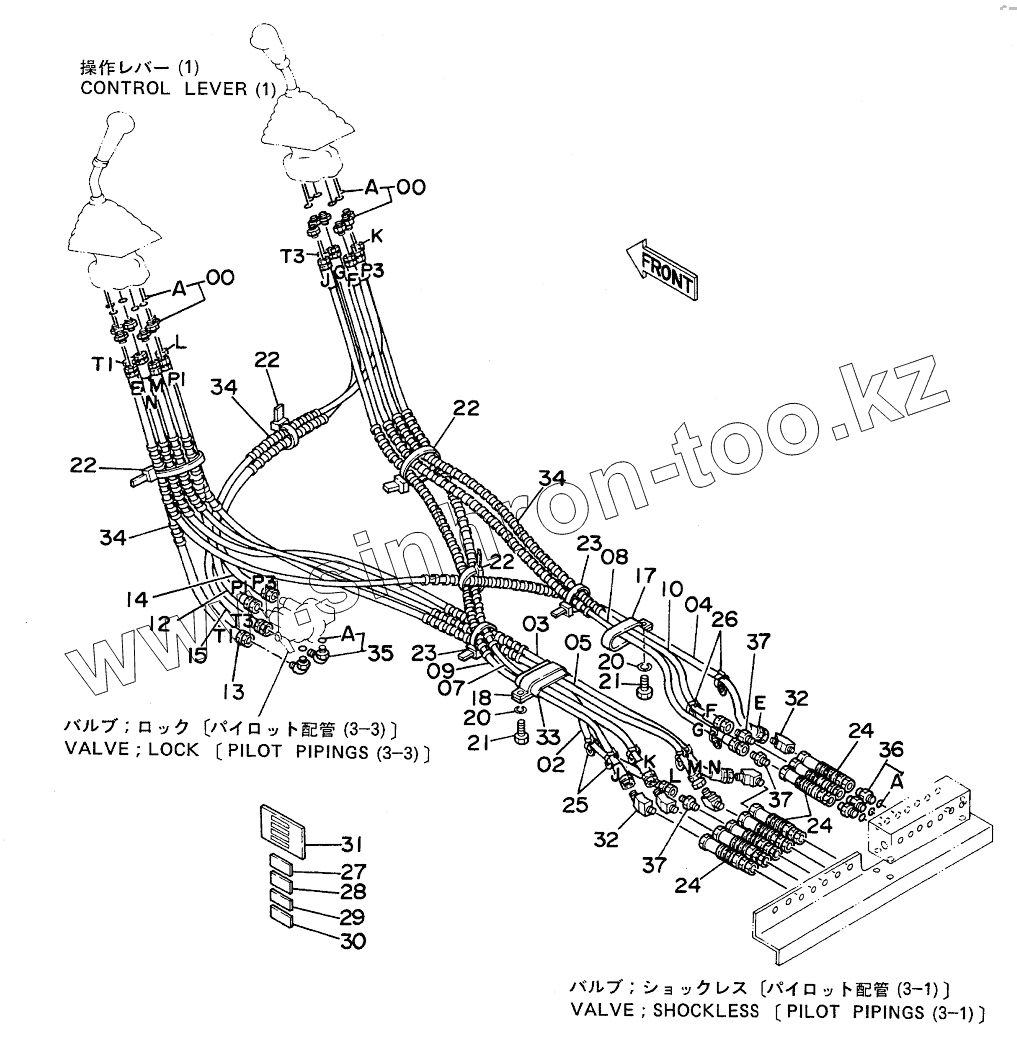

Каталог запасных частей к технике: Hitachi EX-300. MULT I-LEVER PIPINGS
00
00
00A
00A
02
03
04
05
07
08
09
10
12
13
14
15
17
18
20
20
21
21
22
22
22
22
23
23
24
24
24
25
26
27
28
29
30
31
32
32
33
34
34
34
35
35A
36
36A
37
37
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4200467 | ADAPTER, S | |
| 00A | 957366 | O-RING | |
| 02 | 4207901 | HOSE, NYLON | |
| 03 | 4207903 | HOSE, NYLON | |
| 04 | 4207396 | HOSE, NYLON | |
| 05 | 4207902 | HOSE, NYLON | |
| 07 | 4207900 | HOSE, NYLON | |
| 08 | 4207398 | HOSE, NYLON | |
| 09 | 4207399 | HOSE, NYLON | |
| 10 | 4207397 | HOSE, NYLON | |
| 12 | 4207904 | HOSE, NYLON | |
| 13 | 4203027 | HOSE NYLON | |
| 14 | 4207906 | HOSE, NYLON | |
| 15 | 4207983 | HOSE, NYLON | |
| 17 | 4193816 | CLIP | |
| 18 | 4192034 | CLIP | |
| 20 | А590910 | WASHER, SPRING | |
| 21 | J901018 | BOLT | |
| 22 | 4055312 | CLIP, BAND | |
| 23 | 4121859 | CLIP, BAND | |
| 24 | 4206057 | JOINT, SELF-SEAL | |
| 25 | 4207523 | PLATE | |
| 26 | 4055311 | CLIP, BAND | |
| 27 | 4207520 | PLATE | |
| 28 | 4207522 | PLATE | |
| 29 | 4207521 | PLATE | |
| 30 | 4207519 | PLATE | |
| 31 | 2024866 | PLATE | |
| 32 | 4157919 | ELBOW, S | |
| 33 | 4155962 | RUBBER | |
| 34 | 4149557 | PROTECTOR | |
| 35 | 4154671 | ELBOW | |
| 35A | 4509180 | O-RING | |
| 36 | 4200466 | ADAPTER, S | |
| 36A | 4509180 | O-RING | |
| 37 | ADAPTER, S | ADAPTER, S |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
