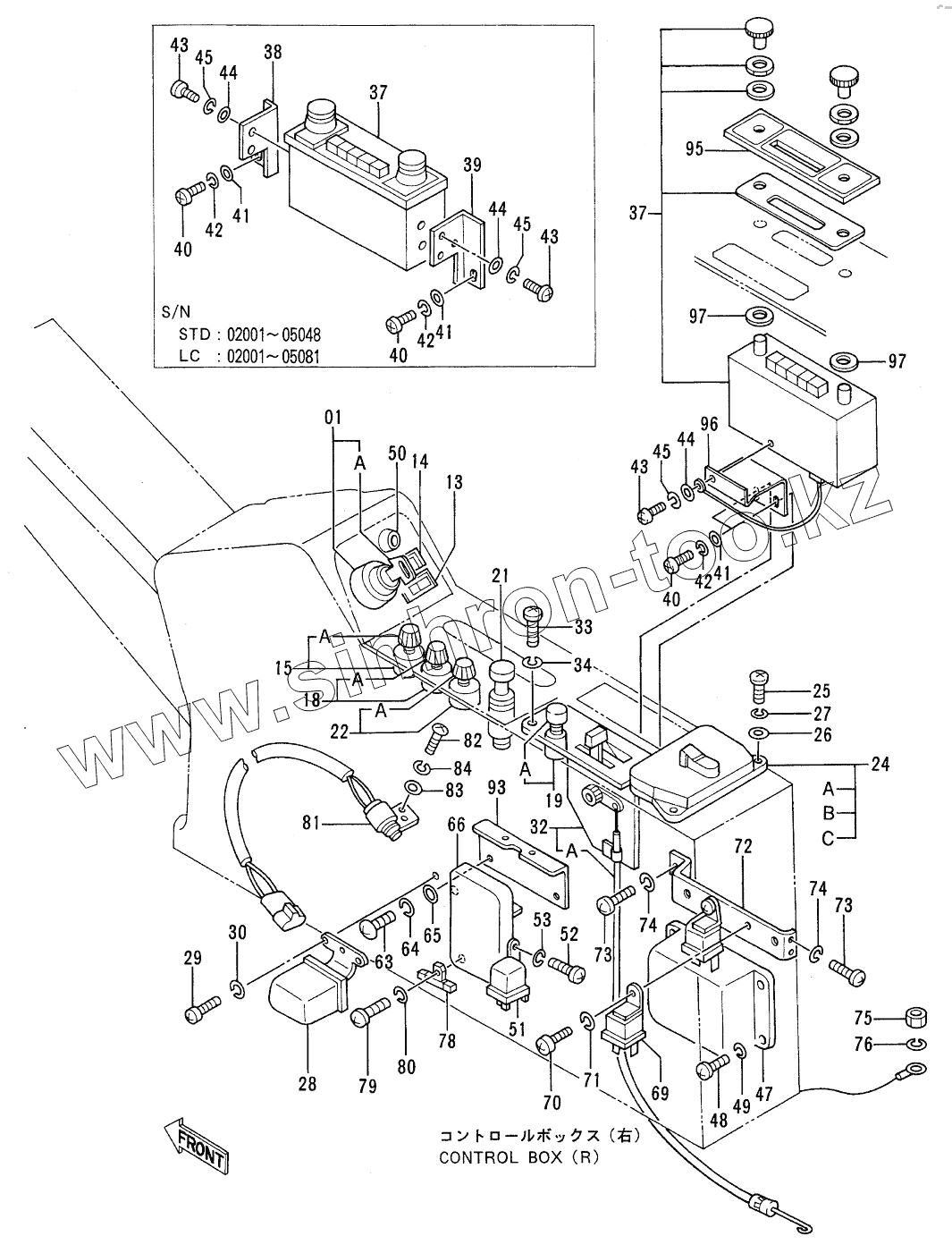

Каталог запасных частей к технике: Hitachi EX-300. ELECTRIC PARTS (1) <SDX>
01
01A
13
14
15
15A
18
18A
19
19A
21
22
22A
24
24A
24B
24C
25
26
27
28
29
30
32
32A
33
34
37
37
37
38
39
40
40
40
40
40
41
41
41
41
41
42
42
42
42
42
43
43
43
43
43
44
44
44
44
44
45
45
45
45
45
47
48
49
50
51
52
53
63
64
65
66
69
70
71
72
73
73
74
74
75
76
78
79
80
81
82
83
84
93
95
96
97
97
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4186743 | SWITCH, START | |
| 01A | 4187757 | KEY, START | |
| 13 | 4187088 | SWITCH | |
| 14 | 4187089 | SWITCH | |
| 15 | 4201802 | SWITCH | |
| 15A | 4268742 | KNOB | |
| 18 | 4184396 | SWITCH | |
| 18A | 4268740 | KNOB | |
| 19 | 4184397 | SWITCH | |
| 19A | 4268750 | KNOB | |
| 21 | 4184395 | LIGHTER | |
| 22 | 4184398 | SWITCH | |
| 22A | 4268741 | KNOB | |
| 24 | 4184394 | BOX, FUSE | |
| 24A | 4208246 | FUSE | |
| 24B | 4195610 | FUSE | |
| 24C | 4127781 | FUSE | |
| 25 | J850625 | SCREW | |
| 26 | J250006 | WASHER, PLANE | |
| 27 | J251006 | WASHER, SPRING | |
| 28 | 4505392 | RELAY | |
| 29 | M430610 | SCREW | |
| 30 | A590906 | WASHER, SPRING | |
| 32 | 4189169 | CONTROLLER | |
| 32A | 4248908 | CABLE | |
| 33 | J850410 | SCREW | |
| 34 | J251004 | WASHER, SPRING | |
| 37 | 4043976 | RADIO | |
| 37 | 4335726 | RADIO | |
| 38 | 4198945 | BRACKET | |
| 39 | 4198946 | BRACKET | |
| 40 | M430610 | SCREW | |
| 40 | M430610 | SCREW | |
| 41 | A590106 | WASHER | |
| 41 | A590106 | WASHER | |
| 42 | A590906 | WASHER, SPRING | |
| 42 | A590906 | WASHER, SPRING | |
| 43 | M430508 | SCREW | |
| 43 | M430508 | SCREW | |
| 44 | A590105 | WASHER, PLANE | |
| 44 | A590105 | WASHER, PLANE | |
| 45 | A590905 | WASHER, SPRING | |
| 45 | A590905 | WASHER, SPRING | |
| 47 | 9067007 | UNIT CONTROL | |
| 48 | M430610 | SCREW | |
| 49 | A590906 | WASHER, SPRING | |
| 50 | 4146754 | RUBBER | |
| 51 | 4038459 | RELAY, HOURMETER | |
| 52 | M430513 | SCREW | |
| 53 | A590905 | WASHER, SPRING | |
| 63 | N430610 | SCREW | |
| 64 | A590906 | WASHER, SPRING | |
| 65 | A590106 | WASHER | |
| 66 | 4214873 | TIMER | |
| 69 | 4205751 | RELAY | |
| 70 | M430816 | SCREW | |
| 71 | A590908 | WASHER, SPRING | |
| 72 | 9725858 | BRACKET | |
| 73 | M430616 | SCREW | |
| 74 | A590906 | WASHER, SPRING | |
| 75 | J950010 | NUT | |
| 76 | A590910 | WASHER, SPRING | |
| 78 | 4191772 | RESISTOR | |
| 79 | 4204811 | SCREW | |
| 80 | A590904 | WASHER, SPRING | |
| 81 | 4211194 | SWITCH | |
| 82 | M430413 | SCREW | |
| 83 | A590104 | WASHER | |
| 84 | A590904 | WASHER, SPRING | |
| 93 | 9727541 | BRACKET | |
| 95 | 4335462 | PLATE | |
| 96 | 3069095 | BRACKET | |
| 97 | A590110 | WASHER, PLANE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
