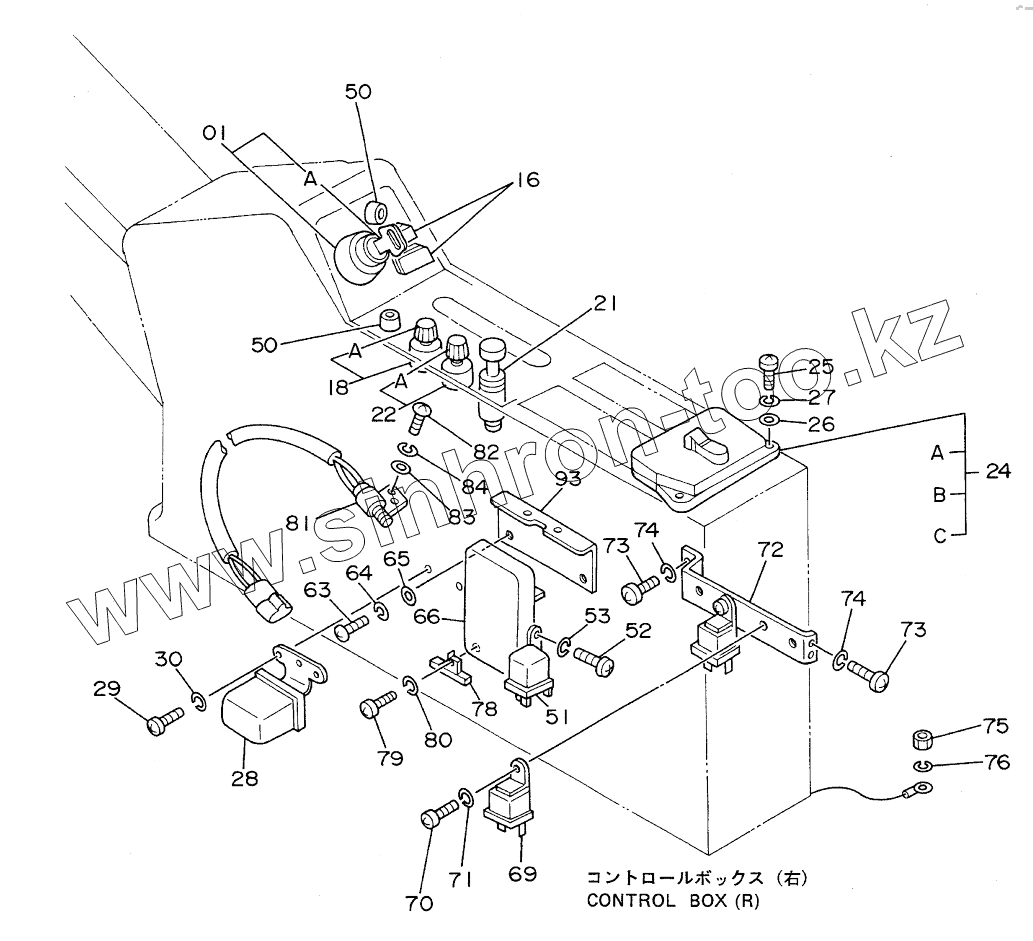

Каталог запасных частей к технике: Hitachi EX-300. ELECTRIC PARTS (1) <DX>
01
01A
16
18
18A
21
22
22A
24
24A
24B
24C
25
26
27
28
29
30
50
50
51
52
53
63
64
65
66
69
70
71
72
73
73
74
74
75
76
78
79
80
81
82
83
84
93
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4186743 | SWITCH, START | |
| 01A | 4187757 | KEY, START | |
| 16 | 4209103 | COVER | |
| 18 | 4184396 | SWITCH | |
| 18A | 4268740 | KNOB | |
| 21 | 4184395 | LIGHTER | |
| 22 | 4184398 | SWITCH | |
| 22A | 4268741 | KNOB | |
| 24 | 4184394 | BOX, FUSE | |
| 24A | 4208246 | FUSE | |
| 24B | 4195610 | FUSE | |
| 24C | 4127781 | FUSE | |
| 25 | J850625 | SCREW | |
| 26 | J250006 | WASHER, PLANE | |
| 27 | J251006 | WASHER, SPRING | |
| 28 | 4505392 | RELAY | |
| 29 | M430610 | SCREW | |
| 30 | A590906 | WASHER, SPRING | |
| 50 | 4146754 | RUBBER | |
| 51 | 4038459 | RELAY, HOURMETER | |
| 52 | M430513 | SCREW | |
| 53 | A590905 | WASHER, SPRING | |
| 63 | M430610 | SCREW | |
| 64 | A590906 | WASHER, SPRING | |
| 65 | A590106 | WASHER | |
| 66 | 4214873 | TIMER | |
| 69 | 4205751 | RELAY | |
| 70 | M430816 | SCREW | |
| 71 | A590908 | WASHER, SPRING | |
| 72 | 9725858 | BRACKET | |
| 73 | M430616 | SCREW | |
| 74 | A590906 | WASHER, SPRING | |
| 75 | J950010 | NUT | |
| 76 | A590910 | WASHER, SPRING | |
| 78 | 4191772 | RESISTOR | |
| 79 | 4204811 | SCREW | |
| 80 | A590904 | WASHER, SPRING | |
| 81 | 4211194 | SWITCH | |
| 82 | M430413 | SCREW | |
| 83 | А590104 | WASHER, PLANE | |
| 84 | А590904 | WASHER, SPRING | |
| 93 | 9727541 | BRACKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
