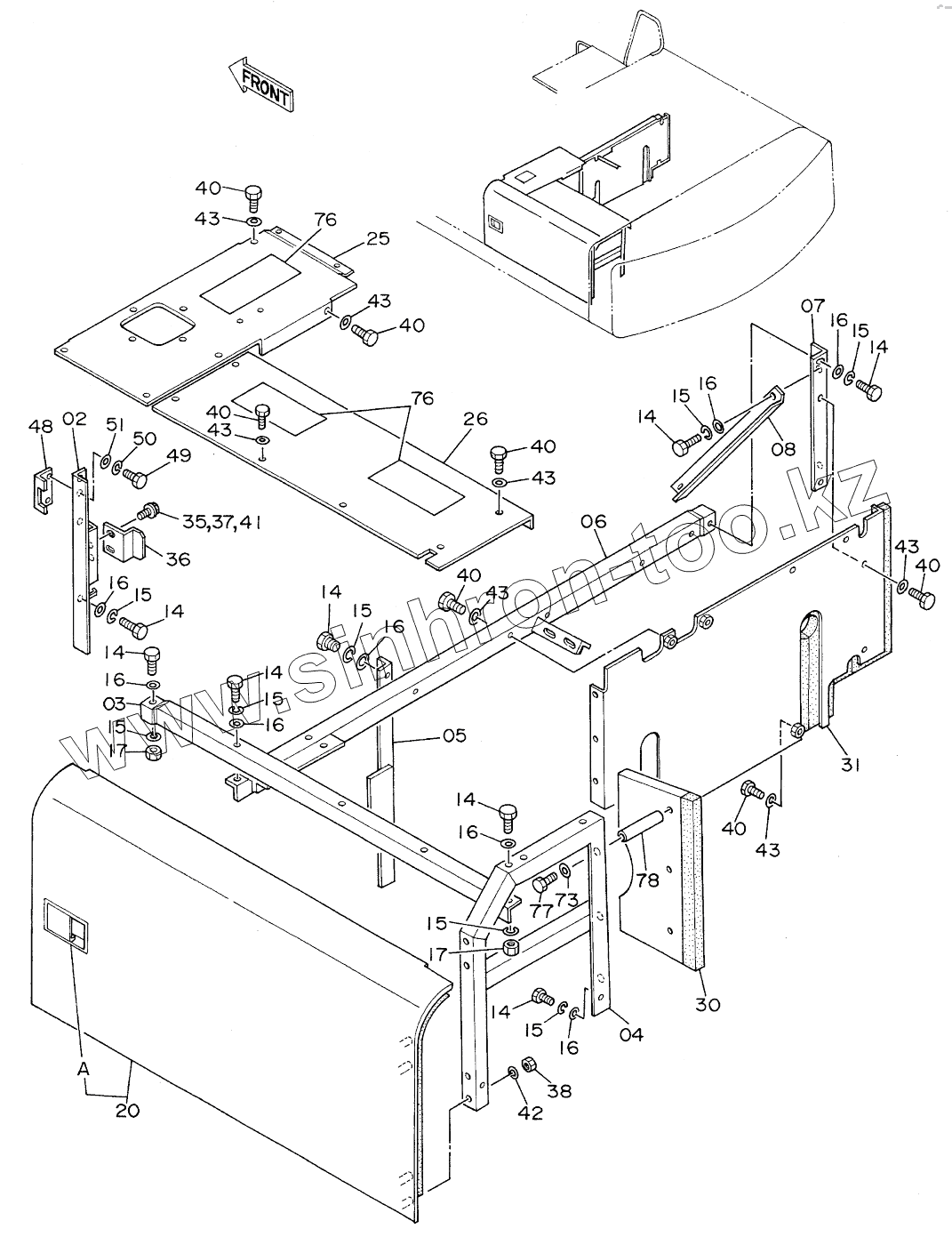

Каталог запасных частей к технике: Hitachi EX-300. COVER (1)
02
03
04
05
06
07
08
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
16
16
16
16
16
16
16
16
17
17
20
20A
25
26
30
31
35
36
37
38
40
40
40
40
40
40
40
41
41
42
43
43
43
43
43
43
43
48
49
50
51
73
76
76
77
77
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 02 | 9727094 | SUPPORT | |
| 03 | 8037685 | SUPPORT | |
| 04 | 8037687 | SUPPORT | |
| 05 | 8038008 | SUPPORT | |
| 06 | 8037686 | SUPPORT | |
| 07 | 8039813 | SUPPORT | |
| 08 | 4205850 | SUPPORT | |
| 14 | J901230 | BOLT | |
| 15 | А590912 | WASHER, SPRING | |
| 16 | A590112 | WASHER, PLANE | |
| 17 | J950012 | NUT | |
| 20 | 6007849 | DOOR | |
| 20A | 7017862 | DOOR LOCK | |
| 25 | 8037684 | COVER | |
| 26 | 4199361 | COVER | |
| 30 | 7018960 | COVER | |
| 31 | 7018685 | PLATE | |
| 35 | А590912 | WASHER, SPRING | |
| 36 | 4188492 | STOPPER | |
| 37 | A590112 | WASHER, PLANE | |
| 38 | J950012 | NUT | |
| 40 | J901225 | BOLT | |
| 41 | J901230 | BOLT | |
| 41 | J021230 | BOLT, SEMS | |
| 42 | А590912 | WASHER, SPRING | |
| 43 | A590112 | WASHER, PLANE | |
| 48 | 3037786 | BRACKET | |
| 49 | J900814 | BOLT | |
| 50 | A590908 | WASHER, SPRING | |
| 51 | A590108 | WASHER, PLANE | |
| 73 | А590912 | WASHER, SPRING | |
| 76 | 4073519 | TAPE 150X400 | |
| 77 | J901225 | BOLT | |
| 77 | J901206 | BOLT | |
| 78 | 4220757 | PIPE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
