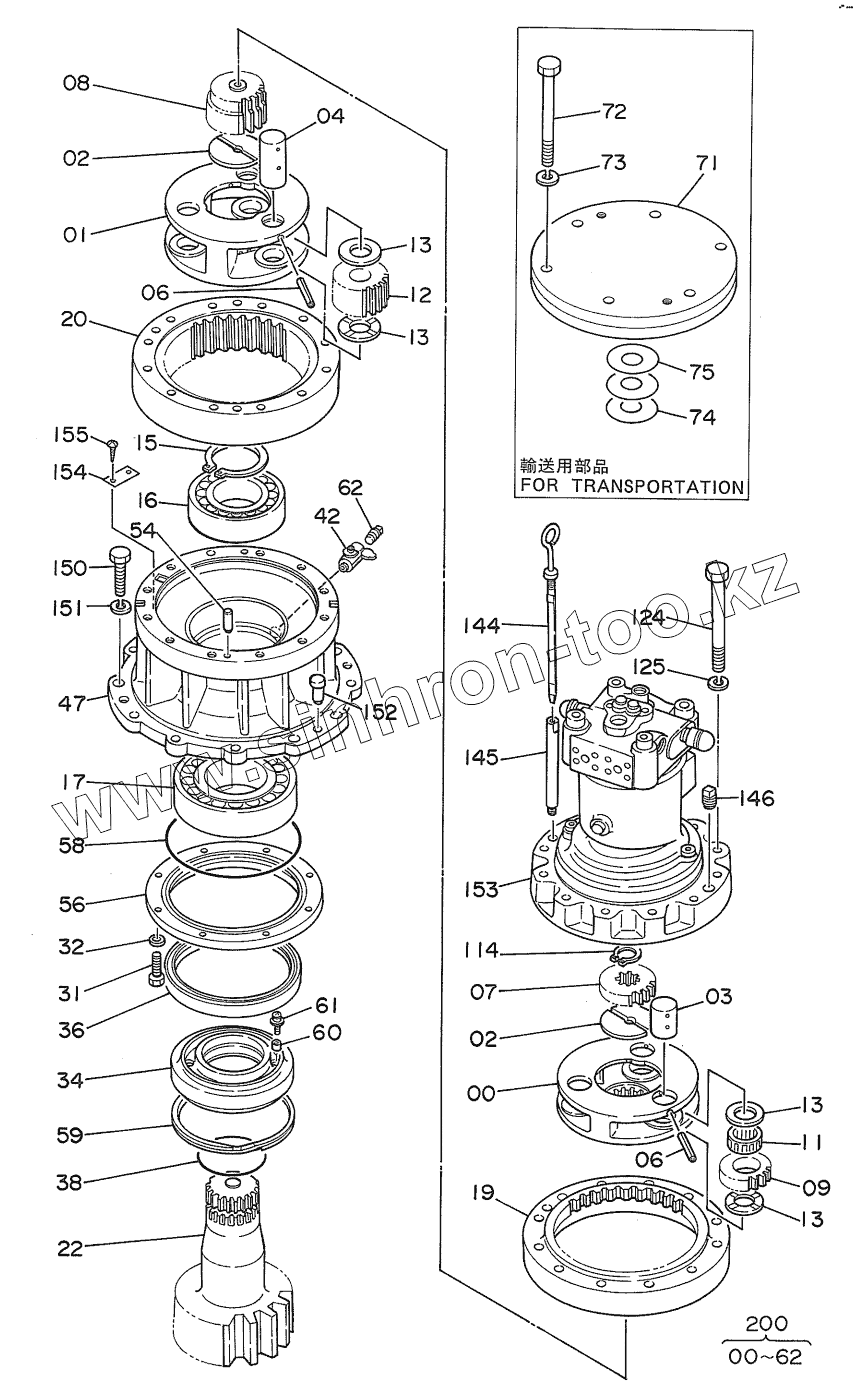

Каталог запасных частей к технике: Hitachi EX-270. SWING DEVICE
2023371
2023371
1
1
2
2
3
4
4
6
6
7
8
9
11
12
13
13
13
13
15
16
17
17
19
20
22
22
31
32
34
36
36
38
42
47
54
56
58
59
60
61
62
62
71
72
73
74
75
114
124
124
125
144
144
145
145
146
150
151
152
153
153
154
155
200
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2023371 | 2023371 | CARRIER | |
| 1 | 2024993 | CARRIER | |
| 1 | 2033936 | CARRIER | |
| 2 | 4194454 | PLATE, THRUST | |
| 3 | 4187588 | PIN | |
| 4 | 4207808 | PIN | |
| 4 | 4244694 | РIN | |
| 6 | 986954 | РIN, SРRING | |
| 7 | 3036571 | GEAR, SUN | |
| 8 | 3039518 | GEAR, SUN | |
| 9 | 3036572 | GEAR, PLANETARY | |
| 11 | 4187318 | BRG., NEEDLE | |
| 12 | 9726338 | GEAR, PLANETARY | |
| 13 | 4187591 | PLATE, THRUST | |
| 15 | 991354 | RING, RЕТАINING | |
| 16 | 4176247 | ВRG., SРООL | |
| 17 | 4019558 | BRG., ROL. | |
| 17 | 4305425 | ВRG., SРН.RОL. | |
| 19 | 2024994 | GEAR, INTERNAL | |
| 20 | 2023381 | GEAR, INTERNAL | |
| 22 | 2023369 | SHAFT, PROP. | |
| 22 | 2034610 | SHAFT, PROP. | |
| 31 | J901235 | BOLT | |
| 32 | А590912 | WASHER, SPRING | |
| 34 | 2024789 | SLEEVE | |
| 36 | 4187681 | SEAL, OIL | |
| 36 | 4250326 | SEAL, OIL | |
| 38 | А811140 | О-RING | |
| 42 | 4194712 | COCK | |
| 47 | 1010618 | HOUSING | |
| 54 | J401640 | PIN, KNOCK | |
| 56 | 3039026 | COVER | |
| 58 | 4204138 | O-RING | |
| 59 | 4206425 | RING, RETAINING | |
| 60 | 4204644 | MAGNET | |
| 61 | 4204645 | SCREW | |
| 62 | 94-2024 | PLUG | |
| 71 | 8043498 | COVER | |
| 72 | J901215 | BOLT | |
| 73 | А590920 | WASHER, SPRING | |
| 74 | 4232537 | SHIM 0.5 | |
| 75 | 4232696 | SHIM 1.0 | |
| 114 | 959499 | RING, RETAINING | |
| 124 | J912016 | BOLT | |
| 124 | J912013 | BOLT | |
| 125 | А590920 | WASHER, SPRING | |
| 144 | 3035979 | GAUGE, LEVEL | |
| 144 | 3043290 | GAUGE, LEVEL | |
| 145 | 4191879 | PIPE | |
| 145 | 4229787 | PIPE | |
| 146 | 94-2025 | PLUG | |
| 150 | J932270 | BOLT | |
| 151 | А590922 | WASHER | |
| 152 | 4080398 | PIN, KNOCK | |
| 153 | 4197831 | MOTOR, OIL | |
| 153 | 4224992 | MOTOR, OIL | |
| 154 | 3053093 | NAME-PLATE | |
| 155 | М492564 | SCREW, DRIVE | |
| 200 | 9083736 | SWING DEVICE | |
| 200 | 9097706 | SWING DEVICE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
