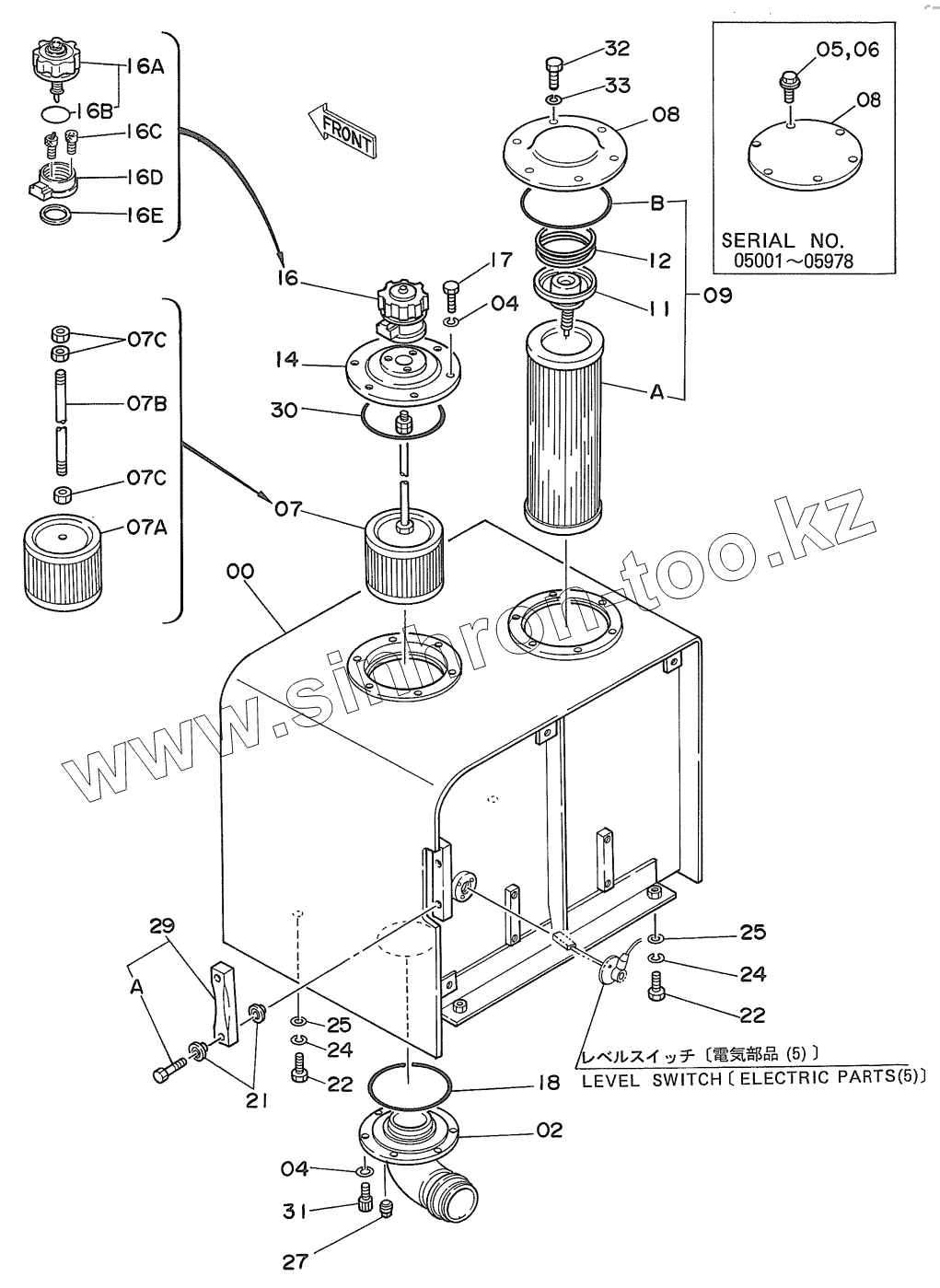

Каталог запасных частей к технике: Hitachi EX-270. OIL TANK
00
02
04
04
05
05
06
07
07A
07B
07C
07C
08
08
08
08
09
09A
09B
11
12
12
14
16
16A
16B
16C
16D
16E
17
18
21
22
22
24
24
25
25
27
29
29A
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 5001998 | TANK, OIL | |
| 02 | 2023377 | PIPE, SUCTI0N | |
| 04 | А590910 | WASHER, SPRING | |
| 05 | J901022 | BOLT | |
| 05 | J011022 | BOLT, SEMS | |
| 06 | А590910 | WASHER, SPRING | |
| 07 | 4210254 | FILTER, SUCTI0N | |
| 07A | 4210224 | STRAINER | |
| 07B | 4211107 | ROD | |
| 07C | J950010 | NUT | |
| 08 | 4204056 | COVER | |
| 08 | 4204057 | COVER | |
| 09 | 4206705 | ELEMENT, FILTER ASSY | |
| 09A | 4180416 | ELEMENT, FILTER | |
| 09B | А810190 | O-RING | |
| 11 | 4180414 | VALVE | |
| 12 | 4050732 | SPRING | |
| 12 | 4226549 | SPRING | |
| 14 | 8037809 | COVER | |
| 16 | 4178684 | breather, air | |
| 16A | 4222874 | FILTER | |
| 16B | 953612 | O-RING | |
| 16C | M340516 | bolt, socket | |
| 16D | 4222875 | CASE | |
| 16E | 4222876 | PACKING | |
| 17 | М111022 | BOLT | |
| 18 | А810160 | O-RING | |
| 21 | 449558 | WASHER, SEAL | |
| 22 | J901635 | BOLT | |
| 23 | J901645 | BOLT | |
| 24 | А590916 | WASHER, SPRING | |
| 25 | 4114405 | WASHER | |
| 27 | 94-2011 | PLUG | |
| 29 | 8039909 | GAUGE, LEVEL | |
| 29A | 4100967 | BOLT | |
| 30 | А810160 | O-RING | |
| 31 | М351028 | BOLT, SOCKET | |
| 32 | J901016 | BOLT | |
| 33 | А590910 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
