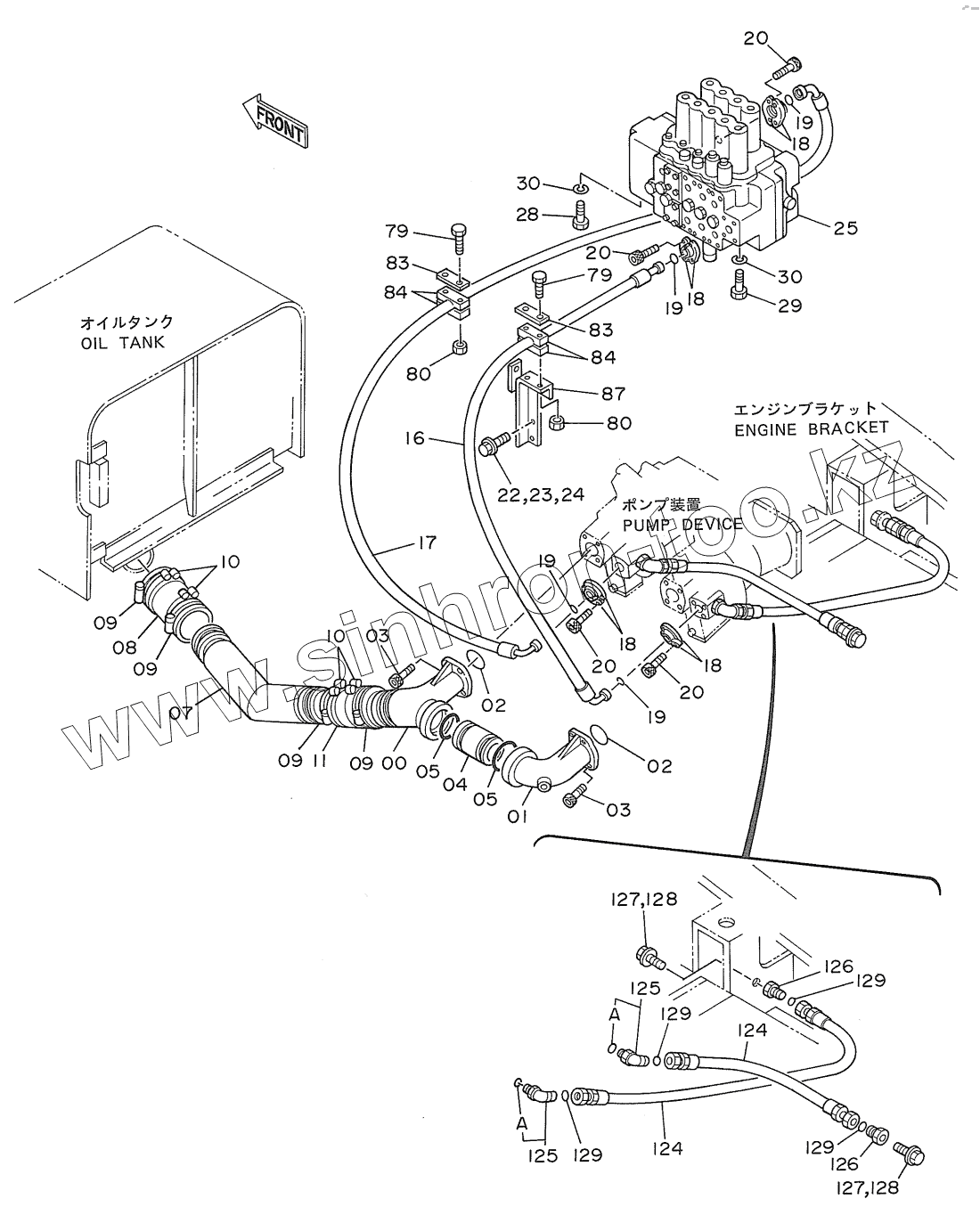

Каталог запасных частей к технике: Hitachi EX-270. OIL COOLER PIPINGS (1)
00
01
02
02
03
03
04
05
05
05
05
07
07
08
09
09
09
09
10
10
10
10
11
11
16
17
17
18
18
18
18
19
19
19
19
20
20
20
20
22
22
23
24
25
25
28
29
30
30
79
79
80
80
83
83
84
84
87
124
124
125
125
125A
125A
126
126
127
127
127
128
128
129
129
129
129
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 2023451 | MANIFOLD | |
| 01 | 2023450 | MANIFOLD | |
| 02 | А811075 | O-RING | |
| 03 | M341228 | BOLT, SOCKET | |
| 04 | 3036667 | PIPE | |
| 05 | 4071222 | O-RING | |
| 05 | 4113155 | O-RING | |
| 07 | 8036978 | PIPE, SUCTION | |
| 07 | 8040732 | PIPE, SUCTION | |
| 08 | 4193871 | HOSE, RUBBER | |
| 09 | 4512716 | CLAMP, HOSE | |
| 10 | 4193872 | CLAMP, HOSE | |
| 10 | 4263766 | CLAMP, HOSE | |
| 11 | 4193871 | HOSE, RUBBER | |
| 11 | 4215941 | HOSE, RUBBER | |
| 16 | 4193825 | HOSE | |
| 17 | 4193824 | HOSE | |
| 17 | 4222028 | HOSE | |
| 18 | 4085560 | FLANGE | |
| 19 | 966993 | O-RING | |
| 20 | M341245 | BOLT, SOCKET | |
| 22 | J901235 | BOLT | |
| 22 | J021235 | BOLT, SEMS | |
| 23 | А590912 | WASHER, SPRING | |
| 24 | А590112 | WASHER, PLANE | |
| 25 | 4197830 | VALVE, CONTROL | |
| 25 | 4224898 | VALVE, CONTROL | |
| 28 | J901635 | BOLT | |
| 29 | J901640 | BOLT | |
| 30 | А590916 | WASHER, SPRING | |
| 79 | J901090 | BOLT | |
| 80 | J950010 | NUT | |
| 83 | 4195494 | PLATE | |
| 84 | 4194953 | CLAMP | |
| 87 | 8035747 | SUPPORT | |
| 124 | 4196299 | HOSE | |
| 125 | 4157562 | ELBOW, S | |
| 125A | 4506424 | O-RING | |
| 126 | 4204882 | PLUG | |
| 127 | J901235 | BOLT | |
| 127 | J011235 | BOLT, SEMS | |
| 128 | А590912 | WASHER, SPRING | |
| 129 | 4187308 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
