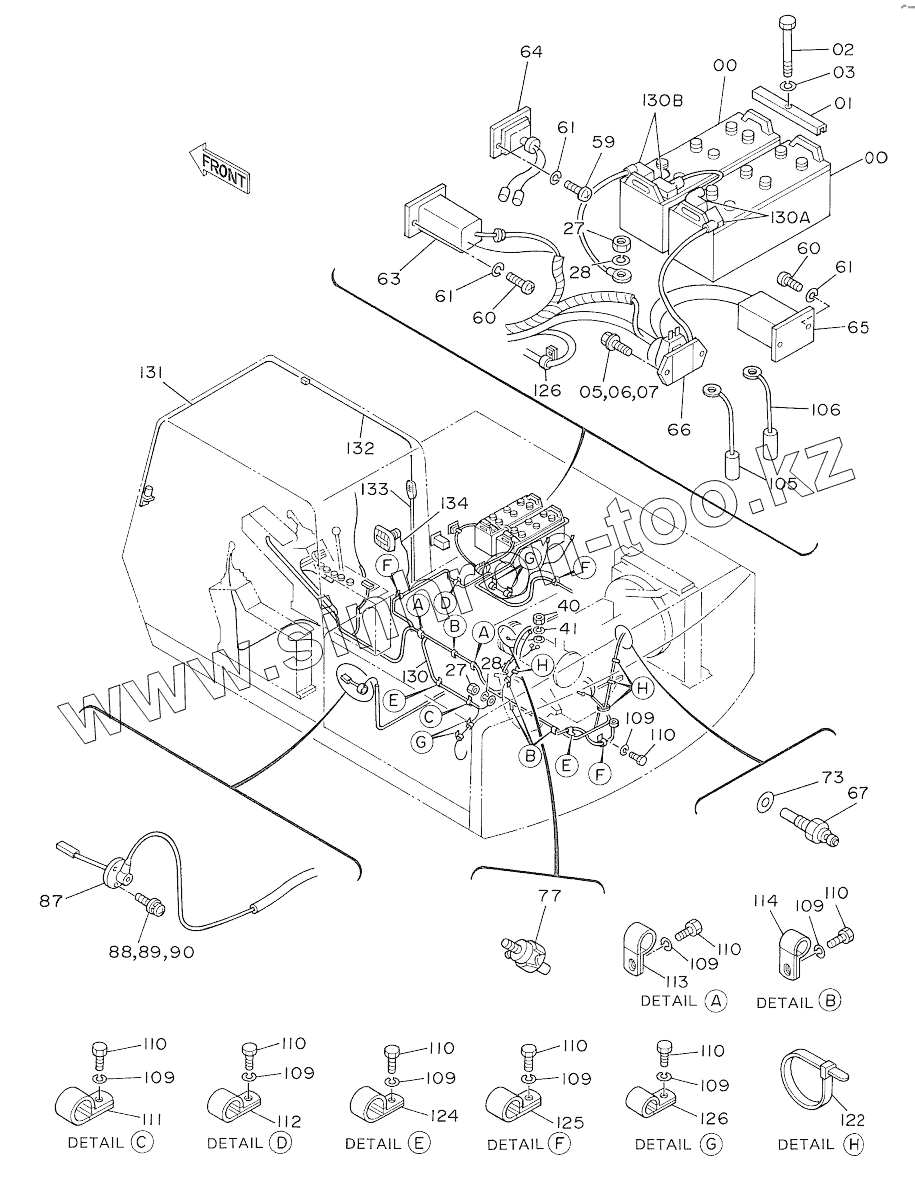

Каталог запасных частей к технике: Hitachi EX-270. ELECTRIC PARTS (5) <SDX>
00
00
00
00
01
02
03
05
05
06
07
27
27
28
28
40
41
59
60
60
61
61
61
63
64
65
66
67
73
77
87
88
88
89
90
105
106
109
109
109
109
109
109
109
109
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
111
112
113
114
122
122
124
125
126
126
130
130A
130B
131
132
133
134
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4190698 | BATTERY | |
| 00 | 4237921 | BATTERY | |
| 01 | 445214 | SUPPORT | |
| 02 | 4140208 | BOLT | |
| 03 | А590910 | WASHER, SPRING | |
| 05 | J900828 | BOLT | |
| 05 | J020828 | BOLT, SEMS | |
| 06 | А590908 | WASHER, SPRING | |
| 07 | А590108 | WASHER, PLANE | |
| 27 | J950010 | NUT | |
| 28 | А590910 | WASHER, SPRING | |
| 40 | М500807 | NUT | |
| 41 | А590908 | WASHER, SPRING | |
| 59 | И430613 | SCREW | |
| 60 | М430620 | SCREW | |
| 61 | А590906 | WASHER, SPRING | |
| 63 | 4205749 | RELAY, SAFETY | |
| 64 | 4172004 | REGULATOR | |
| 65 | 4167794 | RELAY, EMERGENCY | |
| 66 | 4168218 | RELAY, BATTERY | |
| 67 | 4187223 | UNIT | |
| 73 | 4164304 | PACKING | |
| 77 | 4148963 | INDICATOR | |
| 87 | 4151888 | SWITCH, LEVEL | |
| 88 | M430513 | SCREW | |
| 88 | J460514 | SCREW, SEMS | |
| 89 | А590905 | WASHER, SPRING | |
| 90 | А590105 | WASHER, PLANE | |
| 105 | 4191038 | FUSIBLE-LINK | |
| 106 | 4191773 | FUSIBLE-LINK | |
| 109 | А590910 | WASHER, SPRING | |
| 109 | А590910 | WASHER, SPRING | |
| 110 | J901018 | BOLT | |
| 110 | J901018 | BOLT | |
| 111 | 4190261 | CLIP | |
| 112 | 4190253 | CLIP | |
| 113 | 4190277 | CLIP | |
| 114 | 4192035 | CLIP | |
| 122 | 4055312 | CLIP, BAND | |
| 122 | 4055312 | CLIP, BAND | |
| 124 | 4190275 | CLIP | |
| 125 | 4190273 | CLIP | |
| 126 | 4190271 | CLIP | |
| 130 | 4200295 | HARNESS, WIRE | |
| 130A | 4256240 | CAP | |
| 130B | 4256241 | CAP | |
| 131 | 4229055 | HARNESS WIRE | |
| 132 | 4229056 | HARNESS WIRE | |
| 133 | 4229057 | HARNESS WIRE | |
| 134 | 4229058 | HARNESS WIRE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
