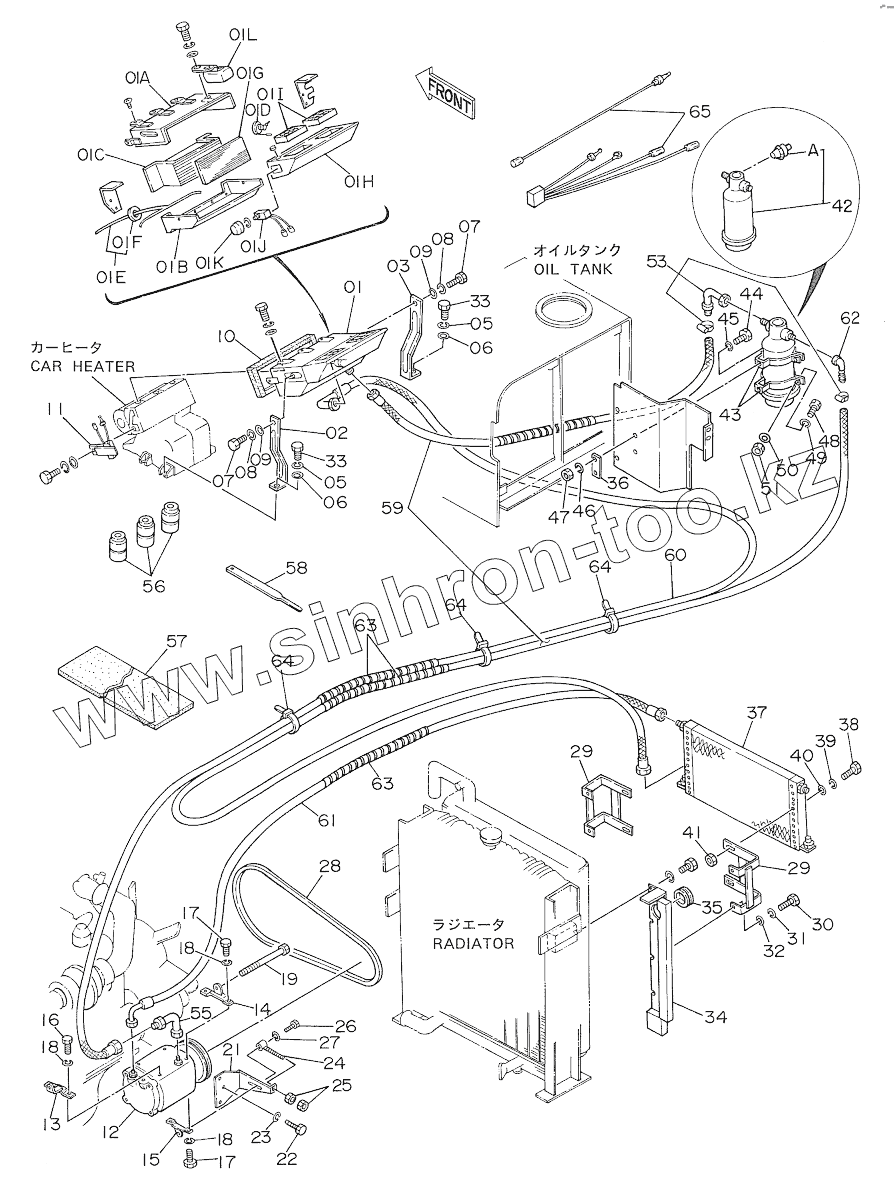

Каталог запасных частей к технике: Hitachi EX-270. CAR COOLER
01
01A
01B
01C
01D
01E
01F
01G
01H
01I
01J
01K
01L
02
03
05
05
06
06
07
07
08
08
09
09
10
11
12
13
14
15
16
17
17
18
18
18
19
21
22
23
24
25
26
27
28
29
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
42A
43
44
45
46
47
48
49
50
51
53
55
56
57
58
59
60
61
62
63
63
64
64
64
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4080640 | COOLER-UNIT | |
| 01A | 0228201 | CASE | |
| 01B | 0228202 | CASE | |
| 01C | 0228203 | EVAPORATOR | |
| 01D | 0228204 | THERMO-VALVE | |
| 01E | 0228205 | HOSE, DRAIN | |
| 01F | 0228206 | BUSHING, RUBBER | |
| 01G | 0228207 | STRAINER | |
| 01H | 0228208 | PANEL | |
| 01I | 0228209 | GRILLE | |
| 01J | 0228210 | THERMOSTAT | |
| 01K | 0228211 | KNOB | |
| 01L | 0228212 | RELAY | |
| 02 | 0228213 | COOLER BRACKET | |
| 03 | 0228214 | COOLER BRACKET | |
| 05 | А590910 | WASHER, SPRING | |
| 06 | А590110 | WASHER, PLANE | |
| 07 | M200613 | BOLT | |
| 08 | A590906 | WASHER, SPRING | |
| 09 | A590106 | WASHER | |
| 10 | 4110899 | CUSHION | |
| 11 | 4158681 | SWITCH, MICRO | |
| 12 | 4080641 | COMPRESSOR | |
| 13 | 9726983 | BRACKET | |
| 14 | 9726982 | BRACKET | |
| 15 | 9726984 | BRACKET | |
| 16 | M111025 | BOLT | |
| 17 | M111022 | BOLT | |
| 18 | А590910 | WASHER, SPRING | |
| 19 | 4198173 | BOLT | |
| 21 | 2023856 | BRACKET | |
| 22 | J901022 | BOLT | |
| 23 | А590910 | WASHER, SPRING | |
| 24 | 9800676 | BOLT | |
| 25 | M501008 | NUT | |
| 26 | M210840 | BOLT | |
| 27 | А590908 | WASHER, SPRING | |
| 28 | 4198588 | BELT, V | |
| 29 | 8037659 | BRACKET | |
| 30 | J900825 | BOLT | |
| 31 | А590908 | WASHER, SPRING | |
| 32 | А590108 | WASHER, PLANE | |
| 33 | J901025 | BOLT | |
| 34 | 8037841 | PLATE | |
| 35 | 94-2812 | BUSHING, RUBBER | |
| 36 | 4208668 | PLATE | |
| 37 | 4045674 | CONDENSER | |
| 38 | M200640 | BOLT | |
| 39 | А590906 | WASHER, SPRING | |
| 40 | А590106 | WASHER, PLANE | |
| 41 | M500605 | NUT | |
| 42 | 4080644 | LIQUID-TANK | |
| 42A | 4338303 | SWITCH, PRES. | |
| 43 | 4045673 | BRACKET | |
| 44 | М200816 | BOLT | |
| 45 | А590908 | WASHER, SPRING | |
| 46 | А590108 | WASHER, PLANE | |
| 47 | М500807 | NUT | |
| 48 | М200620 | BOLT | |
| 49 | А590906 | WASHER, SPRING | |
| 50 | А590106 | WASHER, PLANE | |
| 51 | М500605 | NUT | |
| 53 | 0228217 | ADAPTER-SET | |
| 55 | 4045670 | ELBOW | |
| 56 | 0228216 | GAS, FL0N | |
| 57 | 4231342 | CUSHION | |
| 58 | 4231343 | BAND | |
| 59 | 4198280 | HOSE, COOLER | |
| 60 | 4143121 | HOSE, COOLER | |
| 61 | 4198281 | HOSE, COOLER | |
| 62 | 4121984 | ADAPTER, HOSE | |
| 63 | 4044420 | PROTECTOR | |
| 64 | 4055312 | CLIP, BAND | |
| 65 | 0228215 | HARNESS, WIRE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
