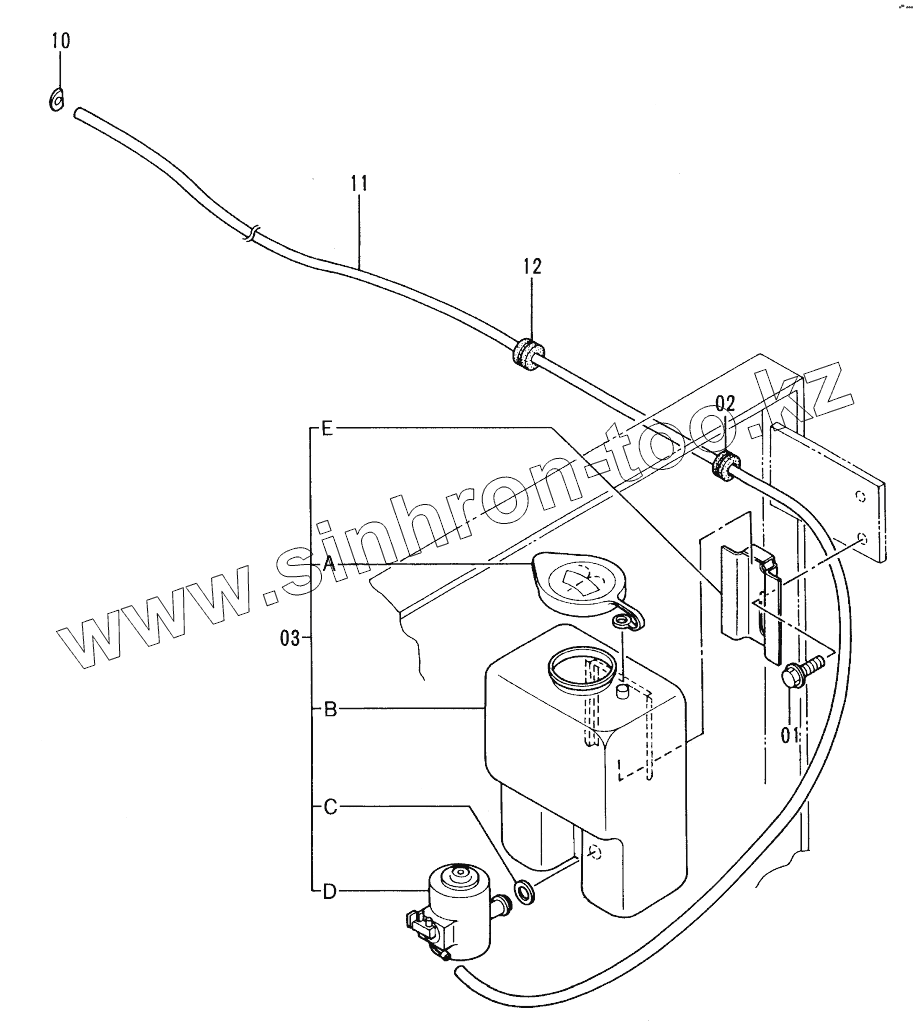

01
02
03
03A
03B
03C
03D
03E
10
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
01
J020620
BOLT, SEMS
02
94-2817
BUSHING, RUBBER
03
4282792
WINDOW, WASHER
03A
4323353
CAP
03B
4323354
TANK
03C
4323355
BUSHING
03D
4323356
PUMP ASSY
03E
4323357
CLAMP
10
4282793
NOZZLE
11
4283047
HOSE, VINYL
12
4287903
BUSHING, RUBBER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
