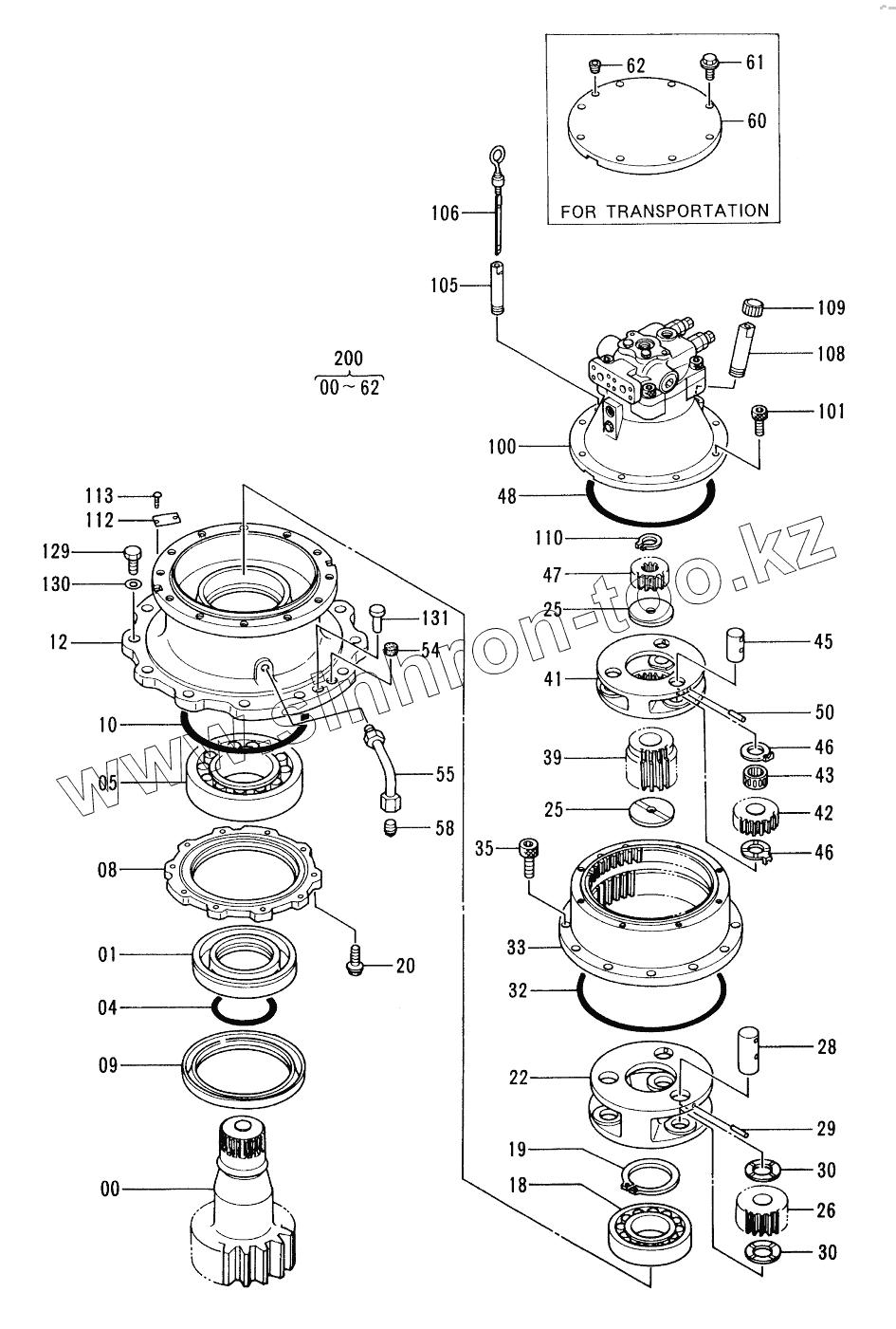

Каталог запасных частей к технике: Hitachi EX-220-2. SWING DEVICE
2028849
2028849
1
4
5
8
8
9
10
12
12
12
18
19
20
22
25
25
26
28
29
30
30
32
33
35
39
41
42
43
45
46
46
47
48
50
54
55
58
60
61
62
62
100
101
105
106
108
109
109
109
110
112
113
129
130
131
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2028849 | 2028849 | SHAFT, PROP. | |
| 1 | 4253309 | SLEEVE | |
| 4 | A810130 | O-RING | |
| 5 | 4252834 | BRG,, SPH.ROL. | |
| 8 | 3050048 | COVER | |
| 8 | 3060561 | СОVЕR | |
| 9 | 4253308 | SEAL, OIL | |
| 10 | 4247590 | O-RING | |
| 12 | 1014564 | HOUSING | |
| 12 | 1017263 | HOUSING | |
| 18 | 4504706 | BRG., SPH.ROL. | |
| 19 | 942480 | RING, RETAINING | |
| 20 | J011240 | BOLT | |
| 22 | 1014562 | CARRIER | |
| 25 | 4187590 | PLATE, THRUST | |
| 26 | 9734089 | GEAR, PLANETARY | |
| 28 | 4253311 | PIN | |
| 29 | 986954 | РIN, SРRING | |
| 30 | 4266934 | РLАТЕ, ТНRUSТ | |
| 32 | 4203188 | О-RING | |
| 33 | 1014483 | GEAR, RING | |
| 35 | M341850 | BOLT, SOCKET | |
| 39 | 3050047 | GEAR, SUN | |
| 41 | 1014563 | CARRIER | |
| 42 | 3050050 | GEAR, PLANETARY | |
| 43 | 4183108 | BRG. NEEDLE | |
| 45 | 4246249 | PIN | |
| 46 | 4269482 | PLATE, THRUST | |
| 47 | 3050046 | GEAR, SUN | |
| 48 | 4252835 | O-RING | |
| 50 | 4144020 | PIN, SPRING | |
| 54 | 431578 | СОRК | |
| 55 | 8050212 | РIРЕ | |
| 58 | 94-2013 | PLUG | |
| 60 | 8053415 | COVER | |
| 61 | J011255 | BOLT, SEMS | |
| 62 | 94-2011 | PLUG | |
| 100 | 4255503 | MOTOR, OIL | |
| 101 | M341228 | BOLT, SOCKET | |
| 105 | 4264452 | PIPE | |
| 106 | 3053451 | GAUGE, LEVEL | |
| 108 | 4262343 | PIPE | |
| 109 | 4262342 | CAP | |
| 109 | 4298572 | CAP | |
| 110 | 991342 | RING, RETAINING | |
| 112 | 3053093 | NAME-PLATE | |
| 113 | M492564 | SCREW, DRIVE | |
| 129 | J932270 | BOLT | |
| 130 | 4089822 | WASHER | |
| 131 | 4080398 | PIN, KNOCK | |
| 200 | 9111267 | SWING DEVICE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
