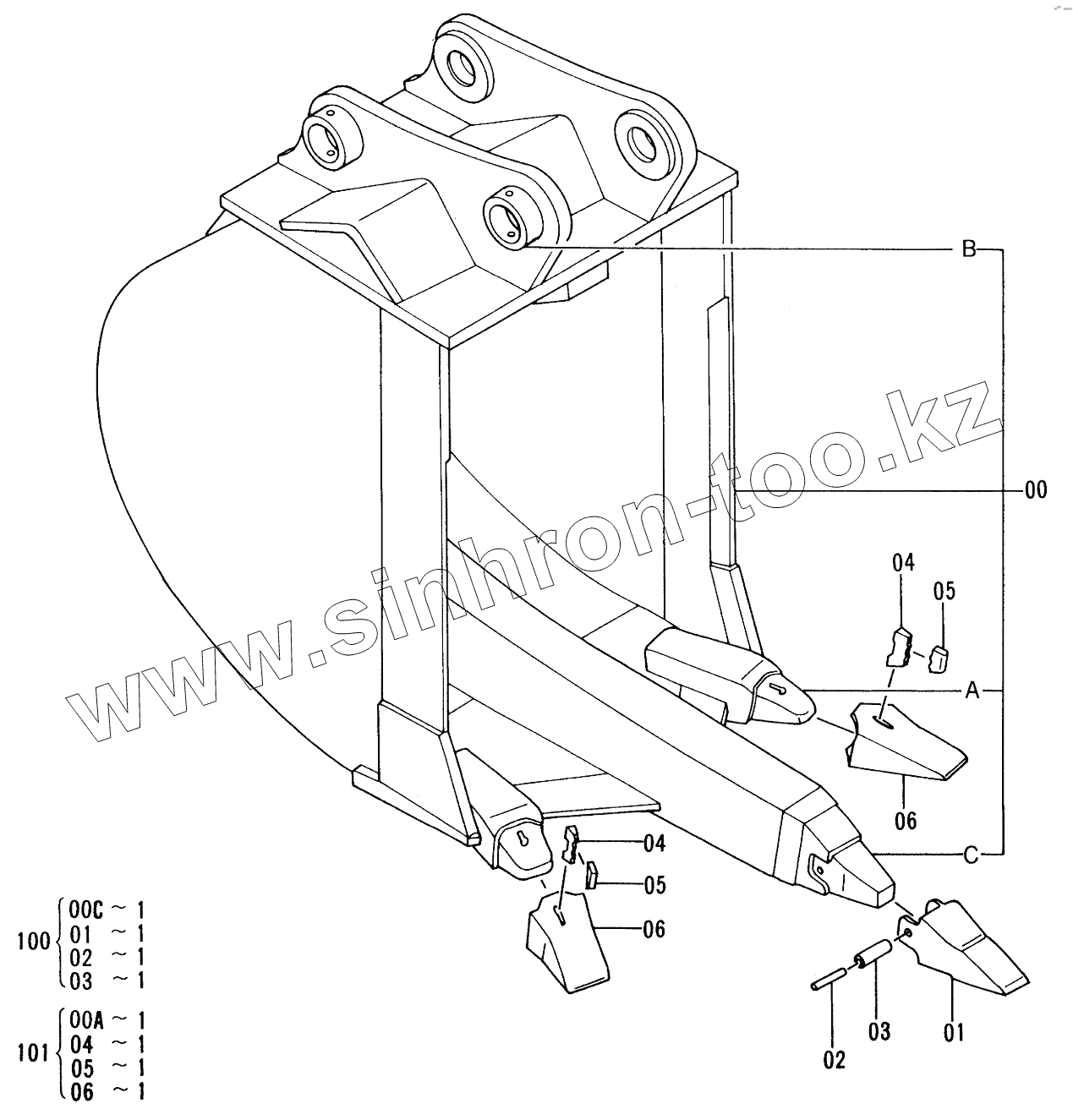

Позиция на иллюстрации
Заводской номер детали
Название детали
9107978
9107978
RIPPER BUCKET ASSY
00
8052352
BUCKET, RIPPER
00A
4045168
ADAPTER
00B
4067720
STOPPER
00C
4507889
NOSE
01
4507888
POINT, TOOTH
02
4507890
PIN
03
4507891
BUSHING, RUBBER
04
4512366
PIN, LOCK
05
4501625
RUBBER, LOCK
05
4319920
RUBBER, LOCK
06
4512365
POINT, TOOTH
100
9061403
KIT, POINT
101
9056408
KIT, POINT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
