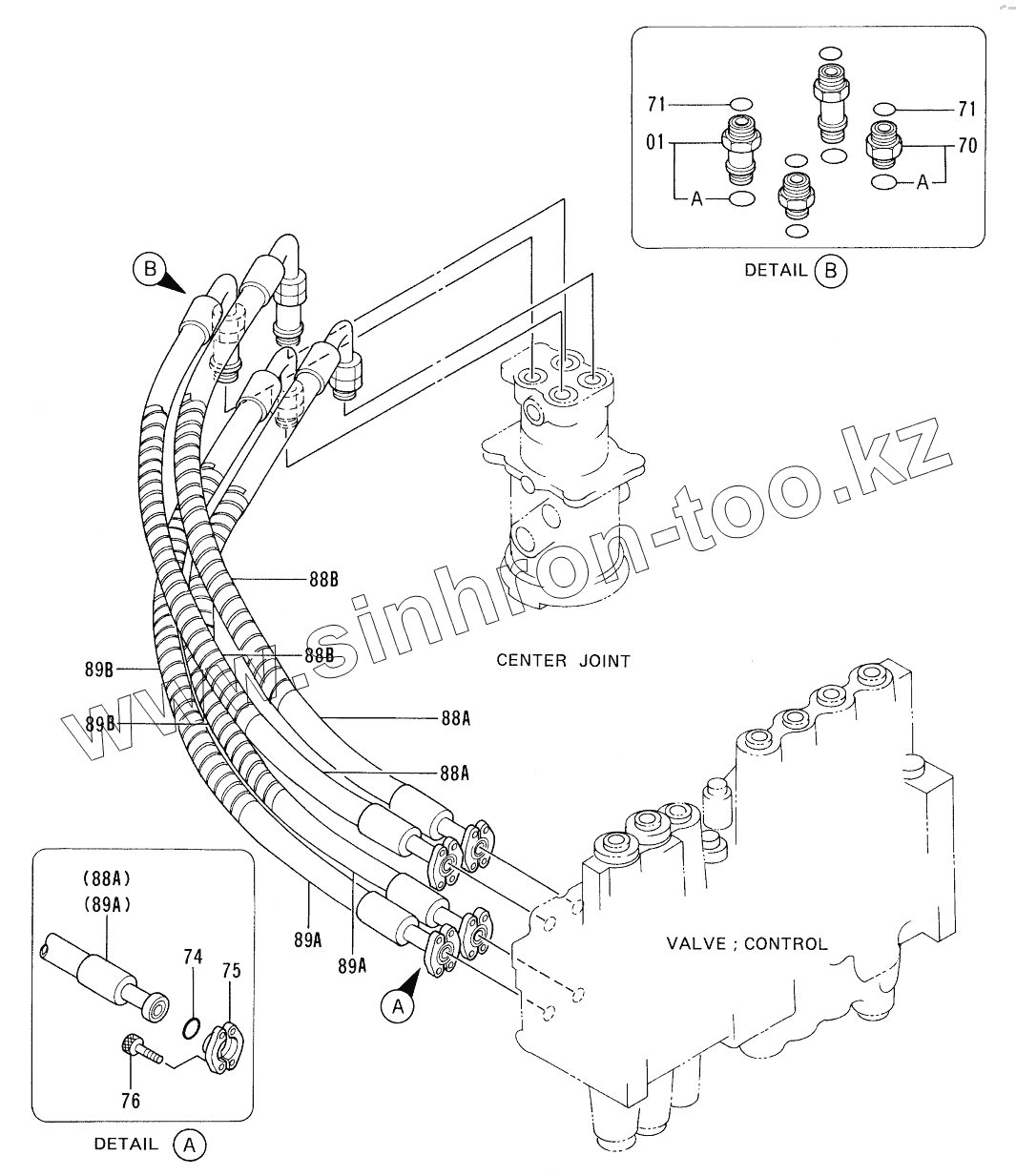

01
01A
70
70A
71
71
74
75
76
88A
88A
88A
88B
88B
89A
89A
89A
89B
89B
Позиция на иллюстрации
Заводской номер детали
Название детали
01
4189539
ADAPTERS
01A
4506424
O-RING
70
4189619
ADAPTER, S
70A
4506424
O-RING
71
4187308
O-RING
74
971489
O-RING
75
986910
FLANGE, SPLIT
76
M341030
BOLT, SOCKET
88A
4259449
HOSE
88B
4044420
PROTECTOR
89A
4250894
HOSE
89B
4044420
PROTECTOR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
