FUEL PIPINGS

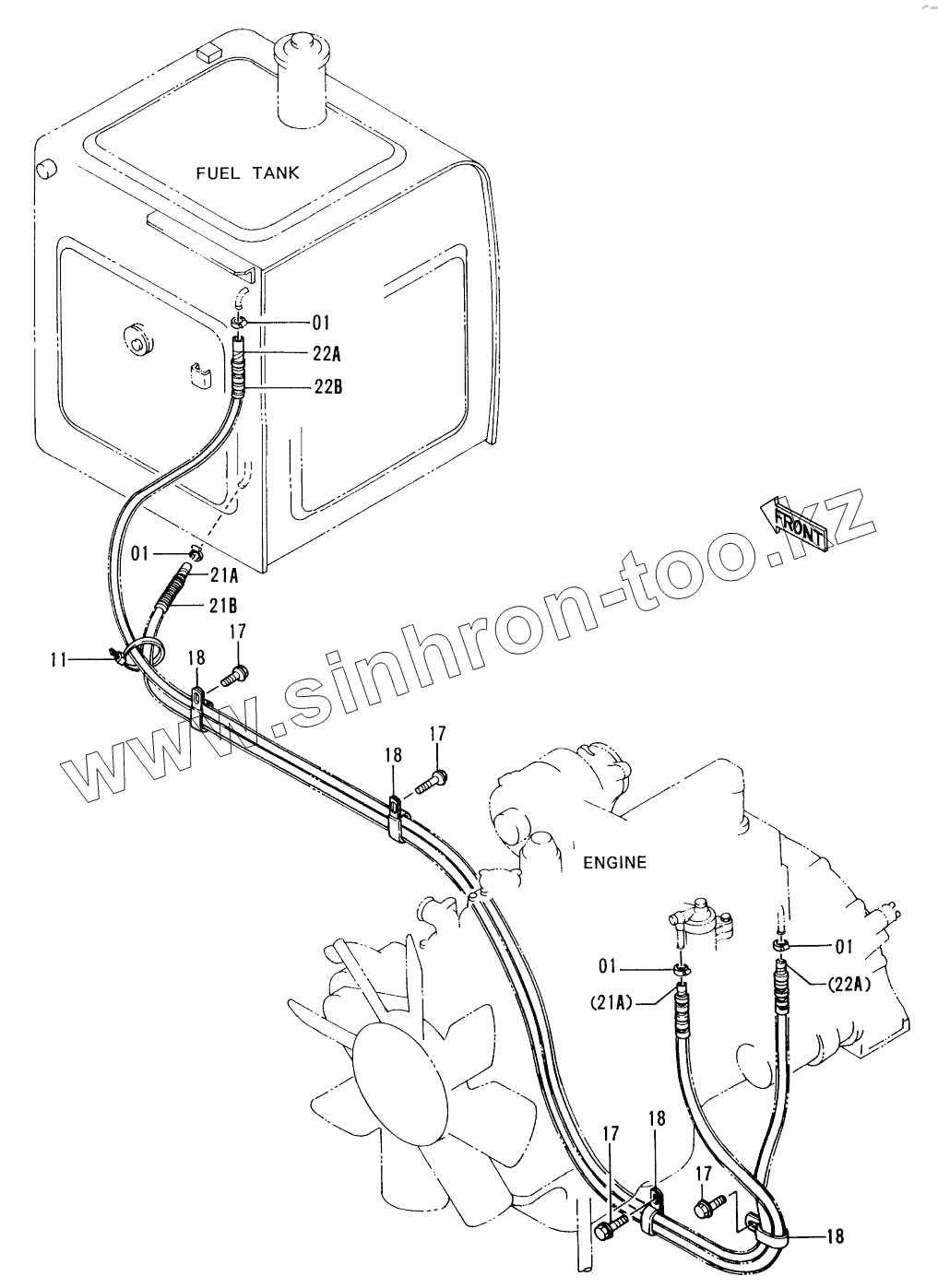

Каталог запасных частей к технике: Hitachi EX-220-2. FUEL PIPINGS
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
EX-100-2 (2000)
EX-100-3 (2008)
EX-100WD (2008)
EX-120 (2008)
EX-120-2 (2008)
EX-160WD (2008)
EX-200 (2008)
EX-200-2 (2008)
EX-200-3
EX-220 (2008)
EX-220-2 (2008)
EX-270 (2008)
EX-300 (2008)
EX-300-2 (2000)
EX-400 Type A (2006)
EX-400 Type B (2006)
EX-60 (2003)
EX-60-2 (2000)
EX-60-3 (2008)
EX-70 (2017)
LX-110-7 (2008)
LX-130-7 (2008)
LX-150-2 (2008)
LX-160-7 (2008)
LX190-7/LX230-7 (2008)
Zaxis 190-3
ZAXIS 200-5A (2018)
ZAXIS 200LC-5A (2018)
ZAXIS 210H-5A (2018)
ZAXIS 210K-5A (2018)
ZAXIS 210LCH-5A (2018)
ZAXIS 210LCK-5A (2018)
ZAXIS 330-5G (2017)
ZAXIS 350H-5G (2017)
ZAXIS 48U-5A (2020)
ZAXIS 850-3
ZAXIS 870H-3
ZX-110 (2008)
ZX-160W (2008)
ZX-200 (2008)
ZX-230 (2008)
ZX-25 (2008)
ZX-270 (2008)
ZX-330 (2010)
ZX-330-3 (Part № PIHH-I-3) (2008)
ZX-330-3 (Part № PIHH-I-5) (2013)
ZX-330-3G (2008)
ZX-400R-3 (2010)
ZX-450 (2006)
ZX-600 (2007)
Компоненты EX-100-2 (2000)
Компоненты EX-100WD (2008)
Компоненты EX-120 (2008)
Компоненты EX-120-2 (2008)
Компоненты EX-160WD (2008)
Компоненты EX-200 (2008)
Компоненты EX-200-2 (2008)
Компоненты EX-200-3(LC, H)
Компоненты EX-220 (2008)
Компоненты EX-220-2 (2008)
Компоненты EX-270 (2008)
Компоненты EX-300 (2008)
Компоненты EX-300-2 (2000)
Компоненты EX-400 Type A (2006)
Компоненты EX-400 Type B (2006)
Компоненты EX-60 (2003)
Компоненты EX-60-2 (2000)
Компоненты EX-60-3 (2008)
Компоненты ZAXIS 450, 470, 500, 520 (2010)
Компоненты ZX-110 (2008)
Компоненты ZX-120 (130) (2008)
Компоненты ZX-160W (2008)
Компоненты ZX-200 (2008)
Компоненты ZX-230 (2008)
Компоненты ZX-270 (2008)
Компоненты ZX-330 (2008)
Компоненты ZX-450 (2006)
Схема
>
Не выбрано
FRAME
COUNTERWEIGHT
ENGINE
RADIATOR
RESERVE TANK
AIR CLEANER
MUFFLER
FUEL PIPINGS
FUEL TANK
FUEL FEED PUMP (OPTION)
PUMP DEVICE
SWING DEVICE
OIL TANK
OIL COOLER PIPINGS (1)
OIL COOLER PIPINGS (2)
OIL COOLER PIPINGS (3)
OIL COOLER PIPINGS (4)
MAIN PIPINGS (1)
MAIN PIPINGS (2)
MAIN PIPINGS (3)
MAIN PIPINGS (4)
SWING PIPINGS
ENGINE CONTROL MOTOR
ENGINE CONTROL CABLE
CONTROL LEVER (1)
CONTROL LEVER (2)
CONTROL LEVER (3)
PILOT PIPINGS (1-1) Serial №08001-08060
PILOT PIPINGS (1-1) Serial №08061-
PILOT PIPINGS (1-2)
PILOT PIPINGS (2-1)
PILOT PIPINGS (2-2)
PILOT PIPINGS (3-1)
PILOT PIPINGS (3-2)
PILOT PIPINGS (3-3) Serial №STD:08001-08453, LC:08001-08474
PILOT PIPINGS (3-3) Serial №STD:08454-, LC:08475-
PILOT PIPINGS (4-1)
PILOT PIPINGS (4-2) <STD>
PILOT PIPINGS (4-2) <N.EUROPE>
PILOT PIPINGS (5-1) <STD>
PILOT PIPINGS (5-1) <N.EUROPE>
PILOT PIPINGS (5-2)
PILOT PIPINGS (6-1) STD:08001-08453, LC:08001-08474
PILOT PIPINGS (6-1) STD:08454-, LC:08475-
PILOT PIPINGS (6-2) STD:08001-08453, LC:08001-08474
PILOT PIPINGS (6-2) STD:08454-, LC:08475-
CONSOLE (R)
CONSOLE (L) <STD>
CONSOLE (L) <N.EUROPE>
SWITCH BOX
GAUGE PANEL <STD>
GAUGE PANEL <N,EUROPE>
RADIO <STD>
RADIO <N.EUROPE>
ELECTRIC PARTS (1)
ELECTRIC PARTS (2)
ELECTRIC PARTS (3-1)
ELECTRIC PARTS (3-2) <STD>
ELECTRIC PARTS (3-2) <N.EUROPE>
ELECTRIC PARTS (3-3)
ELECTRIC PARTS (3-4)
WINDOW WASHER
CAR HEATER
CAR HEATER PARTS
CAR HEATER PIPINGS
CAB GROUP (1) Serial № STD:08001-08656, LC:08001-08634
CAB GROUP (1) Serial № STD:08657-, LC:08635-
CAB GROUP (2)
REARVIEW MIRROR
CAB <STD>
CAB <N.EUROPE>
CAB (1)
CAB (2) <STD>
CAB (2) <N.EUROPE>
CAB (3) Serial № STD:08001-08493, LC:08001-08538
CAB (3) Serial № STD:08494-, LC:08539-
CAB (4)
CAB (5)
CAB (6) <STD>
CAB (6) <N.EUROPE>
CAB (7): SUNVISOR <N.EUROPE>
REAR COVER (INSIDE OF CAB)
FLOOR PARTS
SEAT
SEAT SUSPENSION
SEAT STAND
SEAT BELT Serial № 08859-
COVER (1-1)
COVER (1-2)
COVER (1-3)
COVER (1-4)
COVER (1-5)
COVER (1-6)
COVER (1-7)
COVER (2)
DOOR LOCK (A)
DOOR LOCK (B)
TRACK FRAME (STD, TRACK)
TRACK FRAME (LC TRACK)
SWING BEARING
TRAVEL DEVICE
FRONT IDLER
ADJUSTER
UPPER ROLLER
LOWER ROLLER (STD. TRACK)
LOWER ROLLER (LC TRACK)
TRACK-LINK 600G (STD. TRACK)
TRACK-LINK 600G (LC TRACK)
CENTER JOINT
TRAVEL PIPINGS (STD. TRACK)
TRAVEL PIPINGS (LC TRACK)
TRAVEL PIPINGS COVER
BOOM
STD. ARM 2.96M
BUCKET 0.9
FRONT PIPINGS (1)
FRONT PIPINGS (2)
LUBRICATE PIPINGS
PILOT PIPINGS <TYPE 18>
BOOM <TYPE 18>
ARM <TYPE 18>
BUCKET 0.3
BUCKET 0.35
BUCKET 0.4
DITCH CLEANING BUCKET 0.4 (WITHOUT POINTS)
DITCH CLEANING BUCKET 0.4 (WITH POINTS)
FRONT PIPINGS (1) <TYPE 18>
FRONT PIPINGS (2) <TYPE 18>
LUBRICATE PIPINGS (1) <TYPE 18>
LUBRICATE PIPINGS (2) <TYPE 18>
MULTI LEVER PIPINGS (1)
MULTI LEVER PIPINGS (2)
MULTI LEVER PIPINGS (3)
MULTI LEVER PIPINGS (4)
AIR CONDITIONER (1)
AIR CONDITIONER (2)
AIR-CON. UNIT
AIR-CON. CONTROLLER
TROPICAL COVER
TRACK-LINK 800G (STD. TRACK)
TRACK-LINK 800G (LC TRACK)
TRACK-LINK 600F (STD. TRACK)
TRACK-LINK 600F (LC TRACK)
TRACK-LINK 900A (STD. TRACK)
TRACK-LINK 900A (LC TRACK)
SHORT ARM 2.32M
FRONT PIPINGS (2) <SHORT ARM>
LONG ARM 3.61M
FRONT PIPINGS (2) <LONG ARM>
BUCKET 0.7
BUCKET 1.0
BUCKET 1.1
BUCKET 1.2
ROCK BUCKET 0.8
RIPPER BUCKET 0.7
ONE-POINT RIPPER
HOSE RUPTURE VALVE PIPINGS (BOOM):1 <Type 2>
HOSE RUPTURE VALVE PIPINGS (BOOM):1 <Type 3>
HOSE RUPTURE VALVE PIPINGS (BOOM):2 <Type 2>
HOSE RUPTURE VALVE PIPINGS (BOOM):2 <Type 3>
HOSE RUPTURE VALVE PIPINGS (BOOM):3 <Type 2>
HOSE RUPTURE VALVE PIPINGS (BOOM):3 <Type 3>
HOSE RUPTURE VALVE PIPINGS (ARM):1 <Type 2>
HOSE RUPTURE VALVE PIPINGS (ARM):1 <Type 3>
HOSE RUPTURE VALVE PIPINGS (ARM):2 <Type 2>
HOSE RUPTURE VALVE PIPINGS (ARM):2 <Type 3>
HOSE RUPTURE VALVE PIPINGS (ARM):3 <Type 2>
HOSE RUPTURE VALVE PIPINGS (ARM):3 <Type 3>
CONTROL PEDAL (BREAKER & CRUSHER)
PILOT PIPINGS (BREAKER & CRUSHER)
MAIN PIPINGS FOR BREAKER & CRUSHER
FRONT PIPINGS FOR BREAKER & CRUSHER
PIPINGS FOR NPK BREAKER
PIPINGS FOR NPK BREAKER & CRUSHER
PIPINGS FOR OKADA/FURUKAWA BREAKER
PIPINGS FOR OKADA/FURUKAWA BREAKER & CRUSHER
TOOLS
SPARE PARTS <STD>
SPARE PARTS <N.EUROPE>
01
01
01
01
11
17
17
17
17
18
18
18
18
21A
21A
21B
22A
22A
22B
Позиция на иллюстрации
Заводской номер детали
Название детали
01
4514700
CLIP, HOSE
11
4055312
CLIP, BAND
17
J011020
BOLT, SEMS
18
4190266
CLIP
21A
4191976
HOSE, FUEL
21B
4278392
TUBE
22A
4137970
HOSE, FUEL
22B
4210694
TUBE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
