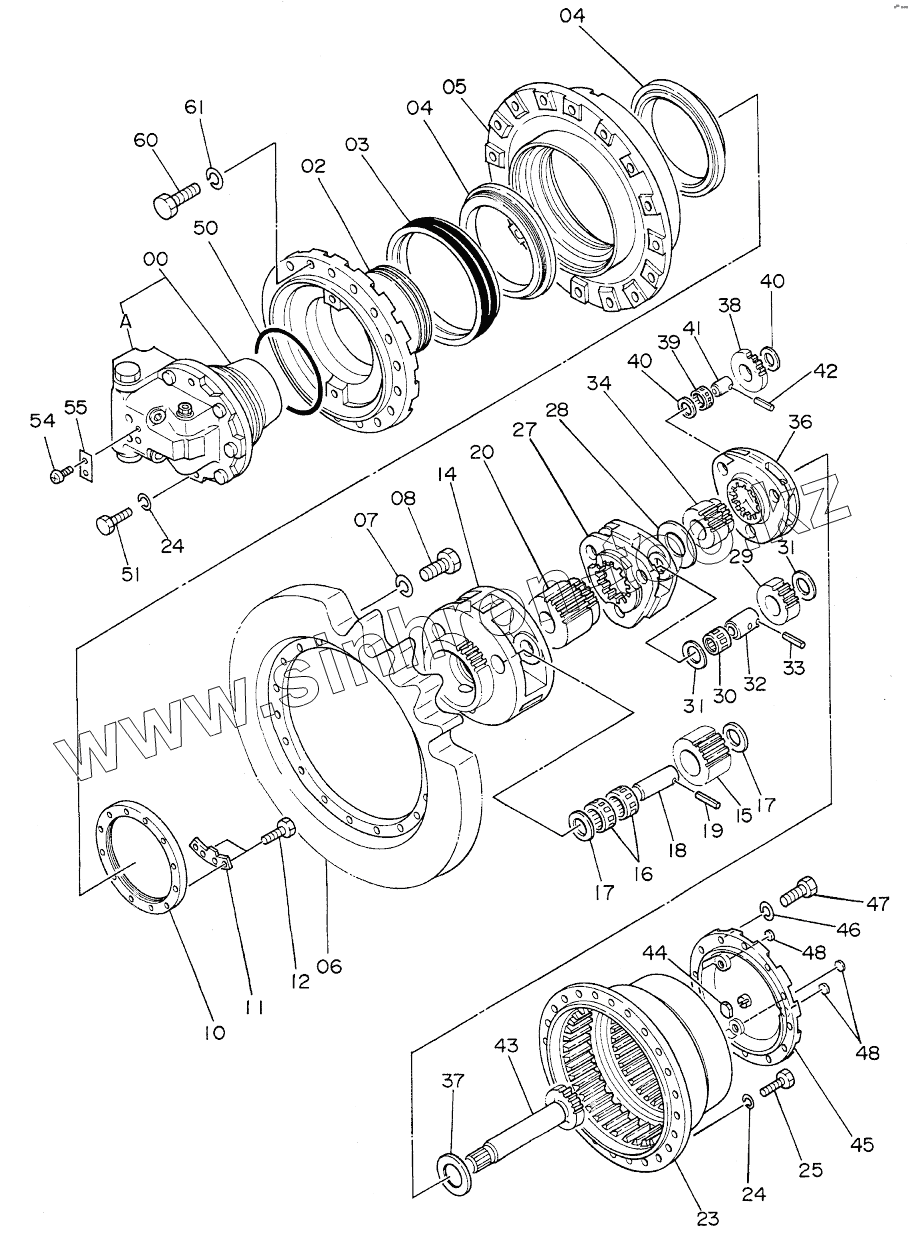

Каталог запасных частей к технике: Hitachi EX-220. TRAVEL DEVICE
9080071
9066026
9080512
9080513
9065941
9080115
9065942
9096484
9080114
2
3
4
4
5
6
7
8
10
11
12
14
14
15
15
16
17
17
18
19
20
23
23
24
24
25
27
27
28
29
29
30
31
31
32
33
34
34
36
36
37
37
38
38
39
40
40
41
42
43
43
44
45
45
45
46
47
48
48
48
48
50
51
54
55
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9080071 | 9080071 | TRAVEL DEVICE ASSY | |
| 9066026 | 9066026 | TRAVEL DEVICE ASSY | |
| 9080512 | 9080512 | VALVE, BRAKE | |
| 9080513 | 9080513 | VALVE, BRAKE | |
| 9065941 | 9065941 | VALVE, BRAKE | |
| 9080115 | 9080115 | MOTOR, OIL | |
| 9065942 | 9065942 | MOTOR, OIL | |
| 9096484 | 9096484 | TRAVEL DEVICE ASSY | |
| 9080114 | 9080114 | MOTOR, OIL | |
| 2 | 1009855 | HOUSING | |
| 3 | 4514259 | SEAL, GROUP | |
| 4 | 4115169 | BRG., ROL | |
| 5 | 1010029 | DRUM | |
| 6 | 1010203 | SPROCKET | |
| 7 | А590920 | WASHER, SPRING | |
| 8 | J932055 | BOLT | |
| 10 | 3032083 | NUT | |
| 11 | 4178862 | PLATE LOCK | |
| 12 | J901020 | BOLT | |
| 14 | 1009857 | CARRIER | |
| 14 | 1009901 | CARRIER | |
| 15 | 3034489 | GEAR, PLANETARY | |
| 15 | 3034323 | GEAR, PLANETARY | |
| 16 | 4183818 | ВRG., NЕЕDLЕ | |
| 17 | 4135227 | PLATE, THRUST | |
| 18 | 4139975 | PIN | |
| 19 | 4139998 | PIN, SPRING | |
| 20 | 3034324 | GEAR, SUN | |
| 23 | 1010885 | GEAR, RING | |
| 23 | 1012284 | GEAR, RING | |
| 24 | А590916 | WASHER, SPRING | |
| 25 | J931645 | BOLT | |
| 27 | 2022294 | CARRIER | |
| 27 | 2022210 | CARRIER | |
| 28 | 4183819 | SPACER | |
| 29 | 3034490 | GEAR, PLANETARY | |
| 29 | 3034325 | GEAR, PLANETARY | |
| 30 | 4126657 | BRG., NEEDLE | |
| 31 | 4192982 | PLATE, THRUST | |
| 32 | 4144558 | PIN | |
| 33 | 4169567 | PIN, SPRING | |
| 34 | 3034491 | GEAR, SUN | |
| 34 | 3034326 | GEAR, SUN | |
| 36 | 2022297 | CARRIER | |
| 36 | 2020865 | CARRIER | |
| 37 | 4183819 | SPACER | |
| 37 | 4172391 | SPACER | |
| 38 | 3034492 | GEAR, PLANETARY | |
| 38 | 3031946 | GEAR, PLANETARY | |
| 39 | 4172392 | BRS., NEEDLE | |
| 40 | 4196488 | PLATE, THRUST | |
| 41 | 4172398 | PIN | |
| 42 | 4169566 | PIN, SPRING | |
| 43 | 2020862 | SHAFT, PROP. | |
| 43 | 2025962 | SHAFT, PROP. | |
| 44 | 4204756 | CAP | |
| 45 | 2022684 | COVER | |
| 45 | 2025963 | COVER | |
| 45 | 2028455 | COVER | |
| 46 | А590912 | WASHER, SPRING | |
| 47 | М221228 | BOLT | |
| 48 | 94-2013 | PLUG | |
| 48 | 94-2013 | PLUG | |
| 48 | 4245797 | PLUG | |
| 50 | 4174183 | O-RING | |
| 51 | J931685 | BOLT | |
| 54 | М492564 | SCREW, DRIVE | |
| 55 | 3053559 | NAME-PLATE | |
| 60 | J932080 | BOLT | |
| 61 | А590920 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
