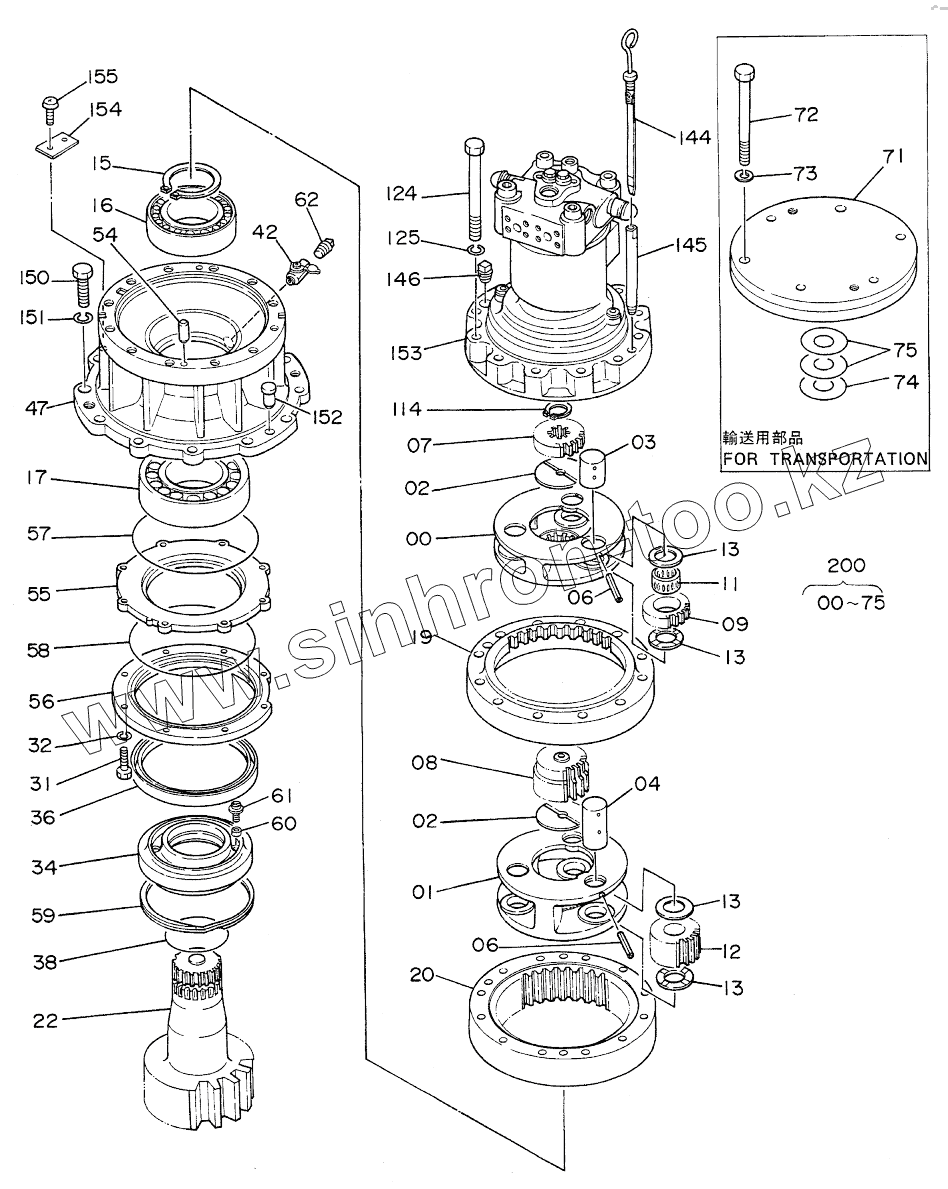

Каталог запасных частей к технике: Hitachi EX-220. SWING DEVICE
2022625
2022625
1
1
2
2
3
4
4
4
6
6
7
8
8
9
11
12
13
13
13
13
15
16
17
19
19
20
22
31
32
34
36
36
38
42
47
47
54
55
55
56
57
57
58
59
60
61
62
71
72
73
74
75
75
114
124
124
125
144
144
145
145
146
150
151
152
153
153
154
155
200
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2022625 | 2022625 | CARRIER | |
| 1 | 1010144 | CARRIER | |
| 1 | 1011451 | CARRIER | |
| 2 | 4187590 | PLATE, THRUST | |
| 3 | 4187588 | PIN | |
| 4 | 4187587 | PIN | |
| 4 | 4207808 | PIN | |
| 4 | 4244694 | РIN | |
| 6 | 986954 | РIN, SРRING | |
| 7 | 3035168 | GEAR, SUN | |
| 8 | 3035169 | GEAR, SUN | |
| 8 | 3039318 | GEAR, SUN | |
| 9 | 3035171 | SEAR, PLANETARY | |
| 11 | 4187318 | BRG., NEEDLE | |
| 12 | 9725060 | GEAR, PLANETARY | |
| 13 | 4187591 | PLATE, THRUST | |
| 15 | 942480 | RING, RETAINING | |
| 16 | 4504706 | BRG., SPH.ROL. | |
| 17 | 4508194 | BRG., ROL. | |
| 19 | 2022627 | GEAR INTERNAL | |
| 19 | 2024897 | GEAR INTERNAL | |
| 20 | 2023937 | GEAR, INTERNAL | |
| 22 | 2022626 | SHAFT, PROP. | |
| 31 | J901240 | BOLT | |
| 32 | A590912 | WASHER, SPRING | |
| 34 | 2024621 | SLEEVE | |
| 36 | 4187681 | SEAL, OIL | |
| 36 | 4250326 | SEAL, OIL | |
| 38 | A811120 | O-RING | |
| 42 | 4194712 | COCK | |
| 47 | 1011073 | HOUSING | |
| 47 | 1011687 | HOUSING | |
| 54 | J401640 | PIN, KNOCK | |
| 55 | 2024624 | COVER | |
| 55 | 2025179 | COVER | |
| 56 | 2024625 | COVER | |
| 57 | 4204137 | O-RING | |
| 57 | 4210325 | O-RING | |
| 58 | 4204138 | O-RING | |
| 59 | 4204748 | RING, RETAINING | |
| 60 | 4204644 | MAGNET | |
| 61 | 4204645 | SCREW | |
| 62 | 94-2024 | PLUG | |
| 71 | 8043499 | COVER | |
| 72 | J911814 | BOLT | |
| 73 | A590918 | WASHER, SPRING | |
| 74 | 4232537 | SHIM 0.5 | |
| 75 | 4232696 | SHIM 1.0 | |
| 114 | 959499 | RING, RETAINING | |
| 124 | J911813 | BOLT | |
| 124 | J911816 | BOLT | |
| 125 | A590918 | WASHER, SPRING | |
| 144 | 3035979 | GAUGE, LEVEL | |
| 144 | 3043290 | GAUGE, LEVEL | |
| 145 | 4191879 | PIPE | |
| 145 | 4229787 | PIPE | |
| 146 | 94-2025 | PLUG | |
| 150 | J932270 | BOLT | |
| 151 | A590922 | WASHER, SPRING | |
| 152 | 4080398 | PIN, KNOCK | |
| 153 | 4187037 | MOTOR, OIL | |
| 153 | 4224991 | MOTOR, OIL | |
| 154 | 3053093 | NAME-PLATE | |
| 155 | M492564 | SCREW, DRIVE | |
| 200 | 9083735 | SWING DEVICE | |
| 200 | 9097705 | SWING DEVICE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
