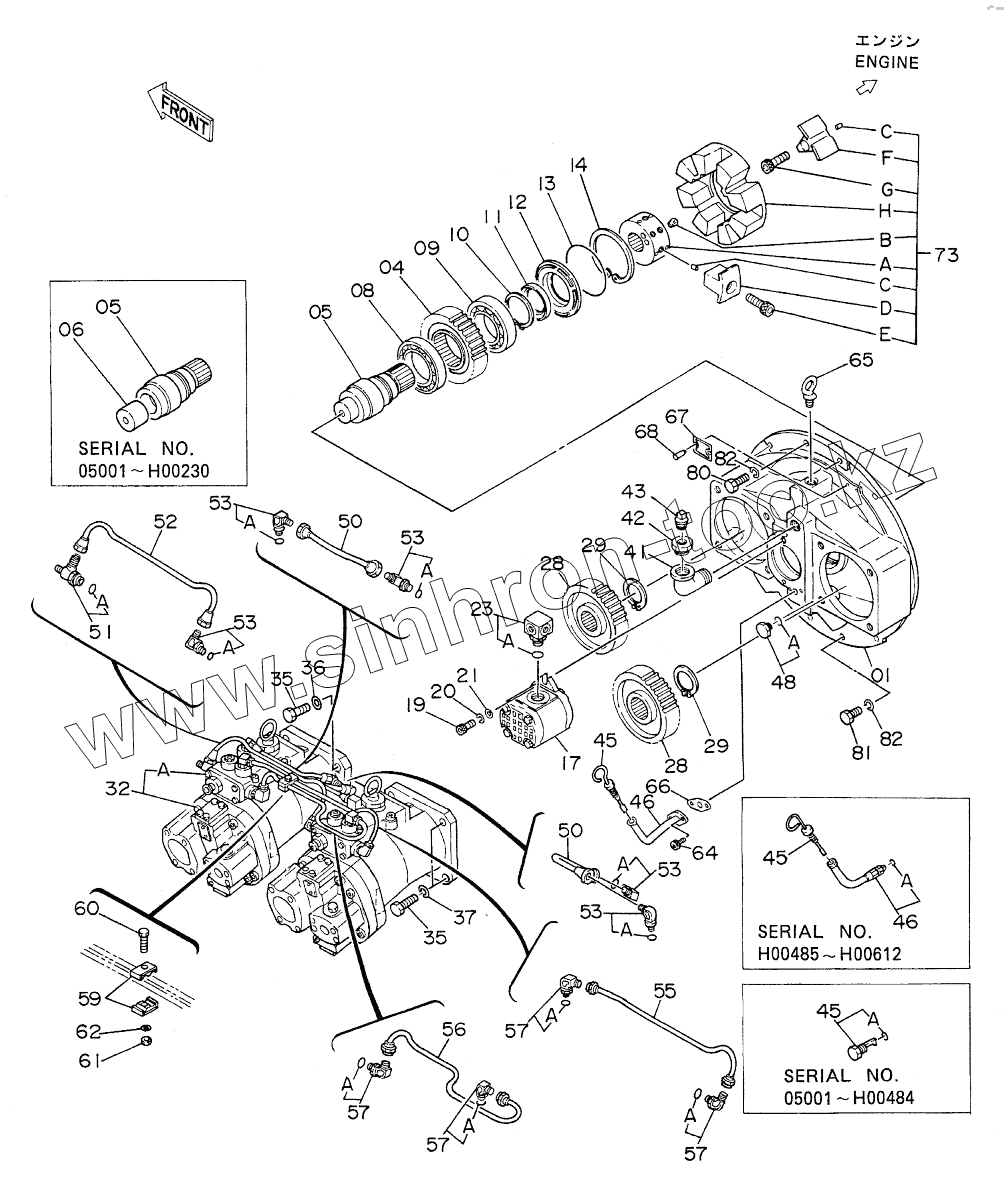

Каталог запасных частей к технике: Hitachi EX-220. PUMP DEVICE
4183169
4506418
4509180
9065881
4509180
4183165
4183168
4509180
4183166
9070496
957366
957366
957366
957366
957366
4183167
4101345
4101345
957366
4183170
4183171
957366
957366
957366
957366
9077427
1
1
4
5
5
5
6
8
9
10
11
12
13
14
17
19
20
21
23
28
28
29
29
32
32
35
35
36
37
41
42
43
45
45
45
45
45
46
46
46
48
50
50
51
52
53
53
53
53
53
55
56
57
57
57
57
59
60
61
62
64
65
66
67
67
68
73
80
81
82
82
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4183169 | 4183169 | BOLT, SOCKET | |
| 4506418 | 4506418 | O-RING | |
| 4509180 | 4509180 | O-RING | |
| 9065881 | 9065881 | PUMP, DUOBLE ASSY | |
| 4509180 | 4509180 | O-RING | |
| 4183165 | 4183165 | COUPLING | |
| 4183168 | 4183168 | BOLT, SOCKET | |
| 4509180 | 4509180 | O-RING | |
| 4183166 | 4183166 | INSERT | |
| 9070496 | 9070496 | REGULATOR | |
| 957366 | 957366 | O-RING | |
| 4183167 | 4183167 | INSERT | |
| 4101345 | 4101345 | PIN, SPRING | |
| 957366 | 957366 | O-RING | |
| 4183170 | 4183170 | SCREW, SET | |
| 4183171 | 4183171 | HUB | |
| 957366 | 957366 | O-RING | |
| 9077427 | 9077427 | PUMP, DUOBLE ASSY | |
| 1 | 1009492 | CASING, GEAR | |
| 1 | 1013617 | CASING, GEAR | |
| 4 | 3033590 | GEAR, CENTER | |
| 5 | 3035589 | SHAFT, CENTER | |
| 5 | 3038090 | SHAFT, CENTER | |
| 6 | 3033592 | SLEEVE | |
| 8 | 4023596 | BRG., BALL | |
| 9 | 4198787 | BRG., BALL | |
| 10 | 4191219 | RING, RETAINING | |
| 11 | 4179833 | SEAL, OIL | |
| 12 | 3033593 | COVER, T.MISSION | |
| 13 | 4179834 | O-RING | |
| 14 | 991733 | RING, RETAINING | |
| 17 | 4181700 | PUMP, GEAR | |
| 19 | M341028 | BOLT, SOCKET | |
| 20 | 984054 | WASHER, SPRING | |
| 21 | A590110 | WASHER, PLANE | |
| 23 | 4191974 | ADAPTER | |
| 28 | 3034465 | GEAR, DRIVE | |
| 29 | 991345 | RING | |
| 32 | 9077426 | PUMP, SINGLE | |
| 32 | 9065882 | PUMP, SINGLE | |
| 35 | M211645 | BOLT | |
| 36 | 4126090 | WASHER, SEAL | |
| 37 | A590916 | WASHER, SPRING | |
| 41 | 94-0649 | ELBOW | |
| 42 | J728684 | REDUCER | |
| 43 | 4511984 | PLUG | |
| 45 | 4242263 | GAUGE, LEVEL | |
| 45 | 4236198 | GAUGE, LEVEL | |
| 45 | 4196389 | GAUGE, LEVEL | |
| 46 | 4236238 | PIPE, GUIDE | |
| 46 | 4242262 | PIPE, GUIDE | |
| 48 | 4092534 | PLUG | |
| 50 | 4184689 | PIPE | |
| 51 | 4203485 | FITTING, PIPE | |
| 52 | 4181053 | PIPE | |
| 53 | 4179837 | FITTING, PIPE | |
| 55 | 3033595 | PIPE | |
| 56 | 3036487 | PIPE | |
| 57 | 4118499 | FITTING, PIPE | |
| 59 | 4179843 | CLAMP | |
| 60 | J900828 | BOLT | |
| 61 | Н500807 | NUT | |
| 62 | А590908 | WASHER, SPRING | |
| 64 | М340816 | BOLT, SOCKET | |
| 65 | 4092149 | BOLT, EYE | |
| 66 | 4243160 | PACKING | |
| 67 | 3040758 | NAME-PLATE | |
| 67 | 3037598 | NAME-PLATE | |
| 68 | М492564 | SCREW, DRIVE | |
| 73 | 4118705 | COUPLING ASSY | |
| 80 | J901040 | BOLT | |
| 81 | J901035 | BOLT | |
| 82 | А590910 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
