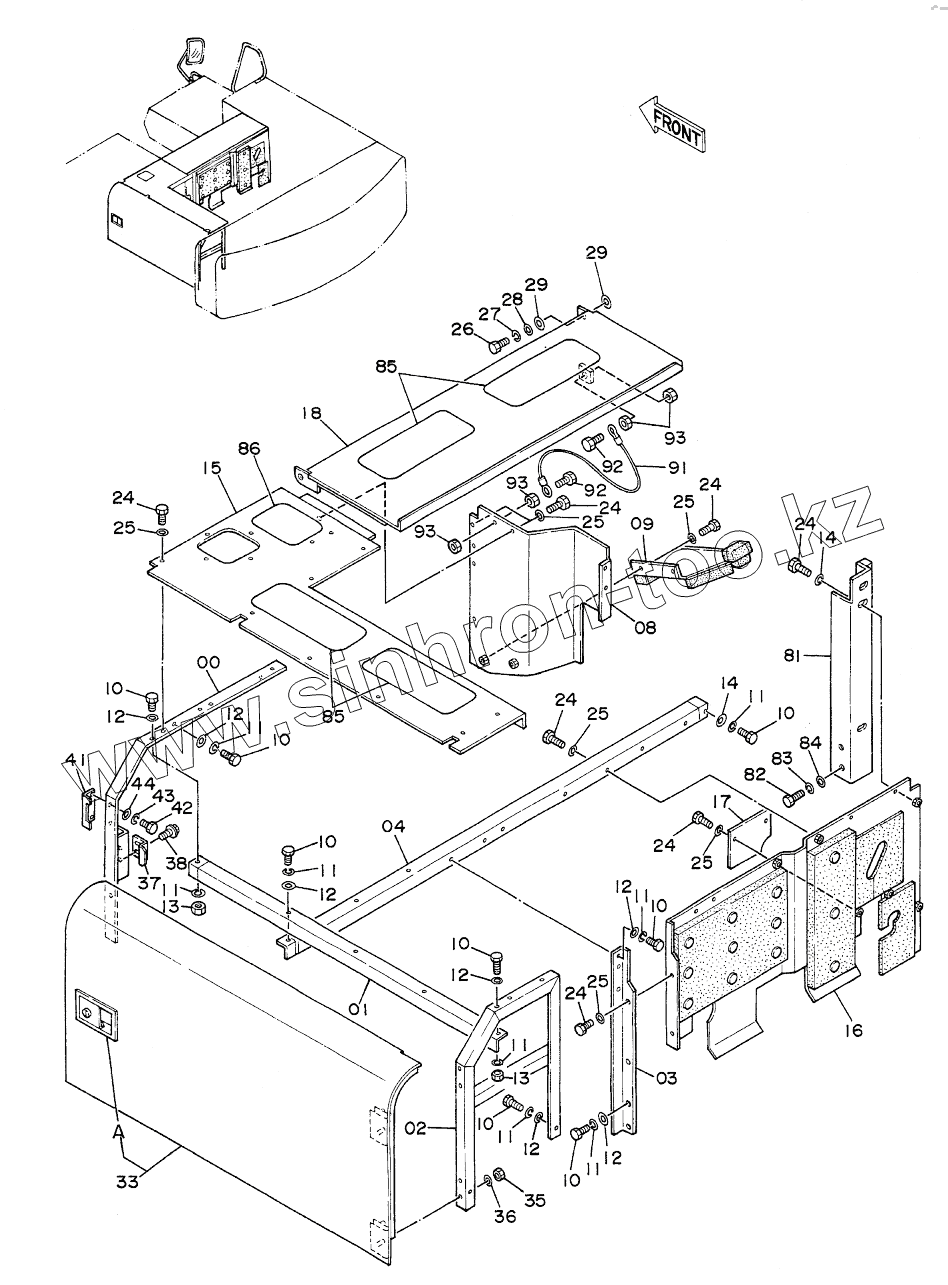

Каталог запасных частей к технике: Hitachi EX-220. COVER (1)
00
01
02
03
04
08
09
10
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
12
12
12
12
12
12
12
13
13
14
14
15
16
17
18
24
24
24
24
24
24
24
25
25
25
25
25
25
26
27
28
29
29
33
33A
35
36
37
38
41
42
43
44
81
82
83
84
85
85
86
91
92
92
93
93
93
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 8035504 | SUPPORT | |
| 01 | 8041063 | SUPPORT | |
| 02 | 8041061 | SUPPORT | |
| 03 | 4189697 | SUPPORT | |
| 04 | 8035749 | SUPPORT | |
| 08 | 8044719 | COVER | |
| 09 | 9728032 | COVER | |
| 10 | J901230 | BOLT | |
| 11 | A590912 | WASHER, SPRING | |
| 12 | A590112 | WASHER, PLANE | |
| 13 | J950012 | NUT | |
| 14 | 449490 | WASHER | |
| 15 | 7016988 | COVER | |
| 16 | 7018348 | COVER | |
| 17 | 4203445 | PLATE | |
| 18 | 8044718 | COVER | |
| 24 | J901225 | BOLT | |
| 25 | A590112 | WASHER, PLANE | |
| 26 | J901022 | BOLT | |
| 27 | A590910 | WASHER, SPRING | |
| 28 | J217083 | WASHER | |
| 29 | A590120 | WASHER | |
| 33 | 6007849 | DOOR | |
| 33A | 7017862 | DOOR LOCK | |
| 35 | J950012 | NUT | |
| 36 | A590912 | WASHER, SPRING | |
| 37 | 4188492 | STOPPER | |
| 38 | J021230 | BOLT, SEMS | |
| 41 | 3037786 | BRACKET | |
| 42 | J900814 | BOLT | |
| 43 | A590908 | WASHER, SPRING | |
| 44 | A590108 | WASHER, PLANE | |
| 81 | 9728640 | SUPPORT | |
| 82 | J901225 | BOLT | |
| 83 | A590912 | WASHER, SPRING | |
| 84 | A590112 | WASHER, PLANE | |
| 85 | 4073519 | TAPE 150X400 | |
| 86 | 4121128 | TAPE 150X200 | |
| 91 | 4232654 | R0PE, WIRE | |
| 92 | J901245 | BOLT | |
| 93 | J950012 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
