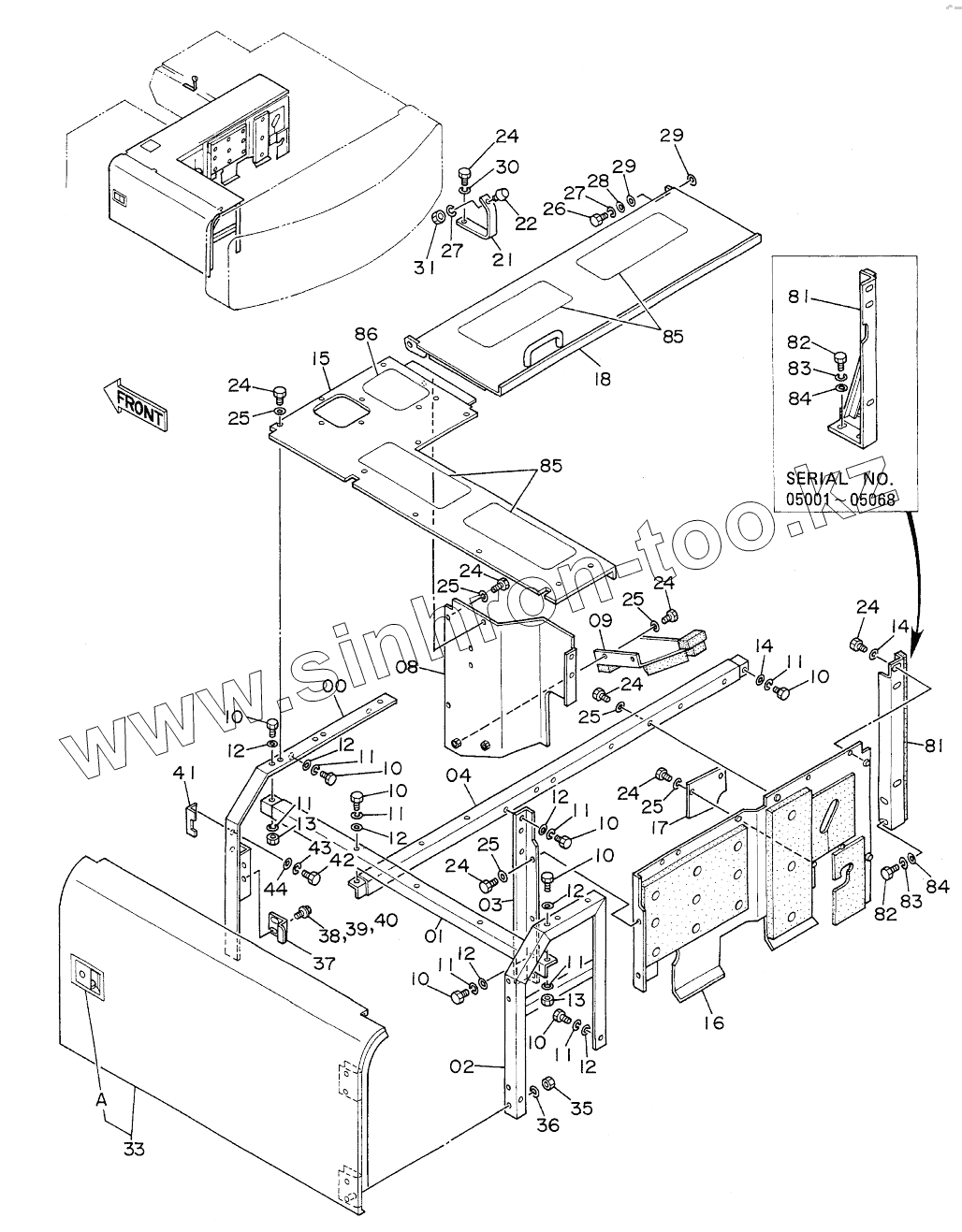

Каталог запасных частей к технике: Hitachi EX-220. COVER (1)
00
01
01
02
02
03
04
08
09
10
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
11
12
12
12
12
12
12
12
12
13
13
14
14
15
16
17
18
21
22
24
24
24
24
24
24
24
24
25
25
25
25
25
25
26
27
27
28
29
29
30
31
33
33A
35
36
37
38
38
41
42
43
44
81
81
81
82
82
83
83
84
84
85
85
86
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 8035504 | SUPPORT | |
| 01 | 8035750 | SUPPORT | |
| 01 | 8041063 | SUPPORT | |
| 02 | 8035751 | SUPPORT | |
| 02 | 8041061 | SUPPORT | |
| 03 | 4189697 | SUPPORT | |
| 04 | 8035749 | SUPPORT | |
| 08 | 8038910 | COVER | |
| 09 | 9728032 | COVER | |
| 10 | J901230 | BOLT | |
| 11 | A590912 | WASHER, SPRING | |
| 12 | A590112 | WASHER, PLANE | |
| 13 | J950012 | NUT | |
| 14 | 449490 | WASHER | |
| 15 | 7016988 | COVER | |
| 16 | 7018348 | COVER | |
| 17 | 4203445 | PLATE | |
| 18 | 8038383 | COVER | |
| 21 | 4202172 | BRACKET | |
| 22 | 4147883 | STOPPER | |
| 24 | J901225 | BOLT | |
| 25 | A590112 | WASHER, PLANE | |
| 26 | J901022 | BOLT | |
| 27 | A590910 | WASHER, SPRING | |
| 28 | J217083 | WASHER | |
| 29 | A590120 | WASHER | |
| 30 | A590912 | WASHER, SPRING | |
| 31 | J952010 | NUT | |
| 33 | 6007849 | DOOR | |
| 33A | 7017862 | DOOR LOCK | |
| 35 | J950012 | NUT | |
| 36 | A590912 | WASHER, SPRING | |
| 37 | 4188492 | STOPPER | |
| 38 | J901230 | BOLT | |
| 38 | J021230 | BOLT, SEMS | |
| 41 | 3037786 | BRACKET | |
| 42 | J900814 | BOLT | |
| 43 | A590908 | WASHER, SPRING | |
| 44 | А590108 | WASHER, PLANE | |
| 81 | 9728476 | SUPPORT | |
| 81 | 9728640 | SUPPORT | |
| 82 | J901225 | BOLT | |
| 83 | А590912 | WASHER, SPRING | |
| 84 | А590112 | WASHER, PLANE | |
| 85 | 4073519 | TAPE 150X400 | |
| 86 | 4121128 | TAPE 150X200 |
