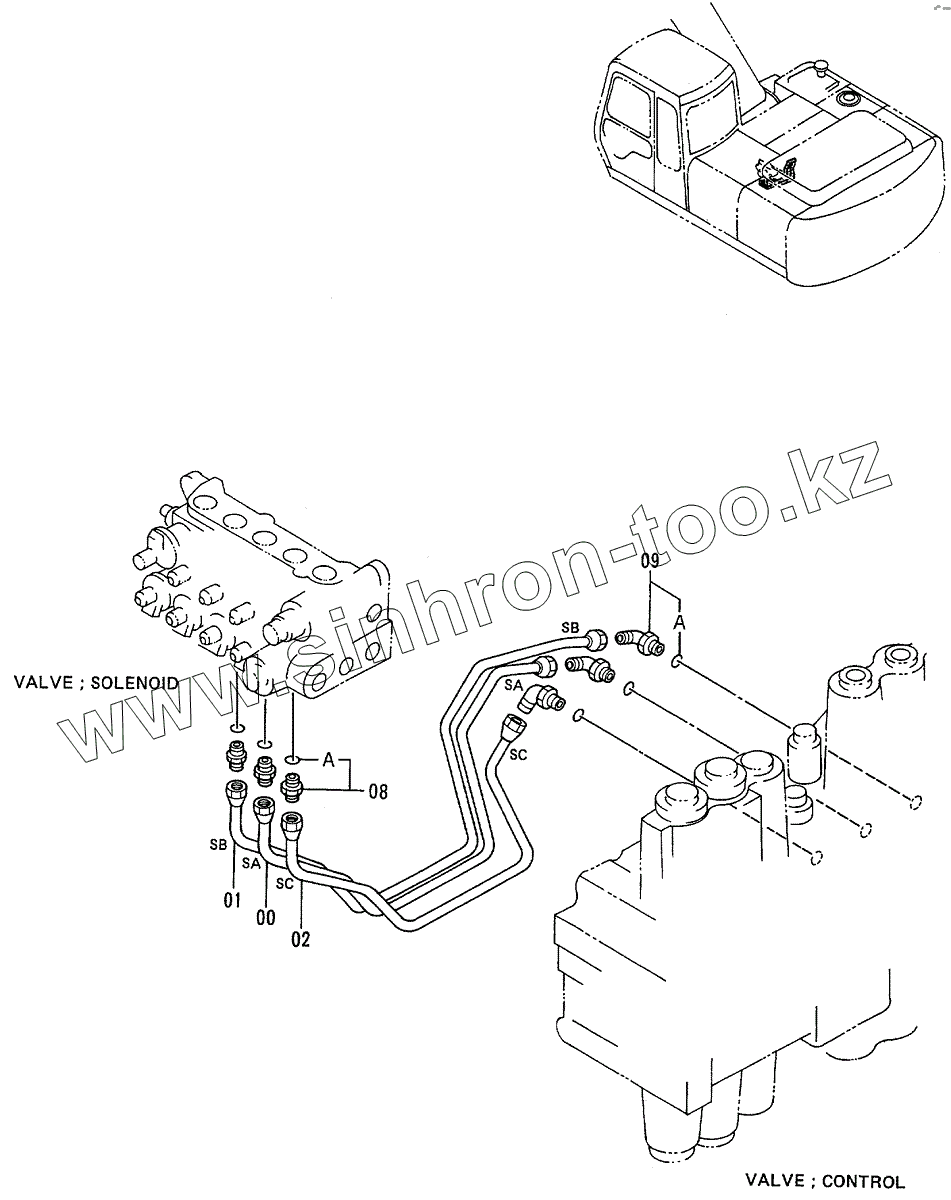

Каталог запасных частей к технике: Hitachi EX-200-3. PILOT PIPINGS (2-1)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME COUNTERWEIGHT ENGINE RADIATOR RESERVE TANK AIR CLEANER MUFFLER FUEL PIPINGS FUEL TANK FUEL FEED PUMP (OPTION) FUEL DOUBLE FILTER (OPTION) PUMP DEVICE SWING DEVICE OIL TANK, 78001~84672 OIL TANK, 84673~ OIL COOLER PIPINGS (1) OIL COOLER PIPINGS (2) OIL COOLER PIPINGS (3) OIL COOLER PIPINGS (4) MAIN PIPINGS (1), 78001~78018 MAIN PIPINGS (1), 78019~ MAIN PIPINGS (2) MAIN PIPINGS (3) MAIN PIPINGS (4) SWING PIPINGS ENGINE CONTROL MOTOR ENGINE CONTROL CABLE ENGINE CONTROL LEVER (OPTION) CONTROL LEVER (1) CONTROL LEVER (2), STD: 78001~82322, LC: 78001~82367 CONTROL LEVER (2), STD: 82323~, LC: 82368~ CONTROL LEVER (3) PILOT PIPINGS (1-1) PILOT PIPINGS (1-2) <STD> PILOT PIPINGS (1-2) <USA> PILOT PIPINGS (1-3) PILOT PIPINGS (2-1) PILOT PIPINGS (2-2) PILOT PIPINGS (2-3) PILOT PIPINGS (3-1) PILOT PIPINGS (3-2) PILOT PIPINGS (3-3) PILOT PIPINGS (4-1) PILOT PIPINGS (4-2) PILOT PIPINGS (5-1) <STD> PILOT PIPINGS (5-1) <USA> PILOT PIPINGS (5-2) <STD> PILOT PIPINGS (5-2) <USA> PILOT PIPINGS (6-1) PILOT PIPINGS (6-2) CONSOLE (R) CONSOLE (L) <STD> CONSOLE (L) <USA> SWITCH BOX GAUGE PANEL RADIO <STD> RADIO <USA> ELECTRIC PARTS (1) ELECTRIC PARTS (2) <STD> ELECTRIC PARTS (2) <USA> ELECTRIC PARTS (3-1) ELECTRIC PARTS (3-2) ELECTRIC PARTS (3-3) ELECTRIC PARTS (3-4) MOTION ALARM <USA> WINDOW WASHER, STD: 78001~85032, LC: 78001~85386 WINDOW WASHER, STD: 85003~, LC: 85387~ CAR HEATER, STD: 78001~78902, LC: 78001~78875 CAR HEATER, STD: 78903~85473, LC: 78876~85473 CAR HEATER, 85747~ CAR HEATER PARTS, STD: 78001~78902, LC: 78001~78875 CAR HEATER PARTS, STD: 78903~85473, LC: 78867~85473 CAR HEATER PARTS, 85747~ HEATER PIPINGS CAB GROUP (1) CAB GROUP (2) REARVIEW MIRROR CAB <200, LC> CAB <200H, LCH> CAB (1) CAB (2) CAB (3) CAB (4) CAB (5) CAB (6) REAR COVER (INSIDE OF CAB) FLOOR PARTS SEAT <STD> SEAT <USA> SEAT SUSPENSION <STD> SEAT SUSPENSION <USA> SEAT BELT COVER (1-1) COVER (1-2) COVER (1-3), 78001~84672 COVER (1-3), 85673~ COVER (1-4) COVER (1-5) COVER (1-6) COVER (1-7) COVER (2) <200, LC> COVER (2) <200H, LCH> DOOR LOCK (1) DOOR LOCK (2) DOOR LOCK (3) TRACKFRAME <200>, 78001~85184 TRACKFRAME <200>, 85185~ TRACK FRAME <200 LC>, 78001~85386 TRACK FRAME <200 LC>, 85387~ TRACK FRAME <200H>, 78001~84671 TRACK FRAME <200H>, 84672~ TRACK FRAME <200LCH>, 78001~84671 TRACK FRAME <200LCH>, 84672~ STEP <200H, LCH>, 84672~ SWING BEARING TRAVEL DEVICE FRONT IDLER ADJUSTER UPPER ROLLER, 78001~83807 UPPER ROLLER, 83808~ LOWER ROLLER (STD. TRACK) LOWER ROLLER (LC TRACK) TRACK-LINK 600G <200> TRACK-LINK 600G <200LC> TRACK-LINK 600G <200H> TRACK-LINK 600G <200LCH> CENTER JOINT TRAVEL PIPINGS (STD. TRACK) TRAVEL PIPINGS (LC TRACK) TRAVEL PIPINGS COVER, STD: 78001~85184, LC: 78001~85386 TRAVEL PIPINGS COVER, STD: 85185~, LC: 85387~ BOOM H BOOM STD. ARM 2.91M H ARM 2.91M BUCKET 0.8 <JIS 94> H BUCKET 0.8 <JIS 94> FRONT PIPINGS (1) FRONT PIPINGS (2) LUBRICATE PIPINGS PILOT PIPINGS <TYPE 15> BOOM <TYPE 15> ARM <TYPE 15> BUCKET 0.4 <JIS 94> BUCKET 0.48 <JIS 94> DITCH CLEANING BUCKET 0.48 <JIS 94> (WITHOUT POINTS) DITCH CLEANING BUCKET 0.48 <JIS 94> (WITHOUT POINTS) FRONT PIPINGS (1) <TYPE 15> FRONT PIPINGS (2) <TYPE 15> LUBRICATE PIPINGS (1) <TYPE 15> LUBRICATE PIPINGS (2) <TYPE 15> MULTI LEVER PIPINGS (1) MULTI LEVER PIPINGS (2) MULTI LEVER PIPINGS (3) MULTI LEVER PIPINGS (4) AIR CONDITIONER (1), 78001~79275 AIR CONDITIONER (1), 79276~ AIR CONDITIONER (2) PRESSURE TYPE AIR-CON. PARTS AIR-CON. UNIT AIR—CON. CONTROLLER (STD. Type), 78001~81690 AIR—CON. CONTROLLER (STD. Type), 81691~ AIR—CON. CONTROLLER (PRESSURE Type), 78001~D94/10 AIR—CON. CONTROLLER (PRESSURE Type), D94/11~ HOT & COOL BOX TROPICAL COVER WINDOW GUARD <USA> TRACK-LINK 700G <200> TRACK-LINK 700G <200LC> TRACK-LINK 800G <200> TRACK—LINK 800G <200LC> TRACK-LINK 600F <200> TRACK-LINK 600F <200LC> TRACK-LINK 900A <200> TRACK-LINK 900A <200LC> TRACK—LINK 600GP (RUBBER PAD) <200> TRACK-LINK 600GP (RUBBER PAD) <200LC> SHORT ARM 2.22M FRONT PIPINGS (2) <SHORT ARM> BUCKET—HOOK PARTS BUCKET 0.51 <JIS 94> BUCKET 0.91 <JIS 94> BUCKET 1.1 <JIS 94> BUCKET 1.2 <JIS 94> RIPPER BUCKET 0.6 <JIS 94> ONE-POINT RIPPER SLOPE—FINISHING BLADE CLAMSHELL BUCKET (1) CLAMSHELL BUCKET (2) CLAMSHELL BUCKET (3) CLAMSHELL PIPINGS HOSE RUPTURE VALVE PIPINGS (BOOM):1 HOSE RUPTURE VALVE PIPINGS (BOOM):2 HOSE RUPTURE VALVE PIPINGS (BOOM):3 HOSE RUPTURE VALVE PIPINGS (ARM):1 HOSE RUPTURE VALVE PIPINGS (ARM):2 HOSE RUPTURE VALVE PIPINGS (ARM):3 CONTROL PEDAL (BREAKER & CRUSHER) PILOT PIPINGS (BREAKER & CRUSHER) MAIN PIPINGS FOR BREAKER & CRUSHER FRONT PIPINGS FOR BREAKER & CRUSHER PIPINGS FOR NPK BREAKER PIPINGS FOR NPK BREAKER & CRUSHER PIPINGS FOR OKADA/FURUKAWA BREAKER PIPINGS FOR OKADA/FURUKAWA BREAKER & CRUSHER TOOLS SPARE PARTS, 78001~D94/11 NAME-PLATE (JAPANESE) <STD> NAME-PLATE (ENGLISH) <STD> NAME-PLATE (ENGLISH) <USA>

00

01

02

08

08A

09

09A

Позиция на иллюстрации	Заводской номер детали		Название детали
00	3067636		PIPE
01	3067637		PIPE
02	3067638		PIPE
08	4255304		FITTING, PIPE
08A	957366		O-RING
09	4293950		ELBOW, S
09A	957366		O-RING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
