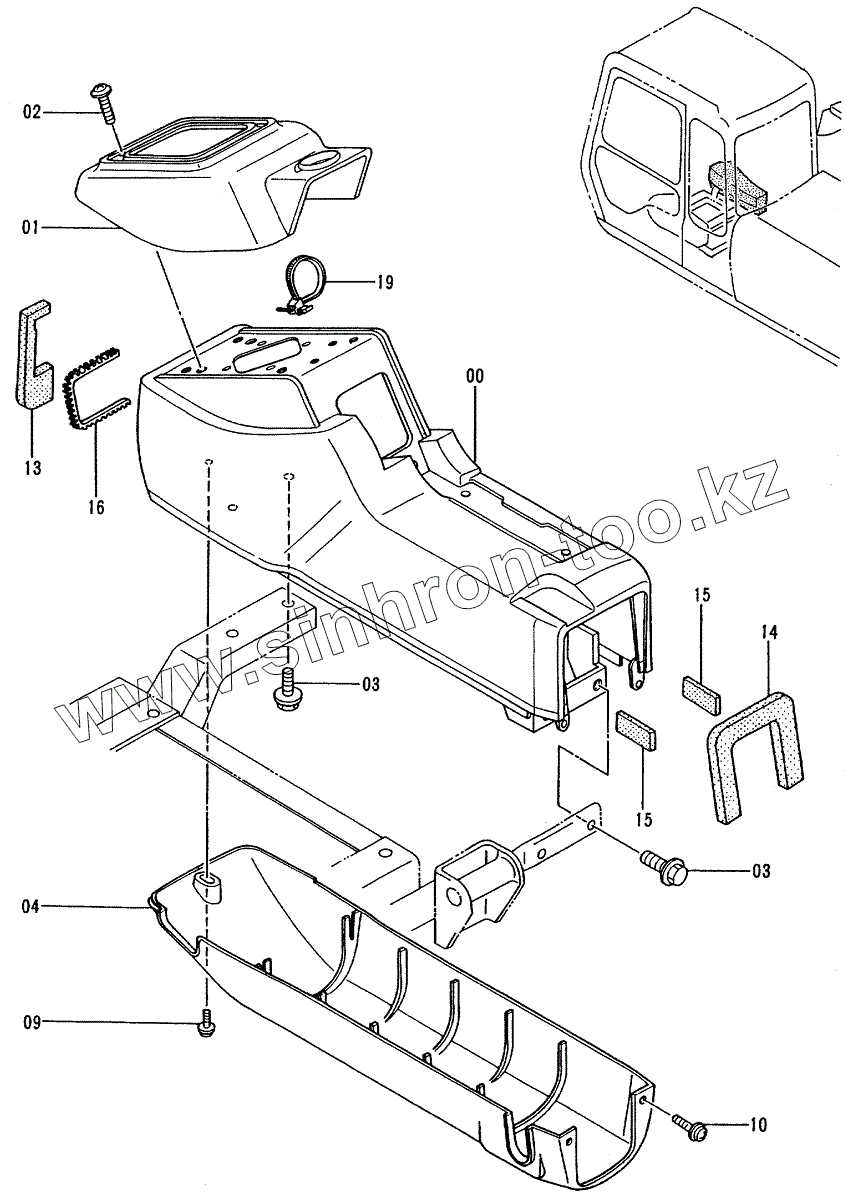

5004145
1
2
3
3
4
9
10
13
14
15
15
16
19
Позиция на иллюстрации
Заводской номер детали
Название детали
5004145
5004145
STAND
1
1015022
COVER
2
J460635
SCREW, SEMS
3
J011030
BOLT, SEMS
4
1015021
COVER
9
J680625
SCREW, SEMS
10
J680614
SCREW, SEMS
13
4287918
RUBBER
14
4289705
RUBBER
15
4289706
RUBBER
16
4289707
BUSHING
19
4300351
CLIP, BAND
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
